Representative photo. Please check item description for details.

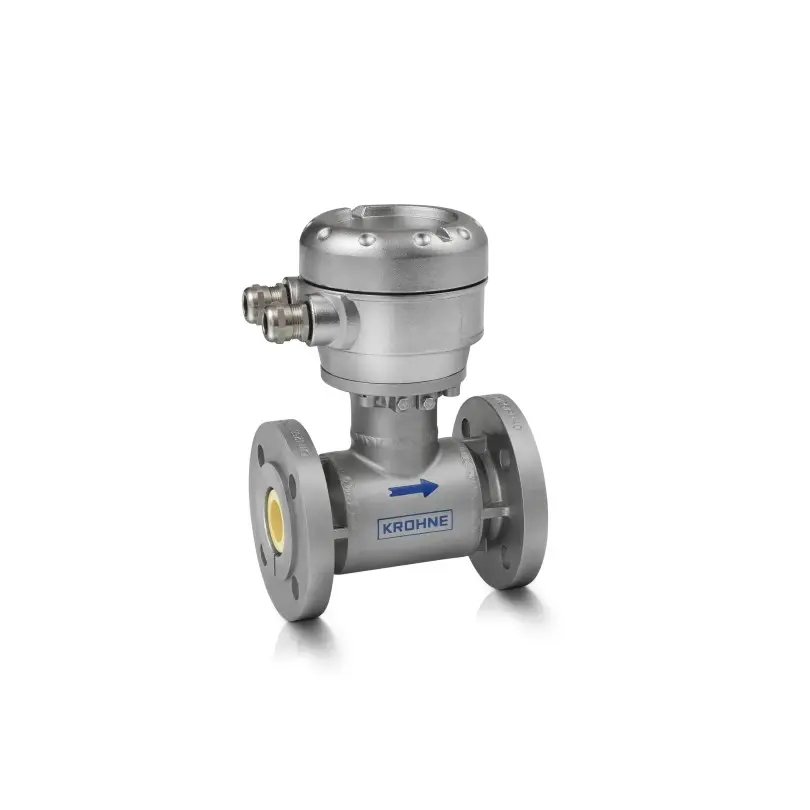

KROHNE Optiflux 5000FL Advanced, Ceramic Electromagnetic Flow Sensor - Flanged
The OPTIFLUX 5000 electromagnetic flowmeter provides the optimum in accuracy,
repeatability and long term stability. This is achieved with a special tube design from high-tech
ceramic zirconium oxide. Leading metrological institutes reflect this as they frequently use the
OPTIFLUX 5000 as their master meter.
By implementing oxide ceramics, KROHNE is using a technically superior
material for electromagnetic flowmeters (EMF) and pressure measuring
devices that is permanently resistant to corrosive and abrasive media.
Additionally, ceramic is immune to temperature shocks and absolutely safe
against gas discharge and leaks – all in all a unique combination for
high-performance applications in all industrial sectors.
The OPTIFLUX 5000 electromagnetic flowmeter provides the optimum in accuracy,
repeatability and long term stability. This is achieved with a special tube design from high-tech
ceramic zirconium oxide. Leading metrological institutes reflect this as they frequently use the
OPTIFLUX 5000 as their master meter.
By implementing oxide ceramics, KROHNE is using a technically superior
material for electromagnetic flowmeters (EMF) and pressure measuring
devices that is permanently resistant to corrosive and abrasive media.
Additionally, ceramic is immune to temperature shocks and absolutely safe
against gas discharge and leaks – all in all a unique combination for
high-performance applications in all industrial sectors.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Nominal Diameter | [VN2442] DN 15 | 1/2", [VN2444] DN 25 | 1", [VN2446] DN 40 | 1-1/2", [VN2447] DN 50 | 2", [VN244A] DN 80 | 3", [VN244B] DN 100 | 4", [VN204H] DN 150 | 6", [VN204K] DN 200 | 8", [VN204L] DN 250 | 10", [VN204M] DN 200 | 12" |
| Nominal Pressure | [A] 150 lb RF ASME B 16.5, [A] 150 lb FF ASME B 16.5, [B] 1/2" 300 lb RF ASME B 16.5, [B] 1" 300 lb RF ASME B 16.5, [B] 2" 300 lb RF ASME B 16.5, [B] 3" 300 lb RF ASME B 16.5 |
| Ex-Approvals | [0] non-Ex, [5] FM Class 1 DIV 2, [A] cCSAus OL, [C] CSA Class 1 DIV 2 |
| System Design | [1] Compact Converter, [2] Compact Converter w/ Heavy Duty Neck for SS Converters, [4] Remote Converter w/ Aluminum Connection Box - 1/2" NPT, [6] Remote Converter w/ Aluminum Connection Box - M20 x 1.5, [A] Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, [C] Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5 |
| Converter Model | [C] IFC 300C - Compact Mount, [D] IFC 300F - Field Mount, [E] IFC 300W - Wall Mount, [F] IFC 300R - Rack Mount, [3] IFC 100C - Compact Mount, [4] IFC 100W - Wall Mount |
| Lining | [0] ZrO2 Ceramic with Cermet, [M] Ceramic with Cermet (ZrO2 - FZM) |
| Electrodes | [01] Cermet - Platinum, [71] Cermet - Platinum |
| Housing / Flange Material | [0] SS DIN 1.4404|316L / SS DIN 1.4408, [5] Steel / Cast Steel GS 45 N |
| Protection Class | [0] IP66/67, [2] IP68 Factory |
| Cable Length | [00] Compact - None, [00] 5m|15ft DS Signal + LIYCY Coil Power Cable, [01] 10m|30ft DS Signal + LIYCY Coil Power Cable, [02] 15m|45ft DS Signal + LIYCY Coil Power Cable, [03] 20m|60ft DS Signal + LIYCY Coil Power Cable, [04] 25m|75ft DS Signal + LIYCY Coil Power Cable, [05] 30m|90ft DS Signal + LIYCY Coil Power Cable, [06] 40m|120ft DS Signal + LIYCY Coil Power Cable, [07] 50m|150ft DS Signal + LIYCY Coil Power Cable, [08] 100m|300ft DS Signal + LIYCY Coil Power Cable, [00] 5m|15ft DS Signal, [01] 10m|30ft DS Signal, [02] 15m|45ft DS Signal, [03] 20m|60ft DS Signal, [04] 25m|75ft DS Signal, [05] 30m|90ft DS Signal, [06] 40m|120ft DS Signal, [07] 50m|150ft DS Signal, [08] 100m|300ft DS Signal |
| Calibration | [0] Standard, [2] Standard + 316|1.4401 Tagplate (120 x 46mm), [3] Standard + 316|1.4401 Tagplate (67 x 25mm), [A] Custody Transfer, [C] Custody Transfer + 316|1.4401 Tagplate (120 x 46mm), [D] Custody Transfer + 316|1.4401 Tagplate (67 x 25mm), [H] 3 points with Water acc. ISO/IEC 17025 2 |
| Ring | Sealing Type - Material | [000000000] without | Ring - PTFE, White, [800000000] without | L-Type - Filled PTFE, Blue - 1/2", [U00000000] without | Gaskets - Gylon 3504 - 1/2", [V00000000] without | Ring - Conductive PTFE, Grey - 1/2", [800000000] without | L-Type - Filled PTFE, Blue - 1", [U00000000] without | Gaskets - Gylon 3504 - 1", [V00000000] without | Ring - Conductive PTFE, Grey - 1", [800000000] without | L-Type - Filled PTFE, Blue - 1-1/2", [U00000000] without | Gaskets - Gylon 3504 - 1-1/2", [V00000000] without | Ring - Conductive PTFE, Grey - 1-1/2", [800000000] without | L-Type - Filled PTFE, Blue - 2", [U00000000] without | Gaskets - Gylon 3504 - 2", [V00000000] without | Ring - Conductive PTFE, Grey - 2", [800000000] without | L-Type - Filled PTFE, Blue - 3", [U00000000] without | Gaskets - Gylon 3504 - 3", [V00000000] without | Ring - Conductive PTFE, Grey - 3", [800000000] without | L-Type - Filled PTFE, Blue - 4", [U00000000] without | Gaskets - Gylon 3504 - 4", [V00000000] without | Ring - Conductive PTFE, Grey - 4", [000000000] Sealing Ring | Ring - PTFE, White - 6", [600000000] Sealing + Spacer Ring | Rings - PTFE, White + 1.4404|316L - 6", [700000000] Sealing + Spacer Ring | Rings - PTFE, White + HC22 - 6", [800000000] L-Type Sealing Ring | Ring - Filled PTFE, Blue - 6", [000000000] Sealing Ring | Ring - PTFE, White - 8", [600000000] Sealing + Spacer Ring | Rings - PTFE, White + 1.4404|316L - 8", [800000000] L-Type Sealing Ring | Ring - Filled PTFE, Blue - 8", [000000000] Sealing Ring | Ring - PTFE, White - 10", [600000000] Sealing + Spacer Ring | Rings - PTFE, White + 1.4404|316L - 10", [800000000] L-Type Sealing Ring | Ring - Filled PTFE, Blue - 10", [000000000] Sealing Ring | Ring - PTFE, White - 12", [600000000] Sealing + Spacer Ring | Rings - PTFE, White + 1.4404|316L - 12", [800000000] L-Type Sealing Ring | Ring - Filled PTFE, Blue - 12" |
