KROHNE Optiflux 4000 Industrial Electromagnetic Flow Sensor - VN034

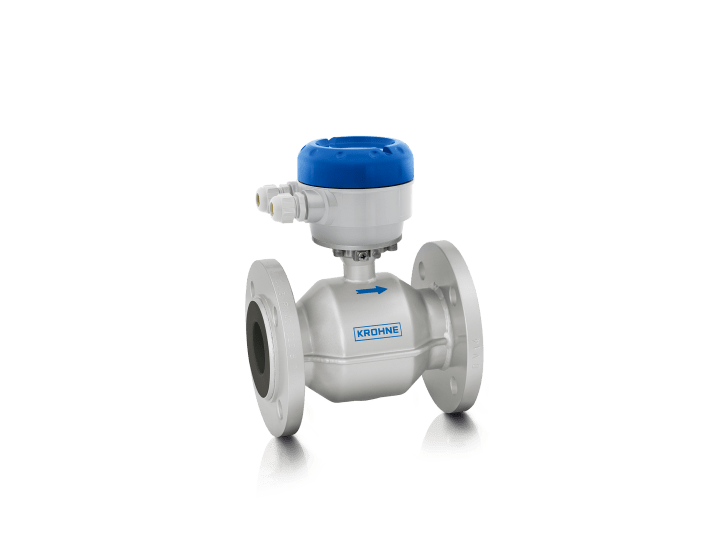

Representative photo. Please check item description for details.

KROHNE Optiflux 4000 Industrial Electromagnetic Flow Sensor - VN034

https://www.branom.com/web/image/product.template/550373/image_1920?unique=c26756c
(0 review)

The OPTIFLUX 4000 is an electromagnetic flow sensor. Combined with the IFC 050, IFC 100, IFC 300 or IFC 400 signal converters it forms the OPTIFLUX 4050, OPTIFLUX 4100, OPTIFLUX 4300 and OPTIFLUX 4400 electromagnetic flowmeters for basic to advanced applications with aggressive and abrasive media or other conductive liquids.


Features

  • Full bore design: pipe cross-section without restrictions
  • Connection sizes: DN2.5…3000 / ⅒…120" (depending on signal converter)
  • Liner: PTFE, PFA, ETFE, PU, hard and soft rubber

  • Nominal Diameter
  • Nominal Pressure
  • Ex-Approvals
  • System Design
  • Converter Model
  • Lining
  • Electrodes
  • Housing / Flange Material
  • Protection Class
  • Cable Length
  • Calibration
  • Grounding Ring
  • Finish

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

The OPTIFLUX 4000 is an electromagnetic flow sensor. Combined with the IFC 050, IFC 100, IFC 300 or IFC 400 signal converters it forms the OPTIFLUX 4050, OPTIFLUX 4100, OPTIFLUX 4300 and OPTIFLUX 4400 electromagnetic flowmeters for basic to advanced applications with aggressive and abrasive media or other conductive liquids.


Features

  • Full bore design: pipe cross-section without restrictions
  • Connection sizes: DN2.5…3000 / ⅒…120" (depending on signal converter)
  • Liner: PTFE, PFA, ETFE, PU, hard and soft rubber

Specifications

Nominal Diameter [1] DN 10 | 3/8" (1/2" Flanges), [2] DN 15 | 1/2", [3] DN 20 | 3/4", [4] DN 25 | 1", [5] DN 32 | 1-1/4", [6] DN 40 | 1-1/2", [7] DN 50 | 2", [8] DN 65 | 2-1/2", [A] DN 80 | 3", [B] DN 100 | 4", [C] DN 125 | 5", [D] DN 150 | 6"
Nominal Pressure [A] 150 lb / ASME B 16.5, [B] 300 lb / ASME B 16.5
Ex-Approvals [0] non Ex, [4] CLASS I DIV 1, [5] FM CLASS I DIV 2, [A] cCSAus OL
System Design [1] Compact w/Std Neck (at Converter), [2] Compact w/Heavy Duty Neck (at Converter), [4] Separate w/Aluminum Connection Box (1/2" NPT), [6] Separate w/Aluminum Connection Box (M20 x 1.5), [A] Separate w/SS Connection Box (1/2" NPT), [C] Separate w/SS Connection Box (M20 x 1.5)
Converter Model [3] IFC 100 C (Compact), [4] IFC 100 W (Wall Mount), [C] IFC 300 C (Compact), [D] IFC 300 F (Field Mount), [E] IFC 300 W (Wall Mount), [F] IFC 300 R (Rack Mount), [K] IFC 050 C (Compact), [L] IFC 050 W (Wall Mount), [M] IFC 400 C (Compact), [N] IFC 400 F (Field Mount), [T] IFC 400 C-SIL (Compact), [U] IFC 400 F-SIL (Field Mount)
Lining [0] PFA, [0] PTFE, [2] PTFE - Provided for Protection Rings, [A] 2" | Soft Rubber | 6 mm, [P] 2" | Soft Rubber | 4 mm, [A] 2-1/2" | Soft Rubber | 6 mm, [P] 2-1/2" | Soft Rubber | 4 mm, [A] 3" | Soft Rubber | 6 mm, [P] 3" | Soft Rubber | 4 mm, [A] 4" | Soft Rubber | 6 mm, [P] 4" | Soft Rubber | 4 mm, [A] 5" | Soft Rubber | 6 mm, [P] 5" | Soft Rubber | 4 mm, [A] 6" | Soft Rubber | 6 mm, [P] 6" | Soft Rubber | 4 mm
Electrodes [B1] Hastelloy C22, [11] 316Ti SS, [21] 316 SS, [31] Hastelloy C4, [41] Hastelloy B, [51] Tantalum, [61] Titanium, [71] Platinum, [H1] Conductive Rubber, [K1] Low Noise WC | Base HC22, [V1] Low Noise WC | Base DIN
Housing / Flange Material [1] Steel / Carbon Steel (150 lb), [A] 304 SS / Carbon Steel (150 lb), [1] 1" Steel / Carbon Steel (300 lb), [3] 1" Steel / 316 L SS (150 lb), [C] 1" 304 SS / 316 L SS (150 lb), [C] 1" 304 SS / 316 L SS (300 lb), [1] 1-1/4" Steel / Carbon Steel (300 lb), [3] 1-1/4" Steel / 316 L SS (150 lb), [C] 1-1/4" 304 SS / 316 L SS (150 lb), [C] 1-1/4" 304 SS / 316 L SS (300 lb), [1] 1-1/2" Steel / Carbon Steel (300 lb), [3] 1-1/2" Steel / 316 L SS (150 lb), [C] 1-1/2" 304 SS / 316 L SS (150 lb), [C] 1-1/2" 304 SS / 316 L SS (300 lb), [1] 2" Steel / Carbon Steel (300 lb), [3] 2" Steel / 316 L SS (150 lb), [C] 2" 304 SS / 316 L SS (150 lb), [C] 2" 304 SS / 316 L SS (300 lb), [1] 2-1/2" Steel / Carbon Steel (300 lb), [3] 2-1/2" Steel / 316 L SS (150 lb), [C] 2-1/2" 304 SS / 316 L SS (150 lb), [C] 2-1/2" 304 SS / 316 L SS (300 lb), [1] 3" Steel / Carbon Steel (300 lb), [3] 3" Steel / 316 L SS (150 lb), [C] 3" 304 SS / 316 L SS (150 lb), [C] 3" 304 SS / 316 L SS (300 lb), [1] 4" Steel / Carbon Steel (300 lb), [3] 4" Steel / 316 L SS (150 lb), [C] 4" 304 SS / 316 L SS (150 lb), [C] 4" 304 SS / 316 L SS (300 lb), [1] 5" Steel / Carbon Steel (300 lb), [3] 5" Steel / 316 L SS (150 lb), [C] 5" 304 SS / 316 L SS (150 lb), [C] 5" 304 SS / 316 L SS (300 lb), [1] 6" Steel / Carbon Steel (300 lb), [3] 6" Steel / 316 L SS (150 lb), [C] 6" 304 SS / 316 L SS (150 lb), [C] 6" 304 SS / 316 L SS (300 lb), [V] 3/8" Duplex, Steel / 304 SS (150 lb), [V] 3/8" Duplex, Steel / 304 SS (300 lb), [W] 3/8" Duplex, Steel / 316L SS (150 lb), [W] 3/8" Duplex, Steel / 316L SS (300 lb), [U] 1/2" Duplex, Steel / Carbon Steel (150 lb), [U] 1/2" Duplex, Steel / Carbon Steel (300 lb), [V] 1/2" Duplex, Steel / 304 SS (150 lb), [V] 1/2" Duplex, Steel / 304 SS (300 lb), [W] 1/2" Duplex, Steel / 316L SS (150 lb), [W] 1/2" Duplex, Steel / 316L SS (300 lb), [U] 3/4" Duplex, Steel / Carbon Steel (150 lb), [U] 3/4" Duplex, Steel / Carbon Steel (300 lb), [V] 3/4" Duplex, Steel / 304 SS (150 lb), [V] 3/4" Duplex, Steel / 304 SS (300 lb), [W] 3/4" Duplex, Steel / 316L SS (150 lb), [W] 3/4" Duplex, Steel / 316L SS (300 lb)
Protection Class [0] IP 66/67, [2] IP 68 Factory, [3] IP 66/67 | ISO Length, [5] IP 68 Factory | ISO Length
Cable Length [00] Compact - None, [00] 5m | 15 ft DS Signal + LIYCY Coil Power Cable, [01] 10m | 30 ft DS Signal + LIYCY Coil Power Cable, [02] 15m | 45 ft DS Signal + LIYCY Coil Power Cable, [03] 20m | 60 ft DS Signal + LIYCY Coil Power Cable, [04] 25m | 75 ft DS Signal + LIYCY Coil Power Cable, [05] 30m | 90 ft DS Signal + LIYCY Coil Power Cable, [06] 40m | 120 ft DS Signal + LIYCY Coil Power Cable, [07] 50m | 150 ft DS Signal + LIYCY Coil Power Cable, [08] 100m | 300 ft DS Signal + LIYCY Coil Power Cable, [00] 5m | 15 ft DS Signal Cable, [01] 10m | 30 ft DS Signal Cable, [02] 15m | 45 ft DS Signal Cable, [03] 20m | 60 ft DS Signal Cable, [04] 25m | 75 ft DS Signal Cable, [05] 30m | 90 ft DS Signal Cable, [06] 40m | 120 ft DS Signal Cable, [07] 50m | 150 ft DS Signal Cable, [08] 100m | 300 ft DS Signal Cable
Calibration [0] Standard, [2] Standard + 316L SS Tagplate (120 x 46 mm), [3] Standard + 316L SS Tagplate (67 x 25 mm), [A] Custody Transfer, [C] CT + 316L SS Tagplate (120 x 46 mm), [D] CT + 316L SS Tagplate (67 x 25 mm), [H] 3 Points w/Water (Acc. to ISO/IEC 17025 2), [R] Extended Calibration, [S] Extended Calibration + 316L SS tagplate (120 x 46 mm), [T] Extended Calibration + 316L SS tagplate (67 x 25 mm), [U] Custody Transfer MI-004 | Module ID, [V] MI-004 + 316 SS Tagplate (120 x 46 mm)
Grounding Ring [0] Without, [6] 3/8" to 3/4" Ring #1 / Stainless Steel (150 lb) (x2), [4] 3/8" Ring #1 / Tantalum (150 lb) (x2), [5] 3/8" Ring #1 / Titanium (150 lb) (x2), [7] 3/8" Ring #1 / Hastelloy C22 (150 lb) (x2), [M] 3/8" Protection Ring #2 / Tantalum (150lb) (x2), [N] 3/8" Protection Ring #2 / Titanium (150lb) (x2), [P] 3/8" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 3/8" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 3/8" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [4] 1/2" Ring #1 / Tantalum (150 lb) (x2), [5] 1/2" Ring #1 / Titanium (150 lb) (x2), [7] 1/2" Ring #1 / Hastelloy C22 (150 lb) (x2), [M] 1/2" Protection Ring #2 / Tantalum (150lb) (x2), [N] 1/2" Protection Ring #2 / Titanium (150lb) (x2), [P] 1/2" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 1/2" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 1/2" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [4] 3/4" Ring #1 / Tantalum (150 lb) (x2), [5] 3/4" Ring #1 / Titanium (150 lb) (x2), [7] 3/4" Ring #1 / Hastelloy C22 (150 lb) (x2), [M] 3/4" Protection Ring #2 / Tantalum (150lb) (x2), [N] 3/4" Protection Ring #2 / Titanium (150lb) (x2), [P] 3/4" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 3/4" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 3/4" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 1" Ring #1 / Stainless Steel (150 lb) (x2), [6] 1" Ring #1 / Stainless Steel (300 lb) (x2), [4] 1" Ring #1 / Tantalum (150 lb) (x2), [5] 1" Ring #1 / Titanium (150 lb) (x2), [7] 1" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 1" Protection Ring #2 / Titanium (150lb) (x2), [P] 1" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 1" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 1" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 1-1/4" Ring #1 / Stainless Steel (150 lb) (x2), [6] 1-1/4" Ring #1 / Stainless Steel (300 lb) (x2), [4] 1-1/4" Ring #1 / Tantalum (150 lb) (x2), [5] 1-1/4" Ring #1 / Titanium (150 lb) (x2), [7] 1-1/4" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 1-1/4" Protection Ring #2 / Titanium (150lb) (x2), [P] 1-1/4" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 1-1/4" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 1-1/4" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 1-1/2" Ring #1 / Stainless Steel (150 lb) (x2), [6] 1-1/2" Ring #1 / Stainless Steel (300 lb) (x2), [4] 1-1/2" Ring #1 / Tantalum (150 lb) (x2), [5] 1-1/2" Ring #1 / Titanium (150 lb) (x2), [7] 1-1/2" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 1-1/2" Protection Ring #2 / Titanium (150lb) (x2), [P] 1-1/2" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 1-1/2" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 1-1/2" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 2" Ring #1 / Stainless Steel (150 lb) (x2), [6] 2" Ring #1 / Stainless Steel (300 lb) (x2), [4] 2" Ring #1 / Tantalum (150 lb) (x2), [5] 2" Ring #1 / Titanium (150 lb) (x2), [7] 2" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 2" Protection Ring #2 / Titanium (150lb) (x2), [P] 2" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 2" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 2" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 2-1/2" Ring #1 / Stainless Steel (150 lb) (x2), [6] 2-1/2" Ring #1 / Stainless Steel (300 lb) (x2), [4] 2-1/2" Ring #1 / Tantalum (150 lb) (x2), [5] 2-1/2" Ring #1 / Titanium (150 lb) (x2), [7] 2-1/2" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 2-1/2" Protection Ring #2 / Titanium (150lb) (x2), [P] 2-1/2" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 2-1/2" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 2-1/2" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 3" Ring #1 / Stainless Steel (150 lb) (x2), [6] 3" Ring #1 / Stainless Steel (300 lb) (x2), [4] 3" Ring #1 / Tantalum (150 lb) (x2), [5] 3" Ring #1 / Titanium (150 lb) (x2), [7] 3" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 3" Protection Ring #2 / Titanium (150lb) (x2), [P] 3" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 3" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 3" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 4" Ring #1 / Stainless Steel (150 lb) (x2), [6] 4" Ring #1 / Stainless Steel (300 lb) (x2), [4] 4" Ring #1 / Tantalum (150 lb) (x2), [5] 4" Ring #1 / Titanium (150 lb) (x2), [7] 4" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 4" Protection Ring #2 / Titanium (150lb) (x2), [P] 4" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 4" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 4" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 5" Ring #1 / Stainless Steel (150 lb) (x2), [6] 5" Ring #1 / Stainless Steel (300 lb) (x2), [4] 5" Ring #1 / Tantalum (150 lb) (x2), [5] 5" Ring #1 / Titanium (150 lb) (x2), [7] 5" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 5" Protection Ring #2 / Titanium (150lb) (x2), [P] 5" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 5" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 5" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 6" Ring #1 / Stainless Steel (150 lb) (x2), [6] 6" Ring #1 / Stainless Steel (300 lb) (x2), [4] 6" Ring #1 / Tantalum (150 lb) (x2), [5] 6" Ring #1 / Titanium (150 lb) (x2), [7] 6" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 6" Protection Ring #2 / Titanium (150lb) (x2), [P] 6" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 6" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 6" Protection Ring #2 / Hastelloy C22 (150lb) (x2)
Finish [000000000] Standard, [300000000] 1" Offshore, [300000000] 1-1/4" Offshore, [300000000] 1-1/2" Offshore, [300000000] 2" Offshore, [300000000] 2-1/2" Offshore, [300000000] 3" Offshore, [300000000] 4" Offshore, [300000000] 5" Offshore, [300000000] 6" Offshore
