Representative photo. Please check item description for details.

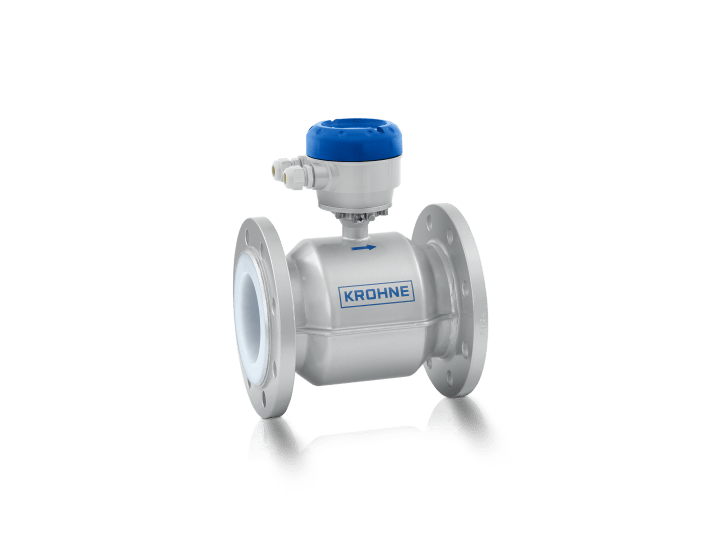

KROHNE Optiflux 2000 Water/Wastewater Electromagnetic Flow Sensor - VN154
Electromagnetic Flow Sensor
- For all water and wastewater applications
- Wide range of approvals for potable water
- Robust, fully welded construction with full bore pipe
Features
- Rugged liners suitable for any water and wastewater application
- Proven and unsurpassed lifetime, huge installed base
- Tamper proof, fully welded construction, also available in customer specific constructions
- Drinking water approvals including KTW, KIWA, DVGW, ACS, NSF, WRAS
- Suitable for subsoil installation and constant flooding (IP68)
- Bi-directional flow metering
- Compliant with requirements for custody transfer (MID MI-001, OIML R49, ISO 4064, EN 14154)
- Standard in house wet calibration of flow sensors up to diameter DN3000
- Easy installation and commissioning
- No grounding rings with virtual reference option on IFC 300
- In-situ verification with OPTICHECK
- Extensive diagnostic capabilities
- Maintenance-free
Electromagnetic Flow Sensor
- For all water and wastewater applications
- Wide range of approvals for potable water
- Robust, fully welded construction with full bore pipe
Features
- Rugged liners suitable for any water and wastewater application
- Proven and unsurpassed lifetime, huge installed base
- Tamper proof, fully welded construction, also available in customer specific constructions
- Drinking water approvals including KTW, KIWA, DVGW, ACS, NSF, WRAS
- Suitable for subsoil installation and constant flooding (IP68)
- Bi-directional flow metering
- Compliant with requirements for custody transfer (MID MI-001, OIML R49, ISO 4064, EN 14154)
- Standard in house wet calibration of flow sensors up to diameter DN3000
- Easy installation and commissioning
- No grounding rings with virtual reference option on IFC 300
- In-situ verification with OPTICHECK
- Extensive diagnostic capabilities
- Maintenance-free
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Nominal Diameter | [E] DN 200 | 8 in, [F] DN 250 | 10 in, [G] DN 300 | 12 in, [H] DN 350 | 14 in, [K] DN 400 | 16 in, [L] DN 450 | 18 in, [M] DN 500 | 20 in, [N] DN 600 | 24 in |
| Nominal Pressure | [A] 150 lb / ASME B 16.5, [B] 300 lb / ASME B 16.5 |
| Ex-Approvals | [0] non Ex, [5] FM CLASS I DIV 2, [A] cCSAus OL, [C] CSA Class I DIV 2 |
| System Design | [1] Compact w/Std Neck (at Converter), [2] Compact w/Heavy Duty Neck (at Converter), [4] Separate w/Aluminum Connection Box (1/2" NPT), [6] Separate w/Aluminum Connection Box (M20 x 1.5), [A] Separate w/SS Connection Box (1/2" NPT), [C] Separate w/SS Connection Box (M20 x 1.5) |
| Converter Model | [3] IFC 100 C (Compact), [4] IFC 100 W (Wall Mount), [C] IFC 300 C (Compact), [D] IFC 300 F (Field Mount), [E] IFC 300 W (Wall Mount), [F] IFC 300 R (Rack Mount), [K] IFC 050 C (Compact), [L] IFC 050 W (Wall Mount) |
| Lining | [0] Hard Rubber, [7] 8" Hard Rubber H10005 (Potable Water Approvals), [7] 10" Hard Rubber H10005 (Potable Water Approvals), [7] 12" Hard Rubber H10005 (Potable Water Approvals), [7] 14" Hard Rubber H10005 (Potable Water Approvals), [7] 16" Hard Rubber H10005 (Potable Water Approvals), [7] 18" Hard Rubber H10005 (Potable Water Approvals), [7] 20" Hard Rubber H10005 (Potable Water Approvals), [7] 24" Hard Rubber H10005 (Potable Water Approvals) |
| Electrodes | [B1] Hastelloy C22, [11] 316Ti SS, [31] Hastelloy C4, [61] Titanium |
| Housing / Flange Material | [1] 8" Steel / Carbon Steel (150 lb), [1] 8" Steel / Carbon Steel (300 lb), [3] 8" Steel / 316 L SS (150 lb), [3] 8" Steel / 316 L SS (300 lb), [1] 10" Steel / Carbon Steel (150 lb), [1] 10" Steel / Carbon Steel (300 lb), [3] 10" Steel / 316 L SS (150 lb), [3] 10" Steel / 316 L SS (300 lb), [1] 12" Steel / Carbon Steel (150 lb), [1] 12" Steel / Carbon Steel (300 lb), [3] 12" Steel / 316 L SS (150 lb), [3] 12" Steel / 316 L SS (300 lb), [1] 14" Steel / Carbon Steel (150 lb), [1] 14" Steel / Carbon Steel (300 lb), [3] 14" Steel / 316 L SS (150 lb), [3] 14" Steel / 316 L SS (300 lb), [1] 16" Steel / Carbon Steel (150 lb), [1] 16" Steel / Carbon Steel (300 lb), [3] 16" Steel / 316 L SS (150 lb), [3] 16" Steel / 316 L SS (300 lb), [1] 18" Steel / Carbon Steel (150 lb), [1] 18" Steel / Carbon Steel (300 lb), [3] 18" Steel / 316 L SS (150 lb), [3] 18" Steel / 316 L SS (300 lb), [1] 20" Steel / Carbon Steel (150 lb), [1] 20" Steel / Carbon Steel (300 lb), [3] 20" Steel / 316 L SS (150 lb), [3] 20" Steel / 316 L SS (300 lb), [1] 24" Steel / Carbon Steel (150 lb), [1] 24" Steel / Carbon Steel (300 lb), [3] 24" Steel / 316 L SS (150 lb), [3] 24" Steel / 316 L SS (300 lb) |
| Protection Class | [0] IP 66/67, [2] IP 68 Factory, [3] IP 66/67 | ISO Length (14" and smaller), [5] IP 68 Factory | ISO Length (14" and smaller) |
| Cable Length | [00] Compact - None, [00] 5m | 15 ft DS Signal + LIYCY Coil Power Cable, [01] 10m | 30 ft DS Signal + LIYCY Coil Power Cable, [02] 15m | 45 ft DS Signal + LIYCY Coil Power Cable, [03] 20m | 60 ft DS Signal + LIYCY Coil Power Cable, [04] 25m | 75 ft DS Signal + LIYCY Coil Power Cable, [05] 30m | 90 ft DS Signal + LIYCY Coil Power Cable, [06] 40m | 120 ft DS Signal + LIYCY Coil Power Cable, [07] 50m | 150 ft DS Signal + LIYCY Coil Power Cable, [08] 100m | 300 ft DS Signal + LIYCY Coil Power Cable, [00] 5m | 15 ft DS Signal Cable, [01] 10m | 30 ft DS Signal Cable, [02] 15m | 45 ft DS Signal Cable, [03] 20m | 60 ft DS Signal Cable, [04] 25m | 75 ft DS Signal Cable, [05] 30m | 90 ft DS Signal Cable, [06] 40m | 120 ft DS Signal Cable, [07] 50m | 150 ft DS Signal Cable, [08] 100m | 300 ft DS Signal Cable |
| Calibration | [0] Standard, [2] Standard + 316L SS Tagplate (120 x 46 mm), [3] Standard + 316L SS Tagplate (67 x 25 mm), [A] Custody Transfer, [C] CT + 316L SS Tagplate (120 x 46 mm), [D] CT + 316L SS Tagplate (67 x 25 mm), [H] 8" to 12" - 3 Points w/Water (Acc. to ISO/IEC 17025 2), [H] 14" to 24" - 3 Points w/Water (Acc. to ISO/IEC 17025 2), [R] Extended Calibration, [S] Extended Calibration + 316L SS tagplate (120 x 46 mm), [T] Extended Calibration + 316L SS tagplate (67 x 25 mm) |
| Grounding Ring | [0] Without, [6] 8" Ring #1 / Stainless Steel (150 lb) (x2), [6] 8" Ring #1 / Stainless Steel (300 lb) (x2), [4] 8" Ring #1 / Tantalum (150 lb) (x2), [5] 8" Ring #1 / Titanium (150 lb) (x2), [7] 8" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 8" Protection Ring #2 / Titanium (150lb) (x2), [P] 8" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 8" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 8" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 10" Ring #1 / Stainless Steel (150 lb) (x2), [6] 10" Ring #1 / Stainless Steel (300 lb) (x2), [4] 10" Ring #1 / Tantalum (150 lb) (x2), [5] 10" Ring #1 / Titanium (150 lb) (x2), [7] 10" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 10" Protection Ring #2 / Titanium (150lb) (x2), [P] 10" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 10" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 10" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 12" Ring #1 / Stainless Steel (150 lb) (x2), [6] 12" Ring #1 / Stainless Steel (300 lb) (x2), [4] 12" Ring #1 / Tantalum (150 lb) (x2), [5] 12" Ring #1 / Titanium (150 lb) (x2), [7] 12" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 12" Protection Ring #2 / Titanium (150lb) (x2), [P] 12" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 12" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 12" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 14" Ring #1 / Stainless Steel (150 lb) (x2), [6] 14" Ring #1 / Stainless Steel (300 lb) (x2), [4] 14" Ring #1 / Tantalum (150 lb) (x2), [5] 14" Ring #1 / Titanium (150 lb) (x2), [7] 14" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 14" Protection Ring #2 / Titanium (150lb) (x2), [P] 14" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 14" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 14" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 16" Ring #1 / Stainless Steel (150 lb) (x2), [6] 16" Ring #1 / Stainless Steel (300 lb) (x2), [P] 16" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 16" Protection Ring #2 / Stainless Steel (300lb) (x2), [6] 18" Ring #1 / Stainless Steel (150 lb) (x2), [6] 18" Ring #1 / Stainless Steel (300 lb) (x2), [P] 18" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 18" Protection Ring #2 / Stainless Steel (300lb) (x2), [6] 20" Ring #1 / Stainless Steel (150 lb) (x2), [6] 20" Ring #1 / Stainless Steel (300 lb) (x2), [P] 20" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 20" Protection Ring #2 / Stainless Steel (300lb) (x2), [6] 24" Ring #1 / Stainless Steel (150 lb) (x2), [6] 24" Ring #1 / Stainless Steel (300 lb) (x2), [P] 24" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 24" Protection Ring #2 / Stainless Steel (300lb) (x2) |
| Finish | [000000000] Standard, [300000000] 8" Offshore, [500000000] 8" Direct Burial Coating, [300000000] 10" Offshore, [500000000] 10" Direct Burial Coating, [300000000] 12" Offshore, [500000000] 12" Direct Burial Coating, [300000000] 14" Offshore, [500000000] 14" Direct Burial Coating, [300000000] 16" Offshore, [500000000] 16" Direct Burial Coating, [300000000] 18" Offshore, [500000000] 18" Direct Burial Coating, [300000000] 20" Offshore, [500000000] 20" Direct Burial Coating, [300000000] 24" Offshore, [500000000] 24" Direct Burial Coating |
