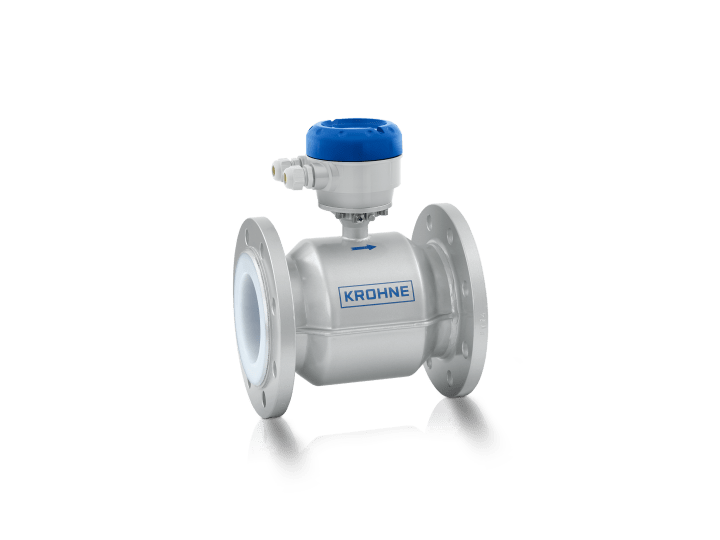

Representative photo. Please check item description for details.
KROHNE Optiflux 2000 Water/Wastewater Electromagnetic Flow Sensor - VN144
Electromagnetic Flow Sensor
- For all water and wastewater applications
- Wide range of approvals for potable water
- Robust, fully welded construction with full bore pipe
Features
- Rugged liners suitable for any water and wastewater application
- Proven and unsurpassed lifetime, huge installed base
- Tamper proof, fully welded construction, also available in customer specific constructions
- Drinking water approvals including KTW, KIWA, DVGW, ACS, NSF, WRAS
- Suitable for subsoil installation and constant flooding (IP68)
- Bi-directional flow metering
- Compliant with requirements for custody transfer (MID MI-001, OIML R49, ISO 4064, EN 14154)
- Standard in house wet calibration of flow sensors up to diameter DN3000
- Easy installation and commissioning
- No grounding rings with virtual reference option on IFC 300
- In-situ verification with OPTICHECK
- Extensive diagnostic capabilities
- Maintenance-free
Electromagnetic Flow Sensor
- For all water and wastewater applications
- Wide range of approvals for potable water
- Robust, fully welded construction with full bore pipe
Features
- Rugged liners suitable for any water and wastewater application
- Proven and unsurpassed lifetime, huge installed base
- Tamper proof, fully welded construction, also available in customer specific constructions
- Drinking water approvals including KTW, KIWA, DVGW, ACS, NSF, WRAS
- Suitable for subsoil installation and constant flooding (IP68)
- Bi-directional flow metering
- Compliant with requirements for custody transfer (MID MI-001, OIML R49, ISO 4064, EN 14154)
- Standard in house wet calibration of flow sensors up to diameter DN3000
- Easy installation and commissioning
- No grounding rings with virtual reference option on IFC 300
- In-situ verification with OPTICHECK
- Extensive diagnostic capabilities
- Maintenance-free
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Nominal Diameter | [4] DN 25 | 1 in, [5] DN 30 | 1-1/4 in, [6] DN 40 | 1-1/2 in, [7] DN 50 | 2 in, [8] DN 65 | 2-1/2 in, [A] DN 80 | 3 in, [B] DN 100 | 4 in, [C] DN 125 | 5 in, [D] DN 150 | 6 in |
| Nominal Pressure | [A] 150 lb / ASME B 16.5, [B] 300 lb / ASME B 16.5 |
| Ex-Approvals | [0] non Ex, [5] FM CLASS I DIV 2, [A] cCSAus OL, [C] CSA Class I DIV 2 |
| System Design | [1] Compact w/Std Neck (at Converter), [2] Compact w/Heavy Duty Neck (at Converter), [4] Separate w/Aluminum Connection Box (1/2" NPT), [6] Separate w/Aluminum Connection Box (M20 x 1.5), [A] Separate w/SS Connection Box (1/2" NPT), [C] Separate w/SS Connection Box (M20 x 1.5) |
| Converter Model | [3] IFC 100 C (Compact), [4] IFC 100 W (Wall Mount), [C] IFC 300 C (Compact), [D] IFC 300 F (Field Mount), [E] IFC 300 W (Wall Mount), [F] IFC 300 R (Rack Mount), [K] IFC 050 C (Compact), [L] IFC 050 W (Wall Mount) |
| Lining | [0] PP (Potable Water Approvals), [0] PFA (Ex Approvals), [5] Hard Rubber (Ex Approvals), [7] Hard Rubber H10005 (Potable Water Approvals), [8] Hard Rubber (non Ex Only), [T] PP - Provided for Protection Rings (Potable Water Approvals) |
| Electrodes | [B1] Hastelloy C22, [11] 316Ti SS, [31] Hastelloy C4, [61] Titanium |
| Housing / Flange Material | [1] Steel / Carbon Steel (150 lb), [A] 304 SS / Carbon Steel (150 lb), [1] 1" Steel / Carbon Steel (300 lb), [3] 1" Steel / 316 L SS (150 lb), [3] 1" Steel / 316 L SS (300 lb), [A] 1" 304 SS / Carbon Steel (300 lb), [C] 1" 304 SS / 316 L SS (150 lb), [C] 1" 304 SS / 316 L SS (300 lb), [1] 1-1/4" Steel / Carbon Steel (300 lb), [3] 1-1/4" Steel / 316 L SS (150 lb), [3] 1-1/4" Steel / 316 L SS (300 lb), [A] 1-1/4" 304 SS / Carbon Steel (300 lb), [C] 1-1/4" 304 SS / 316 L SS (150 lb), [C] 1-1/4" 304 SS / 316 L SS (300 lb), [1] 1-1/2" Steel / Carbon Steel (300 lb), [3] 1-1/2" Steel / 316 L SS (150 lb), [3] 1-1/2" Steel / 316 L SS (300 lb), [A] 1-1/2" 304 SS / Carbon Steel (300 lb), [C] 1-1/2" 304 SS / 316 L SS (150 lb), [C] 1-1/2" 304 SS / 316 L SS (300 lb), [1] 2" Steel / Carbon Steel (300 lb), [3] 2" Steel / 316 L SS (150 lb), [3] 2" Steel / 316 L SS (300 lb), [A] 2" 304 SS / Carbon Steel (300 lb), [C] 2" 304 SS / 316 L SS (150 lb), [C] 2" 304 SS / 316 L SS (300 lb), [1] 2-1/2" Steel / Carbon Steel (300 lb), [3] 2-1/2" Steel / 316 L SS (150 lb), [3] 2-1/2" Steel / 316 L SS (300 lb), [A] 2-1/2" 304 SS / Carbon Steel (300 lb), [C] 2-1/2" 304 SS / 316 L SS (150 lb), [C] 2-1/2" 304 SS / 316 L SS (300 lb), [1] 3" Steel / Carbon Steel (300 lb), [3] 3" Steel / 316 L SS (150 lb), [3] 3" Steel / 316 L SS (300 lb), [A] 3" 304 SS / Carbon Steel (300 lb), [C] 3" 304 SS / 316 L SS (150 lb), [C] 3" 304 SS / 316 L SS (300 lb), [1] 4" Steel / Carbon Steel (300 lb), [3] 4" Steel / 316 L SS (150 lb), [3] 4" Steel / 316 L SS (300 lb), [A] 4" 304 SS / Carbon Steel (300 lb), [C] 4" 304 SS / 316 L SS (150 lb), [C] 4" 304 SS / 316 L SS (300 lb), [1] 5" Steel / Carbon Steel (300 lb), [3] 5" Steel / 316 L SS (150 lb), [3] 5" Steel / 316 L SS (300 lb), [A] 5" 304 SS / Carbon Steel (300 lb), [C] 5" 304 SS / 316 L SS (150 lb), [C] 5" 304 SS / 316 L SS (300 lb), [1] 6" Steel / Carbon Steel (300 lb), [3] 6" Steel / 316 L SS (150 lb), [3] 6" Steel / 316 L SS (300 lb), [A] 6" 304 SS / Carbon Steel (300 lb), [C] 6" 304 SS / 316 L SS (150 lb), [C] 6" 304 SS / 316 L SS (300 lb) |
| Protection Class | [0] IP 66/67, [2] IP 68 Factory, [3] IP 66/67 | ISO Length, [5] IP 68 Factory | ISO Length |
| Cable Length | [00] Compact - None, [00] 5m | 15 ft DS Signal + LIYCY Coil Power Cable, [01] 10m | 30 ft DS Signal + LIYCY Coil Power Cable, [02] 15m | 45 ft DS Signal + LIYCY Coil Power Cable, [03] 20m | 60 ft DS Signal + LIYCY Coil Power Cable, [04] 25m | 75 ft DS Signal + LIYCY Coil Power Cable, [05] 30m | 90 ft DS Signal + LIYCY Coil Power Cable, [06] 40m | 120 ft DS Signal + LIYCY Coil Power Cable, [07] 50m | 150 ft DS Signal + LIYCY Coil Power Cable, [08] 100m | 300 ft DS Signal + LIYCY Coil Power Cable, [00] 5m | 15 ft DS Signal Cable, [01] 10m | 30 ft DS Signal Cable, [02] 15m | 45 ft DS Signal Cable, [03] 20m | 60 ft DS Signal Cable, [04] 25m | 75 ft DS Signal Cable, [05] 30m | 90 ft DS Signal Cable, [06] 40m | 120 ft DS Signal Cable, [07] 50m | 150 ft DS Signal Cable, [08] 100m | 300 ft DS Signal Cable |
| Calibration | [0] Standard, [2] Standard + 316L SS Tagplate (120 x 46 mm), [3] Standard + 316L SS Tagplate (67 x 25 mm), [A] Custody Transfer, [C] CT + 316L SS Tagplate (120 x 46 mm), [D] CT + 316L SS Tagplate (67 x 25 mm), [H] 3 Points w/Water (Acc. to ISO/IEC 17025 2), [R] Extended Calibration, [S] Extended Calibration + 316L SS tagplate (120 x 46 mm), [T] Extended Calibration + 316L SS tagplate (67 x 25 mm) |
| Grounding Ring | [0] Without, [6] 1" Ring #1 / Stainless Steel (150 lb) (x2), [6] 1" Ring #1 / Stainless Steel (300 lb) (x2), [4] 1" Ring #1 / Tantalum (150 lb) (x2), [5] 1" Ring #1 / Titanium (150 lb) (x2), [7] 1" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 1" Protection Ring #2 / Titanium (150lb) (x2), [P] 1" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 1" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 1" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 1-1/4" Ring #1 / Stainless Steel (150 lb) (x2), [6] 1-1/4" Ring #1 / Stainless Steel (300 lb) (x2), [4] 1-1/4" Ring #1 / Tantalum (150 lb) (x2), [5] 1-1/4" Ring #1 / Titanium (150 lb) (x2), [7] 1-1/4" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 1-1/4" Protection Ring #2 / Titanium (150lb) (x2), [P] 1-1/4" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 1-1/4" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 1-1/4" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 1-1/2" Ring #1 / Stainless Steel (150 lb) (x2), [6] 1-1/2" Ring #1 / Stainless Steel (300 lb) (x2), [4] 1-1/2" Ring #1 / Tantalum (150 lb) (x2), [5] 1-1/2" Ring #1 / Titanium (150 lb) (x2), [7] 1-1/2" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 1-1/2" Protection Ring #2 / Titanium (150lb) (x2), [P] 1-1/2" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 1-1/2" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 1-1/2" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 2" Ring #1 / Stainless Steel (150 lb) (x2), [6] 2" Ring #1 / Stainless Steel (300 lb) (x2), [4] 2" Ring #1 / Tantalum (150 lb) (x2), [5] 2" Ring #1 / Titanium (150 lb) (x2), [7] 2" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 2" Protection Ring #2 / Titanium (150lb) (x2), [P] 2" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 2" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 2" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 2-1/2" Ring #1 / Stainless Steel (150 lb) (x2), [6] 2-1/2" Ring #1 / Stainless Steel (300 lb) (x2), [4] 2-1/2" Ring #1 / Tantalum (150 lb) (x2), [5] 2-1/2" Ring #1 / Titanium (150 lb) (x2), [7] 2-1/2" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 2-1/2" Protection Ring #2 / Titanium (150lb) (x2), [P] 2-1/2" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 2-1/2" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 2-1/2" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 3" Ring #1 / Stainless Steel (150 lb) (x2), [6] 3" Ring #1 / Stainless Steel (300 lb) (x2), [4] 3" Ring #1 / Tantalum (150 lb) (x2), [5] 3" Ring #1 / Titanium (150 lb) (x2), [7] 3" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 3" Protection Ring #2 / Titanium (150lb) (x2), [P] 3" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 3" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 3" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 4" Ring #1 / Stainless Steel (150 lb) (x2), [6] 4" Ring #1 / Stainless Steel (300 lb) (x2), [4] 4" Ring #1 / Tantalum (150 lb) (x2), [5] 4" Ring #1 / Titanium (150 lb) (x2), [7] 4" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 4" Protection Ring #2 / Titanium (150lb) (x2), [P] 4" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 4" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 4" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 5" Ring #1 / Stainless Steel (150 lb) (x2), [6] 5" Ring #1 / Stainless Steel (300 lb) (x2), [4] 5" Ring #1 / Tantalum (150 lb) (x2), [5] 5" Ring #1 / Titanium (150 lb) (x2), [7] 5" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 5" Protection Ring #2 / Titanium (150lb) (x2), [P] 5" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 5" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 5" Protection Ring #2 / Hastelloy C22 (150lb) (x2), [6] 6" Ring #1 / Stainless Steel (150 lb) (x2), [6] 6" Ring #1 / Stainless Steel (300 lb) (x2), [4] 6" Ring #1 / Tantalum (150 lb) (x2), [5] 6" Ring #1 / Titanium (150 lb) (x2), [7] 6" Ring #1 / Hastelloy C22 (150 lb) (x2), [N] 6" Protection Ring #2 / Titanium (150lb) (x2), [P] 6" Protection Ring #2 / Stainless Steel (150lb) (x2), [P] 6" Protection Ring #2 / Stainless Steel (300lb) (x2), [R] 6" Protection Ring #2 / Hastelloy C22 (150lb) (x2) |
| Finish | [000000000] Standard, [300000000] 1" Offshore, [500000000] 1" Direct Burial Coating, [300000000] 1-1/4" Offshore, [500000000] 1-1/4" Direct Burial Coating, [300000000] 1-1/2" Offshore, [500000000] 1-1/2" Direct Burial Coating, [300000000] 2" Offshore, [500000000] 2" Direct Burial Coating, [300000000] 2-1/2" Offshore, [500000000] 2-1/2" Direct Burial Coating, [300000000] 3" Offshore, [500000000] 3" Direct Burial Coating, [300000000] 4" Offshore, [500000000] 4" Direct Burial Coating, [300000000] 5" Offshore, [500000000] 5" Direct Burial Coating, [300000000] 6" Offshore, [500000000] 6" Direct Burial Coating |
