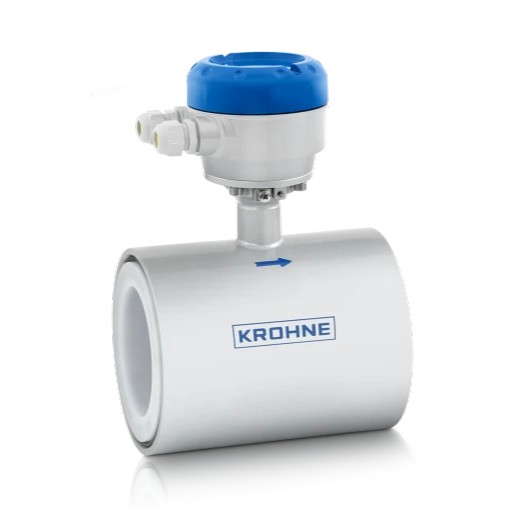

The OPTIFLUX 1000 is an sandwich-style electromagnetic flow sensor for basic applications.
Specifications
| Nominal Diameter | [VN1745] DN 10 | 3/8", [VN1746] DN 15 | 1/2", [VN1748] DN 25 | 1", [VN174B] DN 40 | 1-1/2", [VN174C] DN 50 | 2", [VN174E] DN 80 | 3", [VN174F] DN 100 | 4", [VN174H] DN 150 | 6" |
| Nominal Pressure | [A] 150 lb ASME B 16.5 (max working pressure 232psi), [B] 300 lb ASME B 16.5 (max working pressure 232psi) |
| Ex Approvals | [0] non Ex, [5] FM CLASS I DIV 2, [A] cCSAus OL, [C] CSA Class I DIV 2 |
| System Design | [1] Compact w/Std Neck (for Aluminum Converters), [1] Compact w/Std Neck (for Stainless Steel Converters), [4] Remote Converter w/ Aluminum Connection Box - 1/2" NPT, [6] Remote Converter w/ Aluminum Connection Box - M20 x 1.5, [A] Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, [C] Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5 |
| Converter Model | [3] IFC 100 C (Compact), [4] IFC 100 W (Wall Mount), [C] IFC 300 C (Compact), [D] IFC 300 F (Field Mount), [E] IFC 300 W (Wall Mount), [F] IFC 300 R (Rack Mount), [K] IFC 050 C (Compact), [L] IFC 050 W (Wall Mount) |
| Mounting Material | [3] Rubber Sleeves, [1] Galv. Steel / Rubber Sleeves (<1" Class 150), [2] A2 St. Steel / Rubber Sleeves (<1" Class 150), [1] Galv. Steel / Rubber Sleeves (1" Class 150), [2] A2 St. Steel / Rubber Sleeves (1" Class 150), [1] Galv. Steel / Rubber Sleeves (1-1/2" Class 150), [2] A2 St. Steel / Rubber Sleeves (1-1/2" Class 150), [1] Galv. Steel / Rubber Sleeves (2" Class 150), [2] A2 St. Steel / Rubber Sleeves (2" Class 150), [1] Galv. Steel / Rubber Sleeves (3" Class 150), [2] A2 St. Steel / Rubber Sleeves (3" Class 150), [1] Galv. Steel / Rubber Sleeves (4" Class 150), [2] A2 St. Steel / Rubber Sleeves (4" Class 150), [1] Galv. Steel / Rubber Sleeves (6" Class 150), [2] A2 St. Steel / Rubber Sleeves (6" Class 150), [1] Galv. Steel / Rubber Sleeves (<1" Class 300), [2] A2 St. Steel / Rubber Sleeves (<1" Class 300), [1] Galv. Steel / Rubber Sleeves (1" Class 300), [2] A2 St. Steel / Rubber Sleeves (1" Class 300), [1] Galv. Steel / Rubber Sleeves (1-1/2" Class 300), [2] A2 St. Steel / Rubber Sleeves (1-1/2" Class 300), [1] Galv. Steel / Rubber Sleeves (2" Class 300), [2] A2 St. Steel / Rubber Sleeves (2" Class 300), [1] Galv. Steel / Rubber Sleeves (3" Class 300), [2] A2 St. Steel / Rubber Sleeves (3" Class 300), [1] Galv. Steel / Rubber Sleeves (4" Class 300), [2] A2 St. Steel / Rubber Sleeves (4" Class 300), [1] Galv. Steel / Rubber Sleeves (6" Class 300) |
| Grounding Ring (x2) | [3] without, [3] <1" Stainless Steel DIN 1.4404|316 L, [G] 1" Stainless Steel DIN 1.4404|316 L, [G] 1-1/2" Stainless Steel DIN 1.4404|316 L, [G] 2" Stainless Steel DIN 1.4404|316 L, [G] 3" Stainless Steel DIN 1.4404|316 L, [G] 4" Stainless Steel DIN 1.4404|316 L, [G] 6" Stainless Steel DIN 1.4404|316 L |
| Cable Length | [00] Compact - None, [00] 5m | 15 ft DS Signal + LIYCY Coil Power Cable, [01] 10m | 30 ft DS Signal + LIYCY Coil Power Cable, [02] 15m | 45 ft DS Signal + LIYCY Coil Power Cable, [03] 20m | 60 ft DS Signal + LIYCY Coil Power Cable, [04] 25m | 75 ft DS Signal + LIYCY Coil Power Cable, [05] 30m | 90 ft DS Signal + LIYCY Coil Power Cable, [06] 40m | 120 ft DS Signal + LIYCY Coil Power Cable, [07] 50m | 150 ft DS Signal + LIYCY Coil Power Cable, [08] 100m | 300 ft DS Signal + LIYCY Coil Power Cable, [00] 5m | 15 ft DS Signal Cable, [01] 10m | 30 ft DS Signal Cable, [02] 15m | 45 ft DS Signal Cable, [03] 20m | 60 ft DS Signal Cable, [04] 25m | 75 ft DS Signal Cable, [05] 30m | 90 ft DS Signal Cable, [06] 40m | 120 ft DS Signal Cable, [07] 50m | 150 ft DS Signal Cable, [08] 100m | 300 ft DS Signal Cable |
| Calibrations/Tags | [00000000] Standard, [20000000] Standard + 316|1.4401 Tagplate (120 x 46mm), [30000000] Standard + 316|1.4401 Tagplate (67 x 25mm), [A0000000] Custody Transfer, [C0000000] Custody Transfer + 316|1.4401 Tagplate (120 x 46mm), [D0000000] Custody Transfer + 316|1.4401 Tagplate (67 x 25mm), [H0000000] 3 points with water acc. ISO/IEC 17025 2 |
| Electrodes | [B] Hastelloy C22 |
| Protection Class | [0] IP66/67 |
