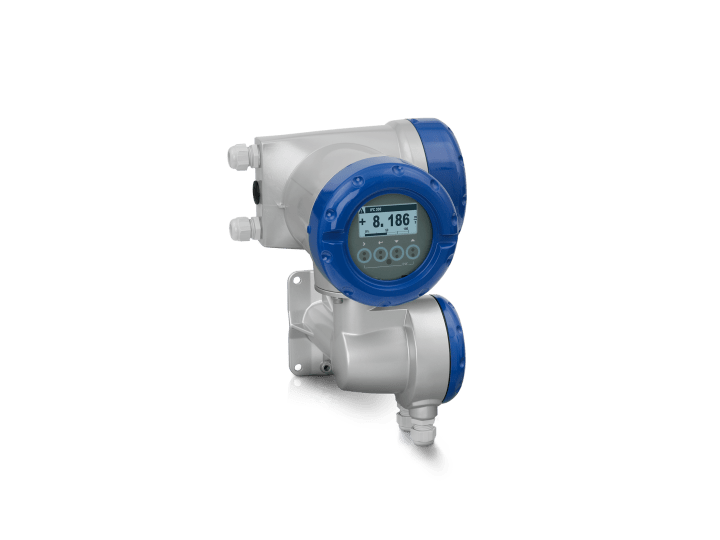

KROHNE IFC 300 Electromagnetic Flow Signal Converter
Representative photo. Please check item description for details.

KROHNE IFC 300 Electromagnetic Flow Signal Converter

https://www.branom.com/web/image/product.template/182957/image_1920?unique=c26756c
(0 review)

Signal converter for electromagnetic flowmeters

  • All-round signal converter matches almost any application requirement
  • Reliable measurements with extensive diagnostics of device and application
  • Wide range of communication options including PROFINET

Highlights

  • For operation with complete OPTIFLUX, WATERFLUX and OPTIPROBE flow sensor line
  • For flow sensors over a diameter range of DN2.5...3000/ 1/10…120"
  • Continuous measurement of volume flow and flow velocity Integrated conductivity measurement, mass flow (at constant density) and coil temperature
  • High measuring accuracy and long-term stability: ±0.15% of measured value ± 1mm/s
  • Optimal zero point stability independent from product properties
  • Power supply via 100…230VAC (standard) or 24VDC or 24VAC/DC (optional)
  • Superior process reliability thanks to standard integrated diagnostics: testing of device functions, check for compliance with specifications and application testing
  • Available inputs and outputs: Current output (including HART®), pulse/frequency output, status output, control input and current input
  • Communication interfaces for integration into third party systems via HART® (as standard), Modbus, FOUNDATION™ Fieldbus, PROFIBUS® and PROFINET IO
  • Wide range of custody transfer approvals including OIMLR49-1 and R117-1, MI-001, MI-004 and MI-005

  • Type
  • Power Supply
  • Hazardous Area Approvals
  • Cable Connection
  • Custody Transfer
  • Process Diagnostics
  • Converter Housing
  • Outputs - Communication
  • First IO Module
  • Second IO Module
  • Reference Method
  • Tag Plate

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Signal converter for electromagnetic flowmeters

  • All-round signal converter matches almost any application requirement
  • Reliable measurements with extensive diagnostics of device and application
  • Wide range of communication options including PROFINET

Highlights

  • For operation with complete OPTIFLUX, WATERFLUX and OPTIPROBE flow sensor line
  • For flow sensors over a diameter range of DN2.5...3000/ 1/10…120"
  • Continuous measurement of volume flow and flow velocity Integrated conductivity measurement, mass flow (at constant density) and coil temperature
  • High measuring accuracy and long-term stability: ±0.15% of measured value ± 1mm/s
  • Optimal zero point stability independent from product properties
  • Power supply via 100…230VAC (standard) or 24VDC or 24VAC/DC (optional)
  • Superior process reliability thanks to standard integrated diagnostics: testing of device functions, check for compliance with specifications and application testing
  • Available inputs and outputs: Current output (including HART®), pulse/frequency output, status output, control input and current input
  • Communication interfaces for integration into third party systems via HART® (as standard), Modbus, FOUNDATION™ Fieldbus, PROFIBUS® and PROFINET IO
  • Wide range of custody transfer approvals including OIMLR49-1 and R117-1, MI-001, MI-004 and MI-005

Specifications

Type [VN3044] C - Compact, [VN304N] W - Wall Mount***Non-Hazardous Area Only, [VN304H] F - Field Mount, [VN3045] C / CAP - Compact (OPTIFLUX 7000 only), [VN304G] F / PF - Field Mount (TIDALFLUX 2000 only), [VN304R] RL - Rack Light
Power Supply [A] 85-250 VAC, [1] 12-24 VDC, [4] 19-29 VDC/AC, [0] 12-24 VDC ***Only for Profinet, includes 1xM12 (PS) connector, [8] 85-250 VAC ***Only for Profinet
Hazardous Area Approvals [0] None / General Purpose, [5] FM Class I DIV 2, [4] Class I DIV 1, [A] cCSAus OL*Canada Only, [C] CSA Class I DIV 2 *Canada Only
Cable Connection [46] 1/2" NPT, [06] 1 x M12, connector, [16] 2 x M12, connectors, [66] M20 x 1,5, [B6] Strip: tag, [43] 1/2" NPT incl. Physical Manual, [03] 1 x M12, connector incl. Physical Manual, [13] 2 x M12, connectors incl. Physical Manual, [63] M20 x 1,5 incl. Physical Manual, [B3] Strip: tag incl. Physical Manual
Custody Transfer [0] Without, [1] Water, NMi OIML R49 *Q3 = fixed per size, R = 80: Other Q3 & R Values available on request, [A] Other than water, OIML R117 *Q3 = fixed per size, R = 80: Other Q3 & R Values available on request
Process Diagnostics [0] Standard, [4] Batchcontrolling
Converter Housing [10] Die-Cast Aluminum (Polyurethane Coated), [10] Polyamide-Polycarbonate - W, [10] Die-Cast Aluminum (Polyurethane Coated) - F / PF, [20] 316 Stainless Steel - C, [20] 316 Stainless Steel - F, [30] Die-Cast Aluminum (Polyurethane Coated), Sealed for Custody Transfer, [40] 316 Stainless Steel, Sealed for Custody Transfer - C, [40] 316 Stainless Steel, Sealed for Custody Transfer - F, [50] Polyamide, Sealed for Custody Transfer - W, [E0] Die-Cast Aluminum (Polyurethane Coated) w/ Plastic Window, [F0] 316 Stainless Steel w/ Plastic Window - C, [F0] 316 Stainless Steel w/ Plastic Window - F
Outputs - Communication [1] 4-20 mA/HART + Pulse/Frequency + Status + Control *Standard, [2] Ex-i IO (current output active + pulse output passive), [3] Ex-i IO (current output passive + pulse output passive), [4] Current active + Pulse active, [6] Current active + Pulse passive, [7] Current active + Pulse Namur, [8] Current passive + Pulse active, [B] Current passive + Pulse passive, [C] Current passive + Pulse Namur, [D] Fieldbus IO: Profibus PA, [E] Fieldbus IO: Foundation Fieldbus, [F] Fieldbus IO: Profibus DP, [G] IO: RS485 Modbus, [N] Ethernet: Profinet
First IO Module [0] No module possible, [1] Ex-i IO (current output active + pulse output passive), [2] Ex-i IO (current output passive + pulse output passive), [8] Without IO module, [A] Current active, [B] Current passive, [C] Pulse active/high current, [E] Pulse passive/high current, [F] Pulse passive/Namur, [G] Control Input active/high current, [H] Control Input active/Namur, [K] Control Input passive/high current
Second IO Module [0] No module possible, [8] Without IO module, [A] Current active, [B] Current passive, [C] Pulse active/high current, [E] Pulse passive/high current, [F] Pulse passive/Namur, [G] Control Input active/high current, [H] Control Input active/Namur, [K] Control Input passive/high current
Reference Method [0] Standard, [1] Virtual Reference
Tag Plate [00] Without, [20] 316SS (120x46mm), [30] 316SS (67x25mm)
