Representative photo. Please check item description for details.

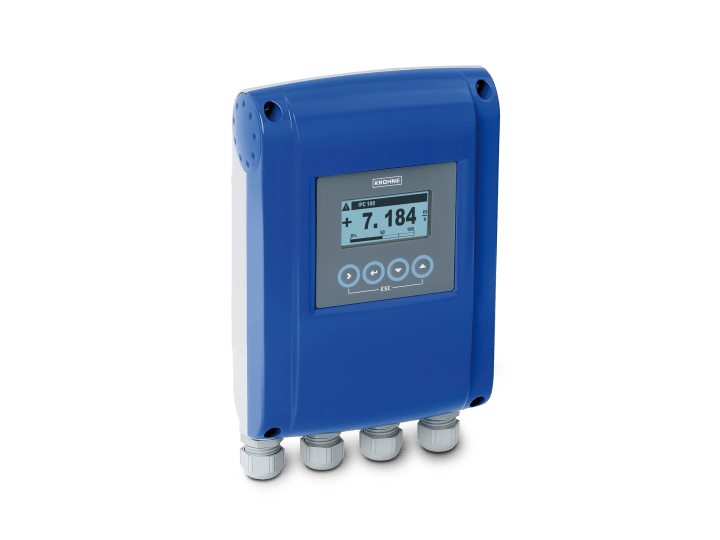

KROHNE IFC 100 Electromagnetic Flow Signal Converter
Signal converter for electromagnetic flowmeters
- Extended accuracy option
- Diagnostics of device and application
Highlights
- For operation with a wide range of OPTIFLUX and WATERFLUX flow sensors
- For flow sensors over a diameter range from DN2.5 up to DN1200
- Housing in aluminium with a polyester topcoat or in stainless steel (option)
- Tropicalized electronics to protect it from humidity (option)
- Available outputs: 4...20 mA current output, pulse/frequency output and status output/limit switch
- Control input option
- HART® as standard
- Power supply via 100…230 VAC (standard) or 24 VDC or 24 VAC/DC (optional)
- Clearly readable values due to angle of the signal converter housing which prevents dirt and dust on the display
- Extended calibration option for higher measuring accuracy down to 0.2% of the measuring value
- Excellent price/performance ratio
Signal converter for electromagnetic flowmeters
- Extended accuracy option
- Diagnostics of device and application
Highlights
- For operation with a wide range of OPTIFLUX and WATERFLUX flow sensors
- For flow sensors over a diameter range from DN2.5 up to DN1200
- Housing in aluminium with a polyester topcoat or in stainless steel (option)
- Tropicalized electronics to protect it from humidity (option)
- Available outputs: 4...20 mA current output, pulse/frequency output and status output/limit switch
- Control input option
- HART® as standard
- Power supply via 100…230 VAC (standard) or 24 VDC or 24 VAC/DC (optional)
- Clearly readable values due to angle of the signal converter housing which prevents dirt and dust on the display
- Extended calibration option for higher measuring accuracy down to 0.2% of the measuring value
- Excellent price/performance ratio
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Type | [VN3144] C-Compact (0°) for Vertical Pipes, [VN3146] C-Compact (45°) for Horizontal Pipes, [VN314N] W-Wall Mount |
| Power Supply | [A] 85-250 VAC, [1] 12-24 VDC, [4] 19-29 V DC/AC |
| Hazardous Area Approvals | [0] None / General Purpose, [5] cFMus Class 1 DIV 2, [A] CSA Ordinary Location * Required for Canada |
| Cable Connection | [460] 1/2" NPT, [660] M20 x 1.5 |
| Process Diagnostics | [D] Empty Pipe Detection, [C] Tropicalized electronics for General Purpose only, [0] Standard |
| Converter Housing | [10] Die-Cast Aluminum (Polyurethane Coated), [20] 316 Stainless Steel |
| Tag Plate | [03] Without, [23] 316SS (120x46mm), [33] 316SS (67x25mm) |
| Outputs | [1000] 4-20 mA/HART + pulse/frequency + status |
