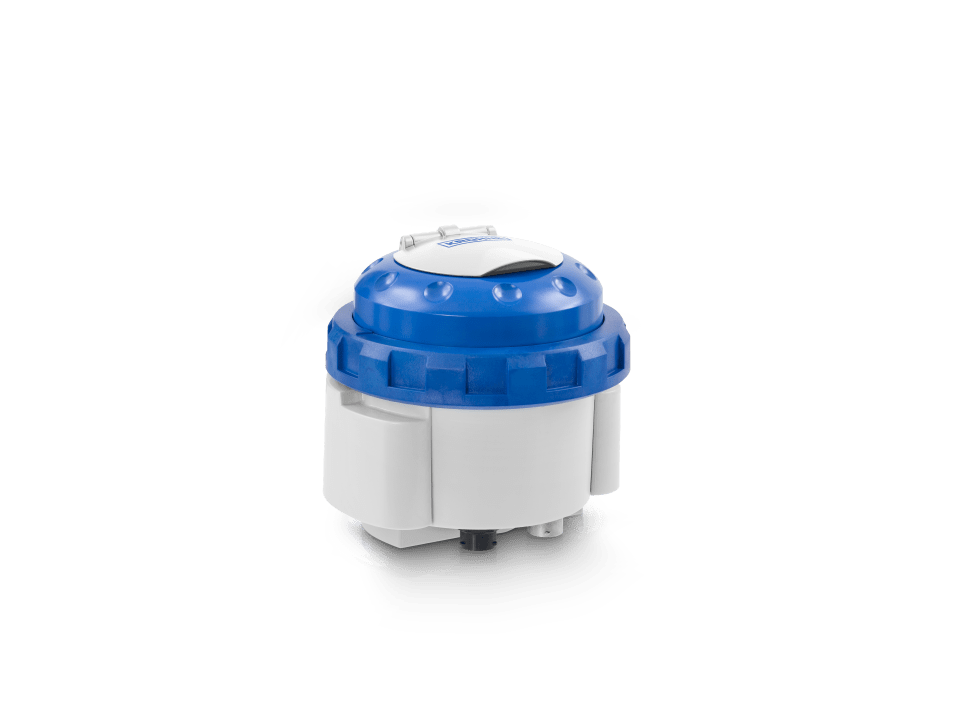

KROHNE IFC 070-v3 Electromagnetic Flow Signal Converter
Representative photo. Please check item description for details.

KROHNE IFC 070-v3 Electromagnetic Flow Signal Converter

https://www.branom.com/web/image/product.template/531415/image_1920?unique=c26756c
(0 review)

Electromagnetic flow converter for combination with WATERFLUX 3000 flow sensor

  • Compact (C) and remote field housing (F), waterproof (IP68 / NEMA 4X/6P)
  • Battery- or mains powered with battery backup option
  • Pulse, status, Modbus

  • Type
  • Power Supply
  • Cable Connection
  • Custody Transfer
  • Process Diagnostics
  • Communication
  • Tag Plate
  • Power Supply Wiring

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Electromagnetic flow converter for combination with WATERFLUX 3000 flow sensor

  • Compact (C) and remote field housing (F), waterproof (IP68 / NEMA 4X/6P)
  • Battery- or mains powered with battery backup option
  • Pulse, status, Modbus

Specifications

Type [VNCA48] Battery Power - Compact Mounted Transmitter, [VNCA42] FlexPower / Main Power - Compact Mounted Transmitter, [VNCA4U] Battery Power - Remote (Field) Mounted Transmitter, [VNCA4V] FlexPower / Main Power - Remote (Field) Mounted Transmitter
Power Supply [H0] Internal / dual battery pack Tadiran cells, [A0] Prepared for FlexPower + battery back-up 2 Tadiran cells ( FlexPower itself not included; order XNCA030400 ), [C0] Prepared for FlexPower + battery back-up 2 Saft cells ( FlexPower itself not included; order XNCA030420 ), [K0] Prepared for External battery pack 4 Tadiran cells ( Battery pack itself not included; order XNCA030300 ), [M0] Internal / prepared for dual battery pack ( without battery), [P0] Internal / dual battery pack Saft cells
Cable Connection [G6] 30 ft output cable, [F6] 15 ft output cable, [L6] 75 ft output cable
Custody Transfer [0] Standard (empty pipe detection standard), [1] Water, OIML R-49 Class 2
Process Diagnostics [000] Standard, [A00] Integrated Pressure / Temperature Sensor
Communication [1000] Basic IO (2 passive pulse + 2 passive status output - not activated), [G000] I/O RS485 Modbus (Battery power), [H000] I/O RS485 Modbus (FlexPower), [K000] External instruments (pulse output activated), [X000] Encoder Output ***Requires line item UI-1203***
Tag Plate [03] Standard, [23] 316 SS, 120 x 46 mm, [33] 316 SS, 67 x 25 mm
Power Supply Wiring [00000] Standard, battery, [A0000] FlexPower
