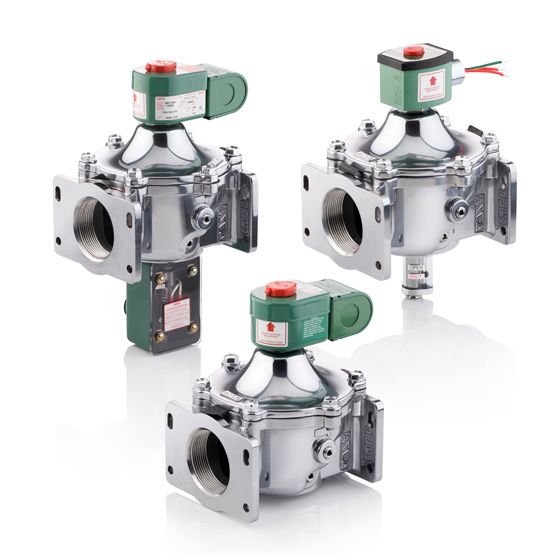

214 Series High-Flow Gas Shut-Off Solenoid Valve (8214), 1" NPT, 110 VAC, Aluminum, 2 Way-2/2 NC
The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. A double-solenoid gas train provides an exceptionally small footprint for space constrained applications. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.
Features
- Body Material: Aluminum
- Flow (Cv): 21.00
- Valve Function: 2 way - 2/2 Normally Closed
- Media: Fuel Gas
- Pipe/Port Type & Size: NPT 1
- Voltage & Frequency: 110 AC, 120 AC with 50/60 Hz
- Order Code: 22092
- Kit Number: 323632
- Coil Class: FB
- Coil Number: 099257-005-D
- Min to Max Ambient Temperature: -40 - 125 deg;F
- Orifice Size: 1-5/8 in
- Watt Rating: 20.0 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1 X 1-5/8 2NC AL 20.0/F AC
- Seating Elastomer: NBR:
The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. A double-solenoid gas train provides an exceptionally small footprint for space constrained applications. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.
Features
- Body Material: Aluminum
- Flow (Cv): 21.00
- Valve Function: 2 way - 2/2 Normally Closed
- Media: Fuel Gas
- Pipe/Port Type & Size: NPT 1
- Voltage & Frequency: 110 AC, 120 AC with 50/60 Hz
- Order Code: 22092
- Kit Number: 323632
- Coil Class: FB
- Coil Number: 099257-005-D
- Min to Max Ambient Temperature: -40 - 125 deg;F
- Orifice Size: 1-5/8 in
- Watt Rating: 20.0 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1 X 1-5/8 2NC AL 20.0/F AC
- Seating Elastomer: NBR:
Specifications
| Valve: Brand | Asco, Asco |
| Valve: Pipe Size | 1 in, 2 in |
| Valve: Actuation | Solenoid - Direct Acting, Solenoid - Pilot Operated, Solenoid |
| Valve: Body Material | Aluminum, Aluminum |
| Valve: Flow Factor (Cv) | 21.0, 58.0 |
| Valve: Media | Air-Inert Gas, Fuel Gas |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any, Vertical & Upright |
| Valve: Gas Capacity (Btu/hr) | 3,100,000 |
| Valve: Type | Automated |
| Valve: Orifice | 2-3/32in |
| Valve: Seal Material | NBR, NBR |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed, 2-Way Normally Open |
| Valve: Rider Rings | PTFE |
