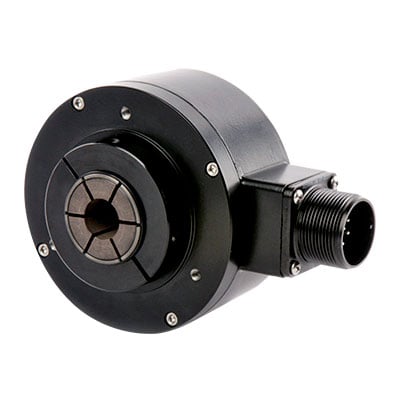

Dynapar HS35R Series Heavy Duty Sealed Hollowshaft Encoder, 2000PPR, 1" Bore, Slotted Tether Fixing, Dual Isolated Outputs, 10 Pin Termination
The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.
-
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 5.3
-
Mechanical
- Connection Location: Radial (Dual Isolated)
- Connection Type: Connector
- Disk Material: Aluminum
- Fixing: Slotted tether (to fit standard AC motor fan cover)
- Flange Material: Powder Coated Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Aluminum
- Shaft / Bore Size (mm): 25.4
- Shaft Type: Hollow Shaft
- Special Shaft Feature: Electrically Isolated Shaft
- Starting Torque (Ncm): 5.65
- Termination: 10 Pin MS
-
Electrical
- Duty Cycle: 45-55%
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 7272
- Maximum Frequency Response (KHz): 125
- Output Signal: 5-26 VDC
- Resolution (PPR): 2000
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
-
Environmental
- Approvals / Certifications: [CE, ROHS]
- Hazardous Area Rating: [None]
- Hazardous Area Rating Certification: [None]
- Housing Protection Level: IP67
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 85
- Maximum Storage Temperature (°C): 100
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 400G, 6msec
- Vibration Resistance: 20G, 5-3000Hz
The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.
-
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 5.3
-
Mechanical
- Connection Location: Radial (Dual Isolated)
- Connection Type: Connector
- Disk Material: Aluminum
- Fixing: Slotted tether (to fit standard AC motor fan cover)
- Flange Material: Powder Coated Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Aluminum
- Shaft / Bore Size (mm): 25.4
- Shaft Type: Hollow Shaft
- Special Shaft Feature: Electrically Isolated Shaft
- Starting Torque (Ncm): 5.65
- Termination: 10 Pin MS
-
Electrical
- Duty Cycle: 45-55%
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 7272
- Maximum Frequency Response (KHz): 125
- Output Signal: 5-26 VDC
- Resolution (PPR): 2000
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
-
Environmental
- Approvals / Certifications: [CE, ROHS]
- Hazardous Area Rating: [None]
- Hazardous Area Rating Certification: [None]
- Housing Protection Level: IP67
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 85
- Maximum Storage Temperature (°C): 100
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 400G, 6msec
- Vibration Resistance: 20G, 5-3000Hz
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
