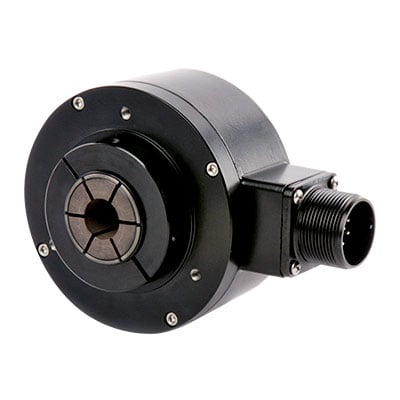

Dynapar HS35R Series Heavy Duty, Hollow Shaft, 1000PPR

https://www.branom.com/web/image/product.template/184372/image_1920?unique=c26756c
(0 review)

The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.

  • General

    • Feedback Type: Incremental
    • Technology Sensing Type: Optical
    • Weight (Pounds): 5.3

  • Mechanical

    • Connection Location: Radial
    • Connection Type: Pigtail Cable
    • Disk Material: Aluminum
    • Fixing: Slotted tether (to fit standard AC motor fan cover)
    • Flange Material: Powder Coated Aluminum
    • Maximum Operating Speed (RPM): 6000
    • Shaft / Bore Material: Aluminum
    • Shaft / Bore Size (mm): 19.05
    • Shaft Type: Hollow Shaft
    • Special Shaft Feature: Electrically Isolated Shaft
    • Starting Torque (Ncm): 5.65
    • Termination: 0.5 m (18 in) Cable

  • Electrical

    • Duty Cycle: 45-55%
    • Incremental Signals: A, A', B, B', Z, Z'
    • Input Voltage: 5-26 VDC
    • Line Driver Type: 7272
    • Maximum Frequency Response (KHz): 125
    • Output Signal: 5-26 VDC
    • Resolution (PPR): 1000
    • Reverse Polarity Protection: Yes
    • Short Circuit Protection: Yes
    #BBD0E0 »

$ 788.00 788.0 USD $ 788.00

$ 788.00

Not Available For Sale

  • Measurement Minimum

This combination does not exist.

Contact Us

Share

The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.

  • General

    • Feedback Type: Incremental
    • Technology Sensing Type: Optical
    • Weight (Pounds): 5.3

  • Mechanical

    • Connection Location: Radial
    • Connection Type: Pigtail Cable
    • Disk Material: Aluminum
    • Fixing: Slotted tether (to fit standard AC motor fan cover)
    • Flange Material: Powder Coated Aluminum
    • Maximum Operating Speed (RPM): 6000
    • Shaft / Bore Material: Aluminum
    • Shaft / Bore Size (mm): 19.05
    • Shaft Type: Hollow Shaft
    • Special Shaft Feature: Electrically Isolated Shaft
    • Starting Torque (Ncm): 5.65
    • Termination: 0.5 m (18 in) Cable

  • Electrical

    • Duty Cycle: 45-55%
    • Incremental Signals: A, A', B, B', Z, Z'
    • Input Voltage: 5-26 VDC
    • Line Driver Type: 7272
    • Maximum Frequency Response (KHz): 125
    • Output Signal: 5-26 VDC
    • Resolution (PPR): 1000
    • Reverse Polarity Protection: Yes
    • Short Circuit Protection: Yes
    #BBD0E0 »

Specifications

Measurement Minimum 0
