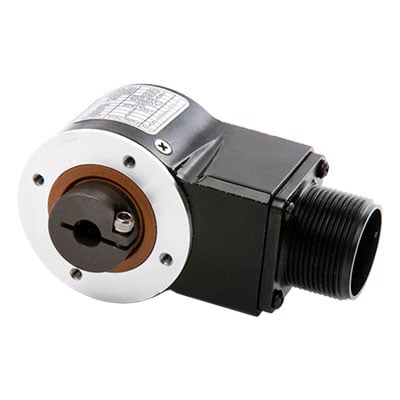

Dynapar HS20 Sealed Hollow-Shaft Encoder- 5/8'
The Series HS20 Sealed Hollow-shaft encoder is designed for easy installation on motor or machine shafts. Its hollow-shaft design eliminates the need for a flexible shaft coupling, mounting bracket, flower pot, or flange adapter. This not only reduces the installation depth, but also lowers total cost.
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 3
Mechanical
- Connection Location: Radial
- Connection Type: Connector with Mating Connector
- Disk Material: Aluminum
- Fixing: Clearance Hole for 3/8" bolt on 5.88" dia. BC (To Fit 4.5" NEMA C-Face) w/ Protective Cover Kit1
- Flange Material: Aluminum
- Housing Material: Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Aluminum
- Shaft / Bore Size (mm): 15.875
- Shaft Type: Hollow Shaft
- Starting Torque (Ncm): 7.06
- Termination: 10 Pin + Mating
Electrical
- Duty Cycle: 45-55%
- Incremental Signals: A, A', B, B', Z, Z'
- Input Voltage: 5-26 VDC
- Line Driver Type: 7272
- Maximum Frequency Response (KHz): 100
- Output Signal: 5-26 VDC
- Resolution (PPR): 1024
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
Environmental
- Hazardous Area Rating: [None]
- Hazardous Area Rating Certification: [None]
- Housing Protection Level: IP65
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 85
- Maximum Storage Temperature (°C): 85
- Minimum Operating Temperature (°C): 0
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 50G, 11msec
- Vibration Resistance: 2.5G, 5-2000Hz
