GN500N / GN500S Butterfly Valve Series Gear Operated NSF Approved Rubber-Lined Wafer-Style Butterfly Valve w/ Nylon-Coated SS Disc

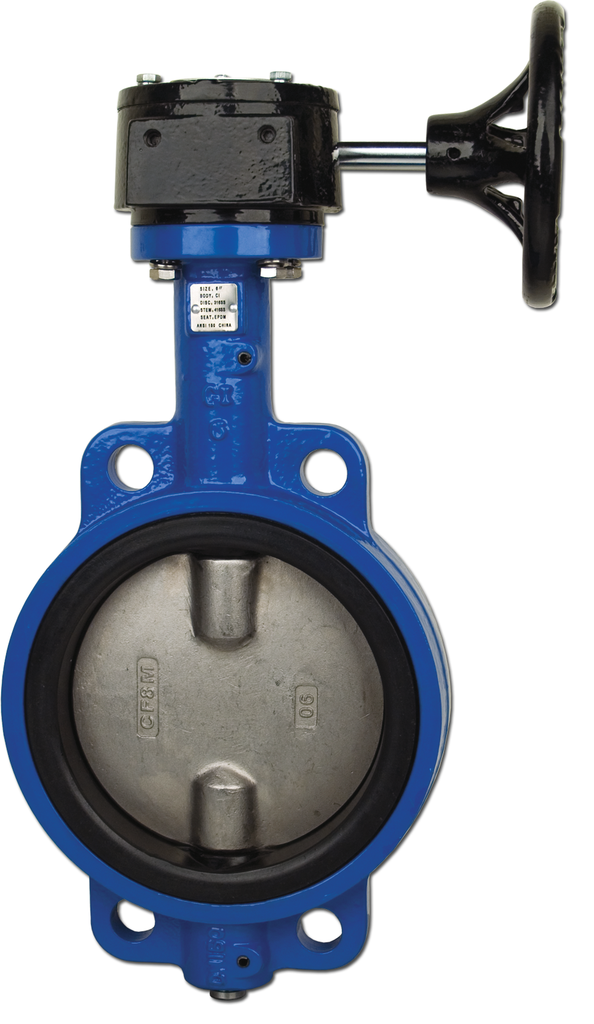

Representative photo. Please check item description for details.

GN500N / GN500S Butterfly Valve Series Gear Operated NSF Approved Rubber-Lined Wafer-Style Butterfly Valve w/ Nylon-Coated SS Disc

https://www.branom.com/web/image/product.template/534847/image_1920?unique=c26756c
(0 review)

GN500N Butterfly Valve Series gear operated Wafer butterfly valves full port.

Features

  • Epoxy coated cast iron wafer body.
  • Pressure rating: 250psi water (40°F to 80°F).
  • Food grade EPDM resilient seat -30°F to 250°F.
  • Low turn ratio.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • IP54 enclosure.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • NSF certified for drinking water service (EPDM seats only).
  • Dead end service to 100 psi.

Model Details

  • G530S: VITON® SEATS - size 2" to 12".
  • G540S: BUNA-N SEATS - size 12" to 12".

$ 206.51 206.51 USD $ 206.51

$ 205.44

Not Available For Sale

  • Model
  • Valve Size

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

GN500N Butterfly Valve Series gear operated Wafer butterfly valves full port.

Features

  • Epoxy coated cast iron wafer body.
  • Pressure rating: 250psi water (40°F to 80°F).
  • Food grade EPDM resilient seat -30°F to 250°F.
  • Low turn ratio.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • IP54 enclosure.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • NSF certified for drinking water service (EPDM seats only).
  • Dead end service to 100 psi.

Model Details

  • G530S: VITON® SEATS - size 2" to 12".
  • G540S: BUNA-N SEATS - size 12" to 12".

Specifications

Model [GN500N] Nylon-Coated SS Disc, [GN500S] SS Disc
Valve Size 2", 2-1/2", 3", 4", 8", 10", 1-1/2", 2"‎ , 2-1/2"‎ , 3"‎ , 4"‎ , 5", 6", 8"‎ , 10"‎ , 12"
