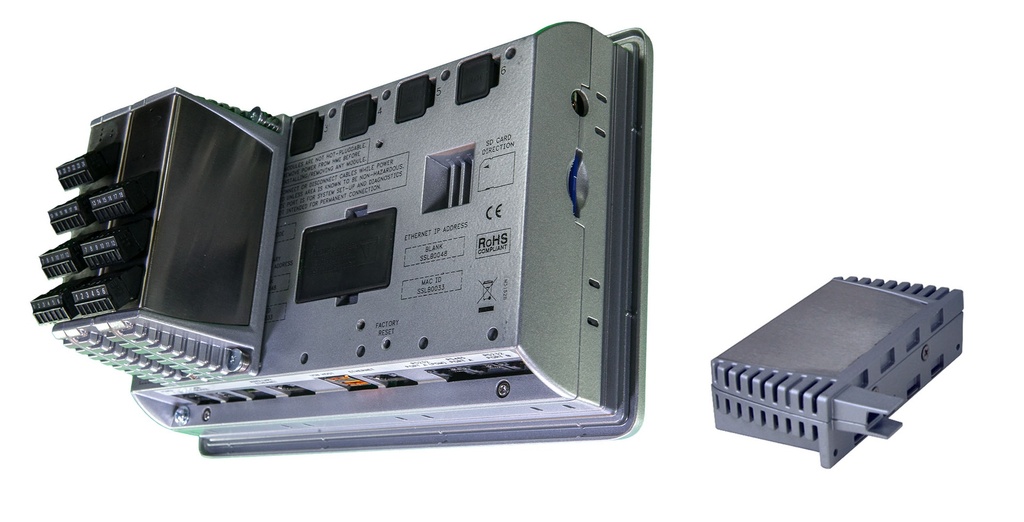

Strain Gage Module 1 Strain Gage In, Solid State Out
One Strain input module for the Graphite® HMI products Single loop PID control with reduced overshoot Analog and solid state outputs Load cell, pressure and torque bridge inputs Selectable low level inputs (20 mv, 33 mv or 200 mv full scale) Software selectable 5 VDC or 10 VDC bridge excitation Digital tare (re-zero), batch totalizer, and peak/valley (max/min) recording On demand auto-tuning of PID settings DC analog output
