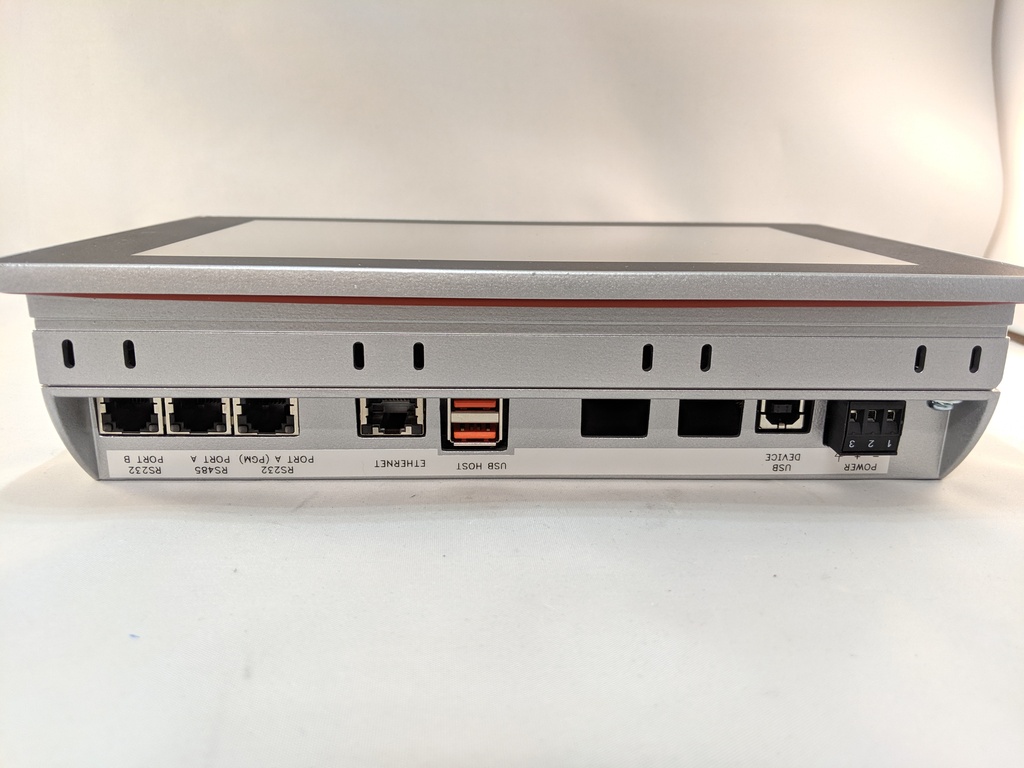

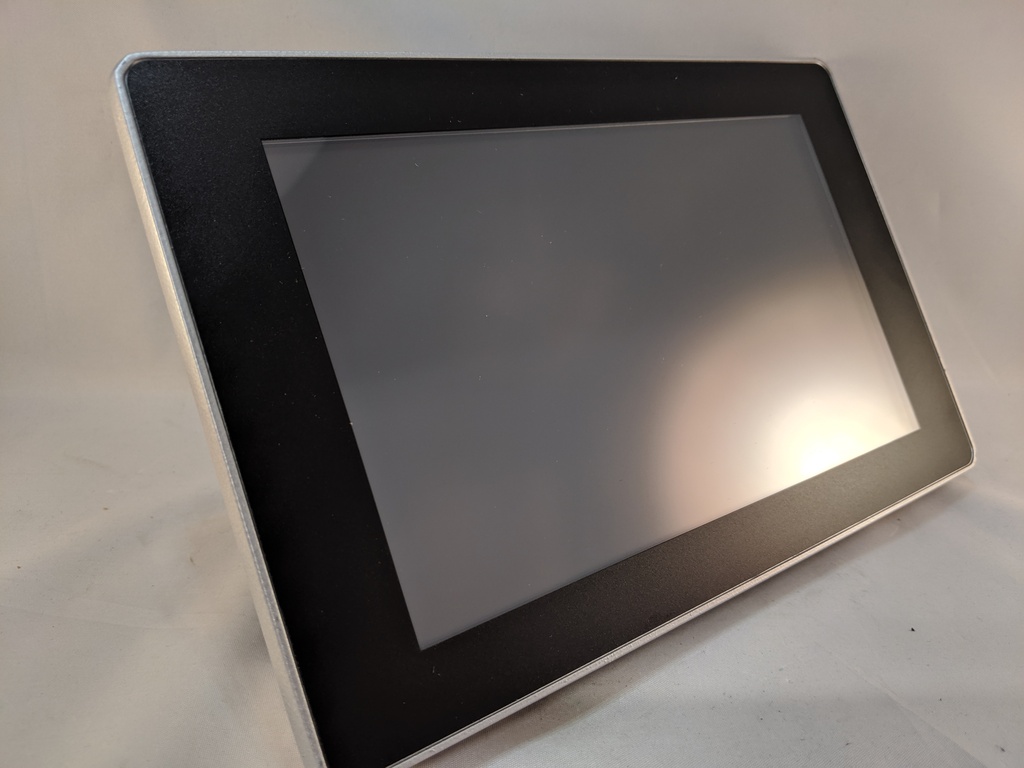

Rugged Graphic Series Graphite® 9" Modular HMI, Indoor
Red Lion's rugged Graphite® operator panels are the industry's first HMI touchscreens to combine all-aluminum construction with an I/O module architecture. All of the Graphite HMI models offer drag-and-drop protocol conversion, data logging and web-based monitoring and control. With UL Class 1, Division 2, ABS, ATEX and IECEx approvals, Graphite HMIs enable customers to connect, monitor and control processes in harsh environments.
Features
- 9 inch WVGA Color Widescreen touchscreen (800 x 480)
- Indoor Model
- Up to 20 Simultaneous Protocol Conversions
- One 10/100 Base-TX Ethernet Port
- Three Fully Isolated Serial Communication Ports, (two RS-232 and one RS-422/485)
- One USB Type B Port
- Two High-retention USB Host Ports
- 6 Module Slots to Easily add I/O Capability with Plug-in Modules
- 256 x 164 mm Dimensions
- OPC UA Client Driver
- OPC UA Historical Access
- Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
- Google Cloud
- Amazon AWS
- Microsoft Azure
- Sparkplug
- Inductive Automation Ignition!
- Ubidots
- Store and Forward Buffering for Cloud Connectors
