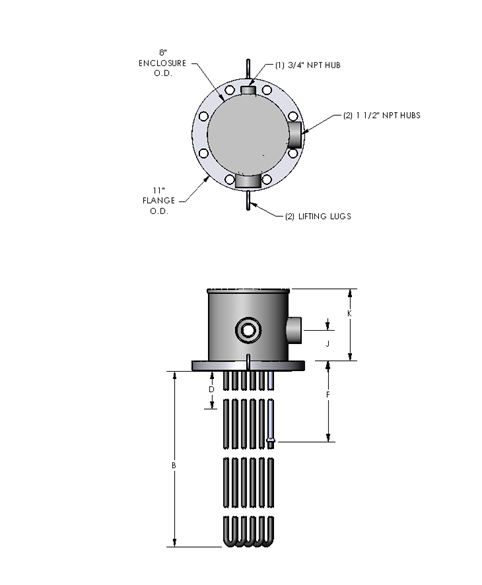

Representative photo. Please check item description for details.
Watlow Flanged Circulation Heater, 6" 150LB, 90KW
Flange Voltage: 240
Flange Wattage: 90,000 Watt Density: 59.8 B Dimension (Immersed element length): 37.8750 Number of Elements: 15 Elements Electrical Phase configuration: 3 Phase - Delta wiring Number of Circuits: 5 Flange Size: 6 Inch Flange Flange Class: 150 lb. Flange Material: Steel Flange Sheath Material: Alloy 800 Baffles? No Baffles Cold End Section below the Flange: 4.5000 Passivate wetted parts? No Process Sensor: No Process Sensor Hi-Limit Sensor: No Hi-Limit Sensor Thermowell required? Yes Stand-off Terminal Enclosure? No Terminal Enclosure: General Purpose (incl. CSA) CE Low Volt Directive required? No Nameplate Part Number: FPN737R3XS
Flange Voltage: 240
Flange Wattage: 90,000 Watt Density: 59.8 B Dimension (Immersed element length): 37.8750 Number of Elements: 15 Elements Electrical Phase configuration: 3 Phase - Delta wiring Number of Circuits: 5 Flange Size: 6 Inch Flange Flange Class: 150 lb. Flange Material: Steel Flange Sheath Material: Alloy 800 Baffles? No Baffles Cold End Section below the Flange: 4.5000 Passivate wetted parts? No Process Sensor: No Process Sensor Hi-Limit Sensor: No Hi-Limit Sensor Thermowell required? Yes Stand-off Terminal Enclosure? No Terminal Enclosure: General Purpose (incl. CSA) CE Low Volt Directive required? No Nameplate Part Number: FPN737R3XS
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | ASME 150# |
| Measurement Minimum | 0 |
| Input Voltage | 240 VAC |
| Heater Type | Immersion Heaters |
