Watlow Tubular Flanged Heater
Representative photo. Please check item description for details.

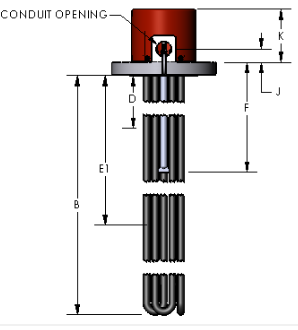

Watlow Tubular Flanged Heater

https://www.branom.com/web/image/product.template/554719/image_1920?unique=c26756c
(0 review)
Flange Voltage: 480
Flange Wattage: 6000
Watt Density: 49.1
B Dimension (Immersed element length): 18.0000
Number of Elements: 3 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 1
Flange Size: 3 Inch Flange
Flange Class: 150 lb.
Flange Material: 304 Stainless Steel Flange
Sheath Material: 304 SS
Baffles? No Baffles
Cold End Section below the Flange: 4.5625
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard)
CE Low Volt Directive required? No

$ 2,459.00 2459.0 USD $ 2,459.00

$ 2,459.00

Not Available For Sale

    This combination does not exist.
