  2. Automation
  3. VLT AutomationDrive EZ FC-321, 20 HP / 15 KW, 380-500 VAC, 3 Phase, IP66 FC-321P15KT5P66H2BGX3SXSXXXXAXBXCXXXXDX
Public Pricelist (v2)

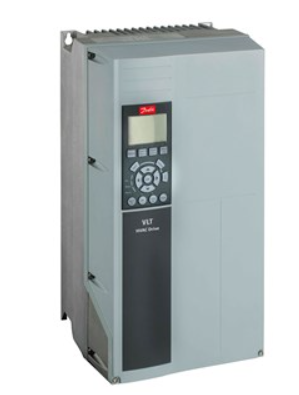

Representative photo. Please check item description for details.

VLT AutomationDrive EZ FC-321, 20 HP / 15 KW, 380-500 VAC, 3 Phase, IP66 FC-321P15KT5P66H2BGX3SXSXXXXAXBXCXXXXDX

https://www.branom.com/web/image/product.template/197636/image_1920?unique=c26756c
(0 review)

  • Product Group: (FC-) VLT® AutomationDrive EZ
  • VLT Series: 321
  • Power Rating: (P15K) (P15K) 15 KW / 20 HP
  • Voltage: (T5) Three phase 380-500 VAC
  • Enclosure: (P66) IP66 / NEMA 4X Backplate
  • RFI Filter: (H2) RFI Class A2 (C3)
  • Brake - Safe Stop: (B) Brake chopper
  • LCP: (G) Graphical Local Control Panel
  • Coating PCB: (X) Not coated PCB
  • Mains Option: (3) Mains Disconnect + Fuse
  • Adaptation A: (S) Smooth imperial cable entries
  • Adaptation B: (X) No adaptation
  • Software Release: (SXXX) Latest release - std. software
  • Software Language Pack: (X) Standard Language Pack
  • A Option: (AX) No A Option
  • B Option: (BX) No B Option
  • C0 Option: (CX) No C0 option
  • C Option Software: (XX) No software option
  • D Option: (DX) No D option
  • Frame Size: B1
  • Continuous Current (NO) [A] 3x380-440VAC.: 37.5
  • Intermittent Current (NO) [A] 3x380-440VAC.: 41.2
  • Continuous Current (NO) [A] 3x440-500VAC: 34
  • Intermittent Current (NO) [A] 3x440-500VAC: 37.4
  • Continuous Current (HO) [A] 3x380-440VAC.: 32
  • Intermittent Current (HO) [A] 3x380-440VAC.: 51.2
  • Continuous Current (HO) [A] 3x440-500VAC: 27
  • Intermittent Current (HO) [A] 3x440-500VAC: 43.2
  • Power Loss NO [W] 3x380-440VAC.: 465
  • Power Loss NO [W] 3x440-500VAC: 465
  • Power Loss HO [W] 3x380-440VAC.: 379
  • Power Loss HO [W] 3x440-500VAC: 379
  • kVA: 22.2

  • AC Drive: Brand
  • AC Drive: Series
  • AC Drive: Power Rating
  • AC Drive: Output
  • AC Drive: Voltage
  • AC Drive: IP Rating

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

  • Product Group: (FC-) VLT® AutomationDrive EZ
  • VLT Series: 321
  • Power Rating: (P15K) (P15K) 15 KW / 20 HP
  • Voltage: (T5) Three phase 380-500 VAC
  • Enclosure: (P66) IP66 / NEMA 4X Backplate
  • RFI Filter: (H2) RFI Class A2 (C3)
  • Brake - Safe Stop: (B) Brake chopper
  • LCP: (G) Graphical Local Control Panel
  • Coating PCB: (X) Not coated PCB
  • Mains Option: (3) Mains Disconnect + Fuse
  • Adaptation A: (S) Smooth imperial cable entries
  • Adaptation B: (X) No adaptation
  • Software Release: (SXXX) Latest release - std. software
  • Software Language Pack: (X) Standard Language Pack
  • A Option: (AX) No A Option
  • B Option: (BX) No B Option
  • C0 Option: (CX) No C0 option
  • C Option Software: (XX) No software option
  • D Option: (DX) No D option
  • Frame Size: B1
  • Continuous Current (NO) [A] 3x380-440VAC.: 37.5
  • Intermittent Current (NO) [A] 3x380-440VAC.: 41.2
  • Continuous Current (NO) [A] 3x440-500VAC: 34
  • Intermittent Current (NO) [A] 3x440-500VAC: 37.4
  • Continuous Current (HO) [A] 3x380-440VAC.: 32
  • Intermittent Current (HO) [A] 3x380-440VAC.: 51.2
  • Continuous Current (HO) [A] 3x440-500VAC: 27
  • Intermittent Current (HO) [A] 3x440-500VAC: 43.2
  • Power Loss NO [W] 3x380-440VAC.: 465
  • Power Loss NO [W] 3x440-500VAC: 465
  • Power Loss HO [W] 3x380-440VAC.: 379
  • Power Loss HO [W] 3x440-500VAC: 379
  • kVA: 22.2

Specifications

AC Drive: Brand Danfoss
AC Drive: Series FC-321
AC Drive: Power Rating 3 Phase
AC Drive: Output 20 HP / 15 KW
AC Drive: Voltage 380-500 VAC
AC Drive: IP Rating IP66
