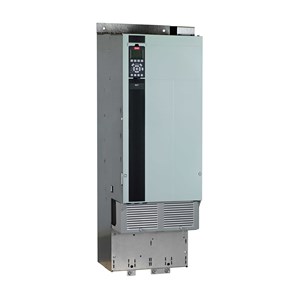

Representative photo. Please check item description for details.
VLT Aqua Drive FC-202, 125 HP / 90 KW, 525-690 VAC, 3 Phase, IP55 FC-202N90KT7E5DH2XGCXXXSXXXXAXBXCXXXXDX
- Product Group: (FC-) VLT® AQUA Drive FC-
- Series: 202
- Power Rating: (N132) (N132) 132 KW / 200 HP
- Phase: (T) Three phase
- Mains Voltage: (4) 380 - 480 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H2) RFI Filter
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (C) Coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: D3H
- Power 110% (NO) [KW]: 132
- Power 150% (HO) [KW]: 110
- Height [mm]: 909,0
- Height w/ Regen/Loadshare [mm]: 1004,0
- Width w/ no C options [mm]: 250,0
- Depth [mm]: 375,0
- Depth with Option A/B [mm]: 375,0
- Calculated Net Weight [kg]: 62
- Continuous Current (NO) [A] 3x380-440VAC: 260
- Intermittent Current (NO) [A] 3x380-440VAC: 286
- Continuous Current (NO) [A] 3x440-480VAC: 240
- Intermittent Current (NO) [A] 3x440-480VAC: 264
- Continuous Current (HO) [A] 3x380-440VAC: 212
- Intermittent Current (HO) [A] 3x380-440VAC: 318
- Continuous Current (HO) [A] 3x440-480VAC: 190
- Intermittent Current (HO) [A] 3x440-480VAC: 285
- Power Loss NO [W] 3x380-440VAC: 2954
- Power Loss NO [W] 3x440-480VAC: 2724
- Power Loss HO [W] 3x380-440VAC: 2289
- Power Loss HO [W] 3x440-480VAC: 2051
- kVA: 180
- Product Group: (FC-) VLT® AQUA Drive FC-
- Series: 202
- Power Rating: (N132) (N132) 132 KW / 200 HP
- Phase: (T) Three phase
- Mains Voltage: (4) 380 - 480 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H2) RFI Filter
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (C) Coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AX) No A Option
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: D3H
- Power 110% (NO) [KW]: 132
- Power 150% (HO) [KW]: 110
- Height [mm]: 909,0
- Height w/ Regen/Loadshare [mm]: 1004,0
- Width w/ no C options [mm]: 250,0
- Depth [mm]: 375,0
- Depth with Option A/B [mm]: 375,0
- Calculated Net Weight [kg]: 62
- Continuous Current (NO) [A] 3x380-440VAC: 260
- Intermittent Current (NO) [A] 3x380-440VAC: 286
- Continuous Current (NO) [A] 3x440-480VAC: 240
- Intermittent Current (NO) [A] 3x440-480VAC: 264
- Continuous Current (HO) [A] 3x380-440VAC: 212
- Intermittent Current (HO) [A] 3x380-440VAC: 318
- Continuous Current (HO) [A] 3x440-480VAC: 190
- Intermittent Current (HO) [A] 3x440-480VAC: 285
- Power Loss NO [W] 3x380-440VAC: 2954
- Power Loss NO [W] 3x440-480VAC: 2724
- Power Loss HO [W] 3x380-440VAC: 2289
- Power Loss HO [W] 3x440-480VAC: 2051
- kVA: 180
Specifications
| AC Drive: Brand | Danfoss |
| AC Drive: Series | FC-202 |
| AC Drive: Power Rating | 3 Phase |
| AC Drive: Output | 125 HP / 90 KW |
| AC Drive: Voltage | 525-690 VAC |
| AC Drive: IP Rating | IP55 |
