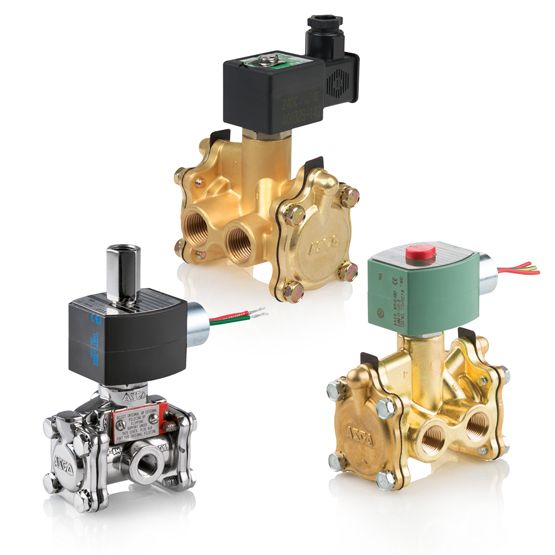

Representative photo. Please check item description for details.
316 Series 3-Way Solenoid Valve (8316), 3/8" NPT, 24 VDC, Stainless Steel, 3 Way-3/2 NC
The ASCO Series 316, also known as 8316, is a line of high-flow, 3-way solenoid valves, which can be used to pilot large actuators and provide quick closing of large control valves. The diaphragm poppet design is suitable for controlling air, inert gas and liquids. Its resilient seating achieves tight shutoff.
Features
- Body Material: Stainless Steel
- Flow (Cv) / Flow (Kv): 1.80 / 1.56
- Function: 3 way - 3/2 Normally Closed
- Pipe/Port Type & Size: NPT 3/8
- Valve Actuation: Solenoid
- Product Weight: 2.95 lbs
- Kit Number: 325074-V
- Coil Class: F
- Coil Number: 274714-909-D
- Min to Max Ambient Temperature: -20 - 149 °F
- Min to Max Fluid Temperature: -20 - 149 °F
- Orifice Size: 5/16 in
- Voltage: 24 Volts DC
- Watt Rating: 0.55 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 3/8 X 5/16 3NC SS 0.55/F DC
- Seating Elastomer: FKM
- Mounting Direction: Any:
The ASCO Series 316, also known as 8316, is a line of high-flow, 3-way solenoid valves, which can be used to pilot large actuators and provide quick closing of large control valves. The diaphragm poppet design is suitable for controlling air, inert gas and liquids. Its resilient seating achieves tight shutoff.
Features
- Body Material: Stainless Steel
- Flow (Cv) / Flow (Kv): 1.80 / 1.56
- Function: 3 way - 3/2 Normally Closed
- Pipe/Port Type & Size: NPT 3/8
- Valve Actuation: Solenoid
- Product Weight: 2.95 lbs
- Kit Number: 325074-V
- Coil Class: F
- Coil Number: 274714-909-D
- Min to Max Ambient Temperature: -20 - 149 °F
- Min to Max Fluid Temperature: -20 - 149 °F
- Orifice Size: 5/16 in
- Voltage: 24 Volts DC
- Watt Rating: 0.55 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 3/8 X 5/16 3NC SS 0.55/F DC
- Seating Elastomer: FKM
- Mounting Direction: Any:
Specifications
| Valve: Actuation | Solenoid |
| Valve: Type | Automated |
