Representative photo. Please check item description for details.

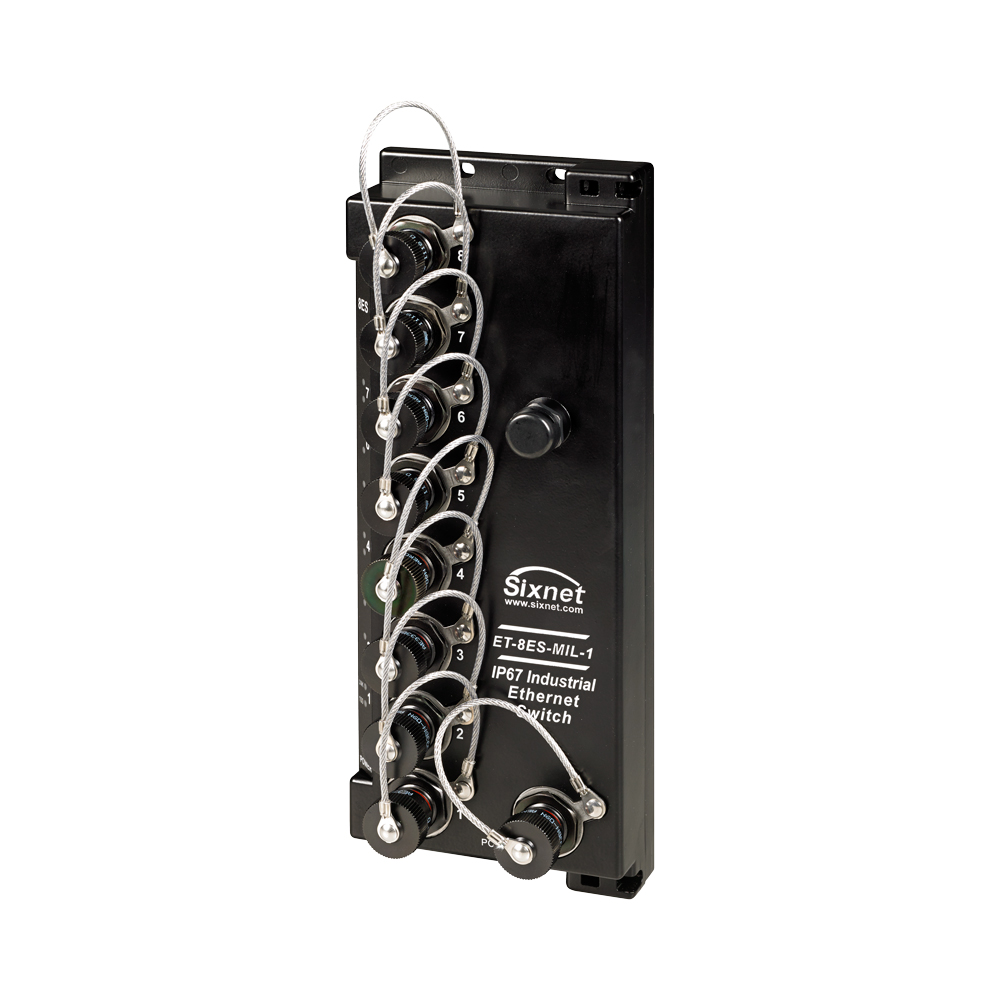

ET Series, 8-Port, Sixnet ET-8ES-MIL-1 Unmanaged Industrial Ethernet Switch
The Red Lion Sixnet® series ET industrial Ethernet switches are available with either Layer 2 managed or unmanaged network functionality in an ultra-rugged housing. Available with five or eight 10/100Base RJ-45 Ethernet connectors and include optional Gigabit and MIL-DTL-38999 series III connectors, the ET switches offer IP67/NEMA 6 protection.
Features
- Unmanaged Plug and Play Operation
- 8 Port Industrial IP67 Ethernet Switch
- Eight 10/100BaseTX with MIL-DTL-38999 series III connectors
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 75°C Operating Temperature
- >2M+ Hours MTBF
- Supports Full/Half Duplex Operation
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Surge Protection on Power Inputs
- Redundant Power Inputs (10-30 VDC)
- Rated for MIL-STD-810F, MIL-STD-461E and MIL-STD-1275B
- LED Link/Activity Status Indication
- Hardened Aluminum Enclosure with Bulkhead Mounting
The Red Lion Sixnet® series ET industrial Ethernet switches are available with either Layer 2 managed or unmanaged network functionality in an ultra-rugged housing. Available with five or eight 10/100Base RJ-45 Ethernet connectors and include optional Gigabit and MIL-DTL-38999 series III connectors, the ET switches offer IP67/NEMA 6 protection.
Features
- Unmanaged Plug and Play Operation
- 8 Port Industrial IP67 Ethernet Switch
- Eight 10/100BaseTX with MIL-DTL-38999 series III connectors
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 75°C Operating Temperature
- >2M+ Hours MTBF
- Supports Full/Half Duplex Operation
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Surge Protection on Power Inputs
- Redundant Power Inputs (10-30 VDC)
- Rated for MIL-STD-810F, MIL-STD-461E and MIL-STD-1275B
- LED Link/Activity Status Indication
- Hardened Aluminum Enclosure with Bulkhead Mounting
