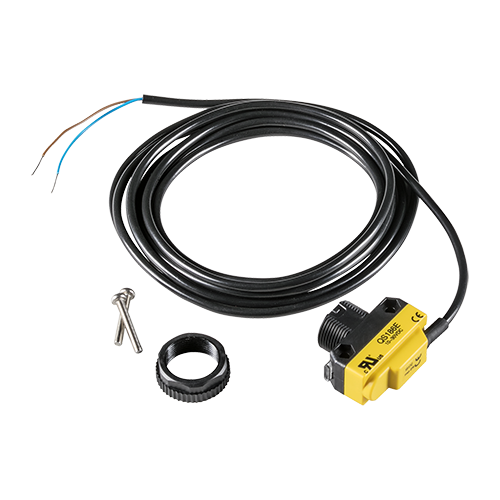

EMDC2 Series, EMDC - DC Emitter (Opposed Beam Pair)
The Models EMDC2 (Emitter) and the RCDC2 (Receiver) are miniature, DC powered, Opposed Beam photo-electric sensor pairs with a 66' (20 M) sensing range. The Emitter contains a high power modulated “infrared” LED. The Receiver contains a sensitive phototransistor and output transistor. In operation, the output will turn on when the Receiver detects that an object has broken the Emitter beam. Due to their high gain, they are ideally suited for detecting opaque objects in dirty and dusty areas or when condensation or oil film environments are present.
Features
- Opposed Beam Emitter, Requires Opposed Beam Receiver
- Infrared Modulated LED Light Beam
- 10 to 30 VDC Power
- NPN Outputs
- Various Mounting Brackets and Reflective Targets
- NEMA 6
The Models EMDC2 (Emitter) and the RCDC2 (Receiver) are miniature, DC powered, Opposed Beam photo-electric sensor pairs with a 66' (20 M) sensing range. The Emitter contains a high power modulated “infrared” LED. The Receiver contains a sensitive phototransistor and output transistor. In operation, the output will turn on when the Receiver detects that an object has broken the Emitter beam. Due to their high gain, they are ideally suited for detecting opaque objects in dirty and dusty areas or when condensation or oil film environments are present.
Features
- Opposed Beam Emitter, Requires Opposed Beam Receiver
- Infrared Modulated LED Light Beam
- 10 to 30 VDC Power
- NPN Outputs
- Various Mounting Brackets and Reflective Targets
- NEMA 6
Specifications
| Auto. Sensors: Brand | Red Lion / HMS |
| Auto. Sensors: Sensor Type | Photoelectric |
| Auto. Sensors: Function | Emitter (Opposed Beam) |
| Auto. Sensors: Connector 1 Type | Cable, 2 m |
| Auto. Sensors: Detection Range | Up to 66 ft |
