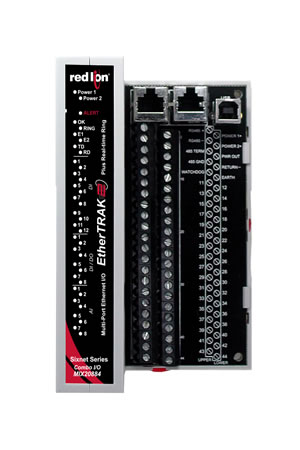

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-8 4-20mA Analog Outputs, PoE
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Analog Output Channels
- Analog output range 4-20 mA
- D/A resolution 16 bits (less than 1 uA)
- Full scale accuracy +/-0.02% (at 20°C)
- Span and offset temp. +/- 50 ppm per °C typ.
- Max. output settling time 5 ms (to .05%)
- Load resistance (@ 24 V) 0-750 Ohms
- Load resistance (@ 10V) 300 Ohms
- Current limiting short circuit protection
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
