EtherTRAK-2 I/O Series, -16 Isolated Analog Inputs (4-20mA), PoE

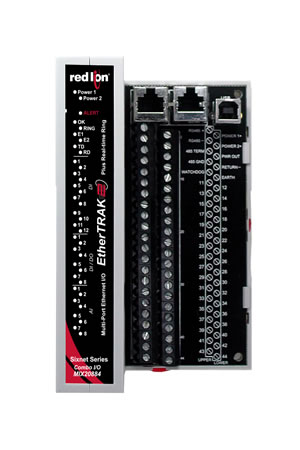

Representative photo. Please check item description for details.

EtherTRAK-2 I/O Series, -16 Isolated Analog Inputs (4-20mA), PoE

https://www.branom.com/web/image/product.template/529649/image_1920?unique=c26756c
(0 review)

Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.

Features

Analog Input Channels

  • Analog Input Range: 4-20 mA
  • A/D resolution 16 bits (0.003%)
  • Full scale accuracy +/- 0.02% (at 20 °C, 16 bit mode)
  • Temperature coefficient +/- 50 ppm per °C (span and offset)
  • Input impedance (resistance) 100 ohms
  • Protection: Self-resetting short circuit protection fuses
  • DMRR (differential mode) 66 db at 50/60 Hz
  • Fastest update time: 200 ms
  • Common mode input voltage:
    • Between two input terminals +/- 60 VDC
    • Between inputs and ground 300 volts

​Configuration

  • Configured using Sixnet I/O Tool Kit
  • Graphical User Interface (GUI)

$ 1,985.00 1985.0 USD $ 1,985.00

$ 1,985.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.

    Features

    Analog Input Channels

    • Analog Input Range: 4-20 mA
    • A/D resolution 16 bits (0.003%)
    • Full scale accuracy +/- 0.02% (at 20 °C, 16 bit mode)
    • Temperature coefficient +/- 50 ppm per °C (span and offset)
    • Input impedance (resistance) 100 ohms
    • Protection: Self-resetting short circuit protection fuses
    • DMRR (differential mode) 66 db at 50/60 Hz
    • Fastest update time: 200 ms
    • Common mode input voltage:
      • Between two input terminals +/- 60 VDC
      • Between inputs and ground 300 volts

    ​Configuration

    • Configured using Sixnet I/O Tool Kit
    • Graphical User Interface (GUI)
