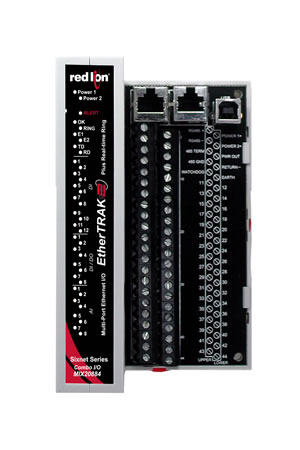

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-16 Isolated Digital Outputs, PoE
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Discrete Output Channels
- Output voltage range 10-30 VDC
- Max. output power: 1A Per channel, 16A per module, .8A at 60°C 8 channels at 24 VDC
- Max. off state leakage: 0.01 mA (less than 10 uA)
- Short circuit protection: self-reset fuses (trip above 1.5 Amp)
- Min. load: 1 mA
- Inrush current: 5 Amps (100 ms surge)
- Typical on resistance: 0.3 Ohms (Drop 0.3 VDC @ 1 Amp)
- Input isolation: 150 Volts
- All Channels Scan rate: 1 ms
- PoE power internally supplies power to module intelligence, communications, and inputs.
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
