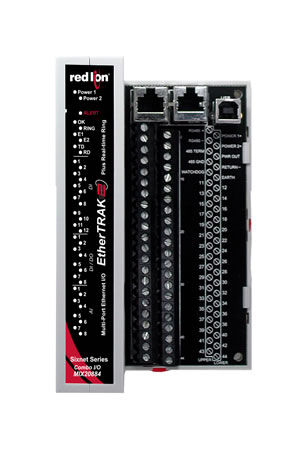

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-16 Analog Inputs/Outputs, PoE
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Analog Input Channels
- Analog Input Range: 4-20 mA
- A/D resolution: 16 bits (0.003%), 10 bits (fast option, Channels 1 and 2 only)
- Full scale accuracy +/- 0.02% (at 20 °C, 16 bit mode)
- Temperature coefficient +/- 50 ppm per °C (span and offset)
- Input impedance (resistance): 100 ohms
- Protection: Self-resetting short circuit protection fuses
- DMRR (differential mode) 66 db at 50/60 Hz
- Fastest update time [# of chan.]: 880 ms [all] -16-bit; 145 ms [all] -14-bit; 1 ms [2] -10-bit
Analog Output Channels
- Analog output range: 4-20 mA
- D/A resolution 16 bits (less than 1 uA)
- Full scale accuracy +/-0.02% (at 20°C)
- Span and offset temp. +/- 50 ppm per °C typ.
- Max. output settling time 5 ms (to .05%)
- Load resistance (@ 24 V) 0-750 Ohms
- Load resistance (@ 10V) 300 Ohms
- Current limiting short circuit protection
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Analog Input Channels
- Analog Input Range: 4-20 mA
- A/D resolution: 16 bits (0.003%), 10 bits (fast option, Channels 1 and 2 only)
- Full scale accuracy +/- 0.02% (at 20 °C, 16 bit mode)
- Temperature coefficient +/- 50 ppm per °C (span and offset)
- Input impedance (resistance): 100 ohms
- Protection: Self-resetting short circuit protection fuses
- DMRR (differential mode) 66 db at 50/60 Hz
- Fastest update time [# of chan.]: 880 ms [all] -16-bit; 145 ms [all] -14-bit; 1 ms [2] -10-bit
Analog Output Channels
- Analog output range: 4-20 mA
- D/A resolution 16 bits (less than 1 uA)
- Full scale accuracy +/-0.02% (at 20°C)
- Span and offset temp. +/- 50 ppm per °C typ.
- Max. output settling time 5 ms (to .05%)
- Load resistance (@ 24 V) 0-750 Ohms
- Load resistance (@ 10V) 300 Ohms
- Current limiting short circuit protection
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
