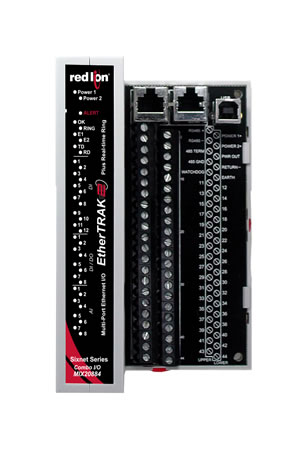

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-32 24V Digital Outputs
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Discrete Output Channels
- Output voltage range 10-30 VDC
- Max. output power: 0.5 Amps per channel, 8A per module
- Max. off state leakage: 0.01 mA (less than 10 uA)
- Short circuit protection: self-reset fuses (trip above 1.5 Amp)
- Min. load: 1 mA
- Inrush current: 5 Amps (100 ms surge)
- Typical on resistance: 0.3 Ohms (Drop 0.3 VDC @ 1 Amp)
- All channels Scan rate: 1 ms
Environmental
- Operating temperature: -40 to 75°C
- MTBF: 1,515,163 Hours GB @ 40°C per MIL-HNDBK-217F2
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
