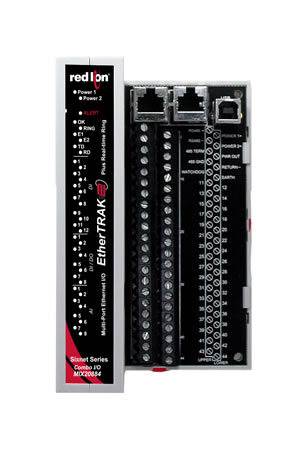

Representative photo. Please check item description for details.
EtherTRAK-2 I/O Series, Module-16 120VAC Digital Inputs
Red Lion's Sixnet series EtherTRAK-2 Ethernet enabled I/O modules provide simple and secure remote monitoring for deployments in harsh environments. EtherTRAK-2 offers a low cost per I/O point and rugged environmental ratings for reliable sensor or field data collection and communication.
Features
Discrete Input Channels
- Voltage range E2-16DIAC-D: 60 – 140 VAC
- Input Polarity: Sourcing
- Input isolation: 150 Volts (16 channel modules only)
- Guaranteed ON voltage: 55 VAC
- Guaranteed OFF voltage: 35 VAC
- Input resistance: 10 Kohms
- Input Protection: High Impedance with overvoltage protection
- Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)
- Fastest response: 25 ms (20 Hz. max. counting rate)
Environmental
- Operating temperature: -40 to 75°C
- MTBF: 1,432,797 Hours GB @ 40°C per MIL-HNDBK-217F2
Configuration
- Configured using Sixnet I/O Tool Kit
- Graphical User Interface (GUI)
