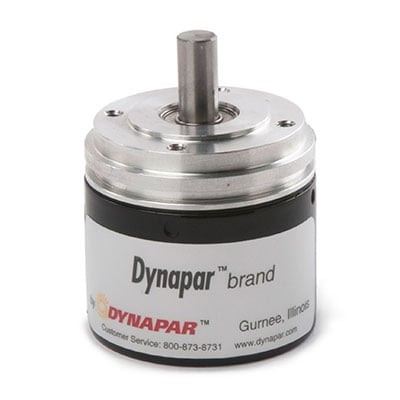

Dynapar Encoder, Bidirectional, 1000 PPR, 1/4” Shaft Sealed Bearing, Single Ended, 5 Vdc, 15FT Cable
The Series E14 is an easy-to-install, incremental encoder with the option for differential line driver outputs and an extended PPR up to 2540. The E14 is designed for commercial and industrial applications where feedback is necessary and space is minimal.
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 1.1
- Mounting Configuration: Size E14
Mechanical
- Connection Location: Radial
- Connection Type: Pigtail Cable
- Disk Material: Glass
- Flange Material: Aluminum
- Housing Material: Aluminum
- Maximum Operating Speed (RPM): 5000
- Shaft / Bore Material: Stainless Steel
- Shaft / Bore Size (mm): 6.35
- Shaft Type: Shafted
- Starting Torque (Ncm): 0.3
- Termination: 15 ft Cable
Electrical
- Duty Cycle: 45-55%
- Incremental Signal Format: A Leads B CW viewed from Shaft end of Encoder
- Incremental Signals: A, B
- Input Voltage: 5 VDC
- Line Driver Type: 7272
- Maximum Frequency Response (KHz): 100
- Output Signal: 5 VDC
- Resolution (PPR): 1000
Environmental
- Housing Protection Level: IP54
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 70
- Maximum Storage Temperature (°C): 70
- Minimum Operating Temperature (°C): 0
- Minimum Storage Temperature (°C): -25
The Series E14 is an easy-to-install, incremental encoder with the option for differential line driver outputs and an extended PPR up to 2540. The E14 is designed for commercial and industrial applications where feedback is necessary and space is minimal.
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 1.1
- Mounting Configuration: Size E14
Mechanical
- Connection Location: Radial
- Connection Type: Pigtail Cable
- Disk Material: Glass
- Flange Material: Aluminum
- Housing Material: Aluminum
- Maximum Operating Speed (RPM): 5000
- Shaft / Bore Material: Stainless Steel
- Shaft / Bore Size (mm): 6.35
- Shaft Type: Shafted
- Starting Torque (Ncm): 0.3
- Termination: 15 ft Cable
Electrical
- Duty Cycle: 45-55%
- Incremental Signal Format: A Leads B CW viewed from Shaft end of Encoder
- Incremental Signals: A, B
- Input Voltage: 5 VDC
- Line Driver Type: 7272
- Maximum Frequency Response (KHz): 100
- Output Signal: 5 VDC
- Resolution (PPR): 1000
Environmental
- Housing Protection Level: IP54
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 70
- Maximum Storage Temperature (°C): 70
- Minimum Operating Temperature (°C): 0
- Minimum Storage Temperature (°C): -25
Specifications
| Measurement Minimum | 0 |
