Dynapar ST56 Series Slim Tach Dual Outputs

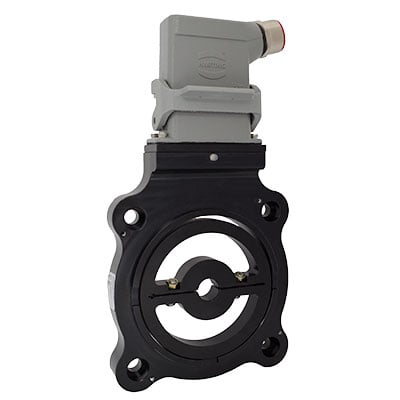

Representative photo. Please check item description for details.

Dynapar ST56 Series Slim Tach Dual Outputs

https://www.branom.com/web/image/product.template/179843/image_1920?unique=c26756c
(0 review)

Industrial Magnetic Encoder

This compact and robust industrial magnetic encoder is designed for speed and length monitoring in harsh factory environments such as paper/pulp and steel mills. It is also ideal for a variety of motor feedback applications where space is a premium.

Features

  • Feedback Type: Incremental
  • Mounting Configuration: NEMA 4.5" 56 C-Face & 140 C-Face
  • Technology Sensing Type: Magnetic - Bearingless
  • Connection Location: Radial (Dual Isolated)
  • Connection Type: Connector
  • Housing Material: Aluminum
  • Maximum Operating Speed (RPM): 7000
  • Shaft / Bore Material: Aluminum
  • Shaft / Bore Size (mm): 50.8
  • Shaft Type: Hollow Shaft
  • Termination: Latching Industrial Connector w/ 1/2" NPT
  • Duty Cycle: 35-65%
  • Incremental Signals: A, A', B, B'
  • Input Voltage: 5-26 VDC
  • Line Driver Type: IC-WE
  • Maximum Frequency Response (KHz): 120
  • Output Signal: 5-26 VDC
  • Resolution (PPR): 1024
  • Reverse Polarity Protection: Yes
  • Short Circuit Protection: Yes
  • Humidity Non-Condensing (%): 98
  • Maximum Operating Temperature (°C): 100
  • Maximum Storage Temperature (°C): 120
  • Minimum Operating Temperature (°C): -40
  • Minimum Storage Temperature (°C): -40
  • Noise Immunity Testing Specification: EN61326-1
  • Shock Resistance: 300G min.
  • Vibration Resistance: 20G, 5-2000Hz

$ 3,457.20 3457.2 USD $ 3,457.20

$ 3,457.20

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum
  • Ingress Protection

This combination does not exist.

Contact Us

Share

Industrial Magnetic Encoder

This compact and robust industrial magnetic encoder is designed for speed and length monitoring in harsh factory environments such as paper/pulp and steel mills. It is also ideal for a variety of motor feedback applications where space is a premium.

Features

  • Feedback Type: Incremental
  • Mounting Configuration: NEMA 4.5" 56 C-Face & 140 C-Face
  • Technology Sensing Type: Magnetic - Bearingless
  • Connection Location: Radial (Dual Isolated)
  • Connection Type: Connector
  • Housing Material: Aluminum
  • Maximum Operating Speed (RPM): 7000
  • Shaft / Bore Material: Aluminum
  • Shaft / Bore Size (mm): 50.8
  • Shaft Type: Hollow Shaft
  • Termination: Latching Industrial Connector w/ 1/2" NPT
  • Duty Cycle: 35-65%
  • Incremental Signals: A, A', B, B'
  • Input Voltage: 5-26 VDC
  • Line Driver Type: IC-WE
  • Maximum Frequency Response (KHz): 120
  • Output Signal: 5-26 VDC
  • Resolution (PPR): 1024
  • Reverse Polarity Protection: Yes
  • Short Circuit Protection: Yes
  • Humidity Non-Condensing (%): 98
  • Maximum Operating Temperature (°C): 100
  • Maximum Storage Temperature (°C): 120
  • Minimum Operating Temperature (°C): -40
  • Minimum Storage Temperature (°C): -40
  • Noise Immunity Testing Specification: EN61326-1
  • Shock Resistance: 300G min.
  • Vibration Resistance: 20G, 5-2000Hz

Specifications

Measurement Maximum 0
Measurement Minimum 0
Ingress Protection IP66
