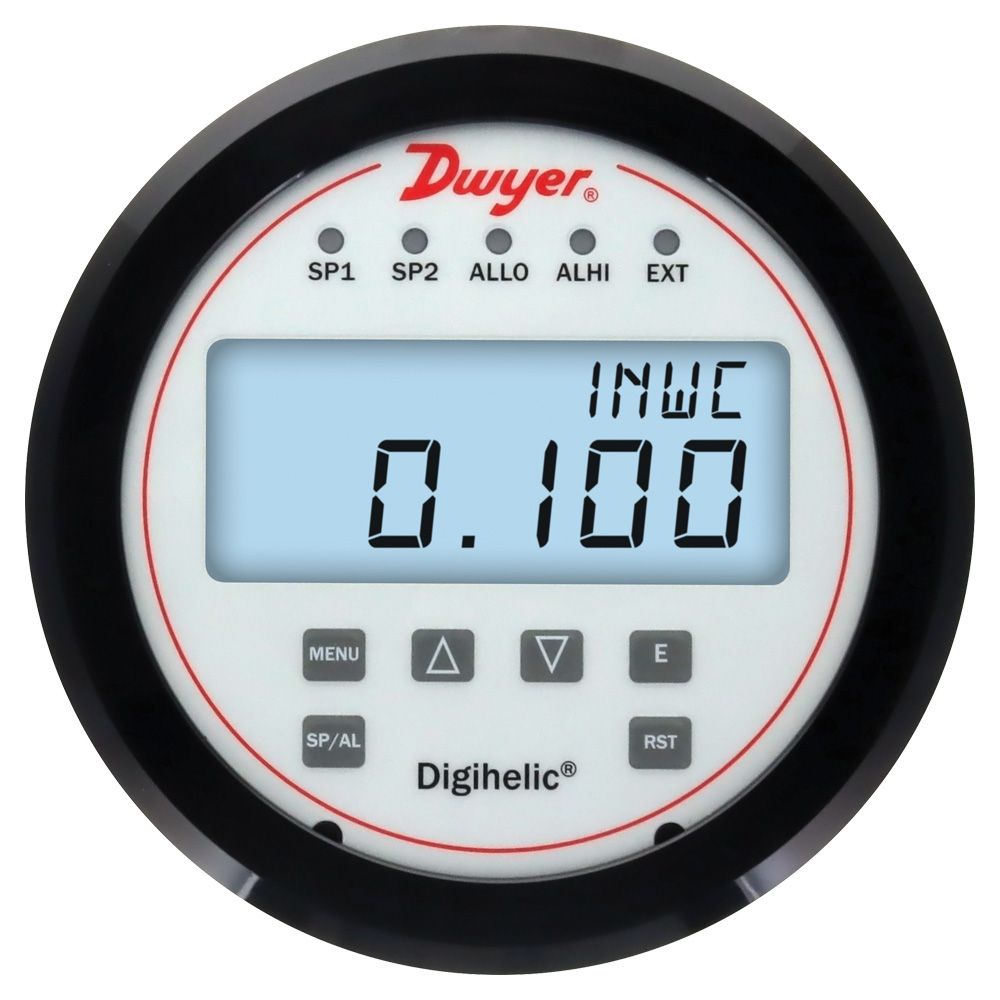

Dwyer Differntial Pressure Controller- range 10in w.c.
Representative photo. Please check item description for details.

Dwyer Differntial Pressure Controller- range 10in w.c.

https://www.branom.com/web/image/product.template/542046/image_1920?unique=c26756c
(0 review)

Housing Material
Polycarbonate.
Accuracy
±0.5% FSO for all ranges; except 0.5 in w.c. @ ±1% FSO; and ranges at or below ±0.25 in w.c. @ ±1.5% FSO.
Stability
< ±1% / year FSO.
Pressure Limits
Ranges > 1 in w.c.: 6 psi max operation; 6 psi burst; Ranges ≤ 1 in w.c.: 3.6 psi max operation; 6 psi burst.
Temperature Limits
-4 to 158°F (-20 to 70°C).
Thermal Effects
.02% FS / °F (.036% FS / °C).
Power Requirements
12-28 VDC or 12-28 VAC 50 to 400 Hz.
Power Consumption
3 VA max.
Output Signal
4-20 mA (4-wire); 0-10 V; 0-5 V; 1-5 V; and 2-10 V (4-wire).
Communication
BACnet MS/TP or Modbus® RTU.
Supported Baud Rate
9600; 19200; 38400; 57600; 76800; 115200.
Device Load
1/8 unit load.
Zero and Span Adjustments
Accessible via menus.
Response Time
400 ms (damping set to 0).
Display
Backlit LCD display; LED setpoint indicators.
Electrical Connections
15 pin male high density D-sub connection. 18" (46 cm) cable with 15 conductors included.
Process Connections
1/8" female NPT ports on side and back.
Enclosure Rating
NEMA 4X (IP66).
Mounting Orientation
Not position sensitive.
Size
5" OD (127 mm) x 1.9" (48 mm) deep
