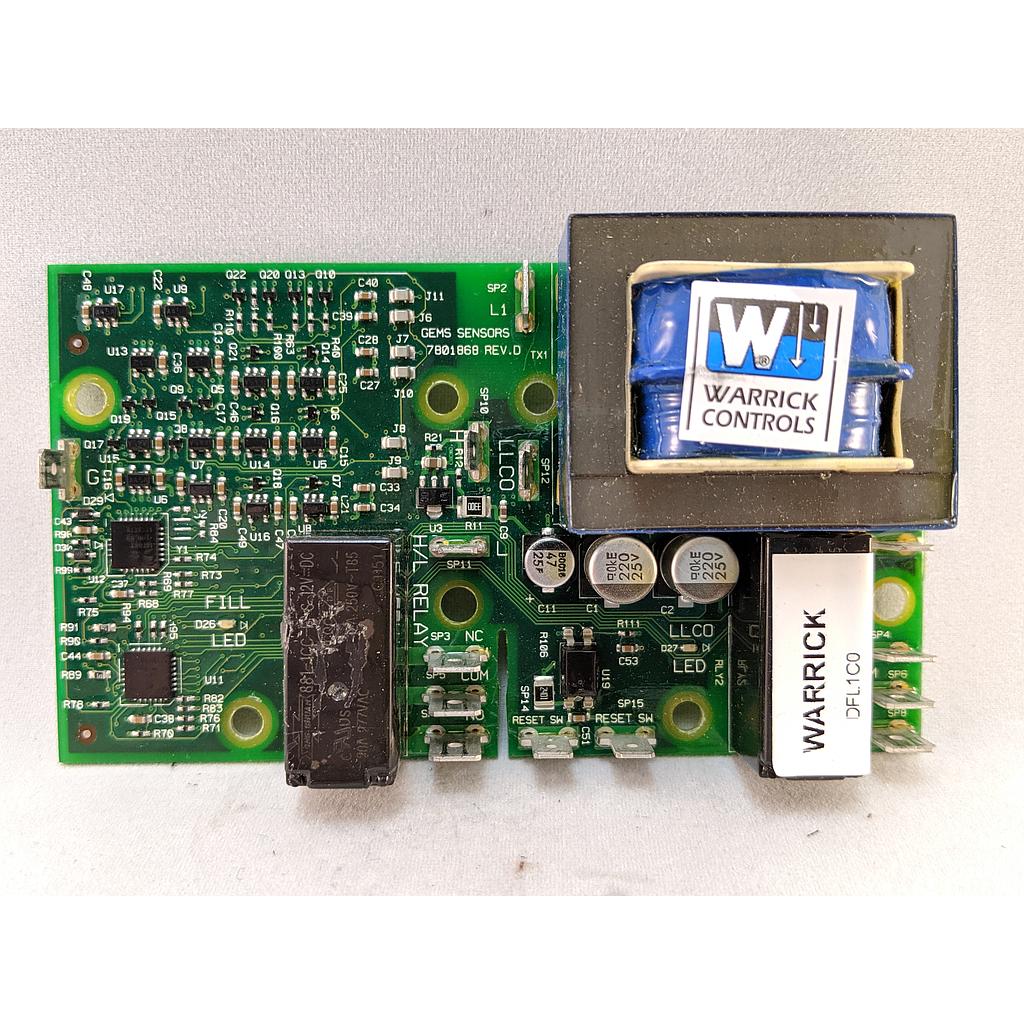

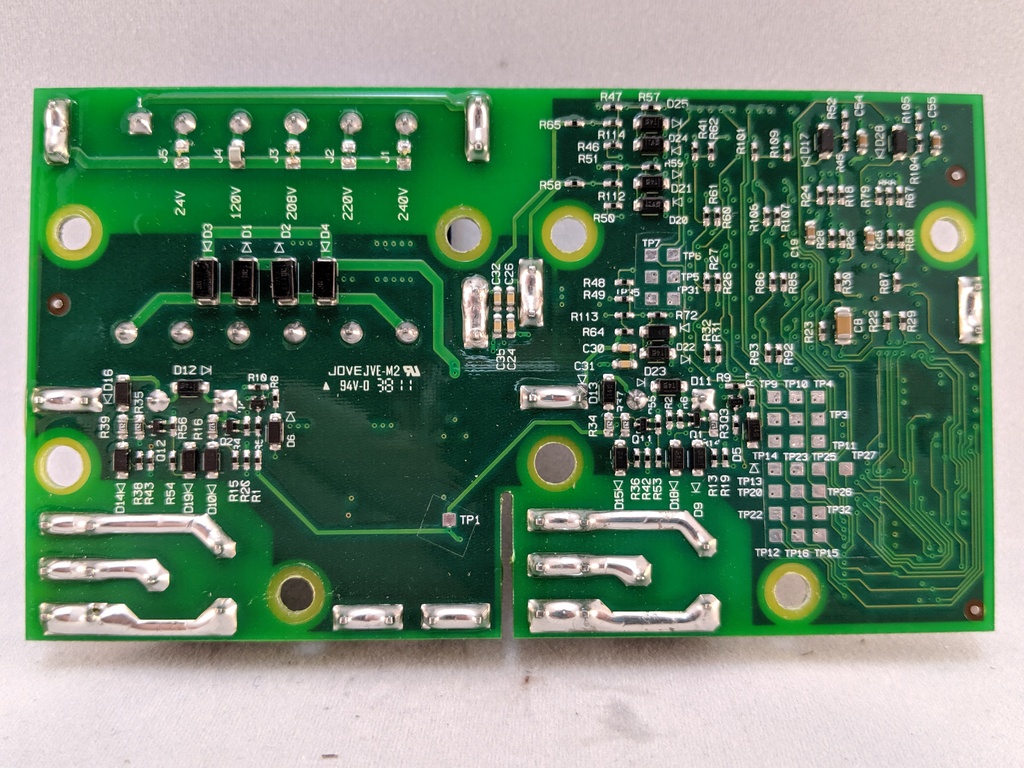

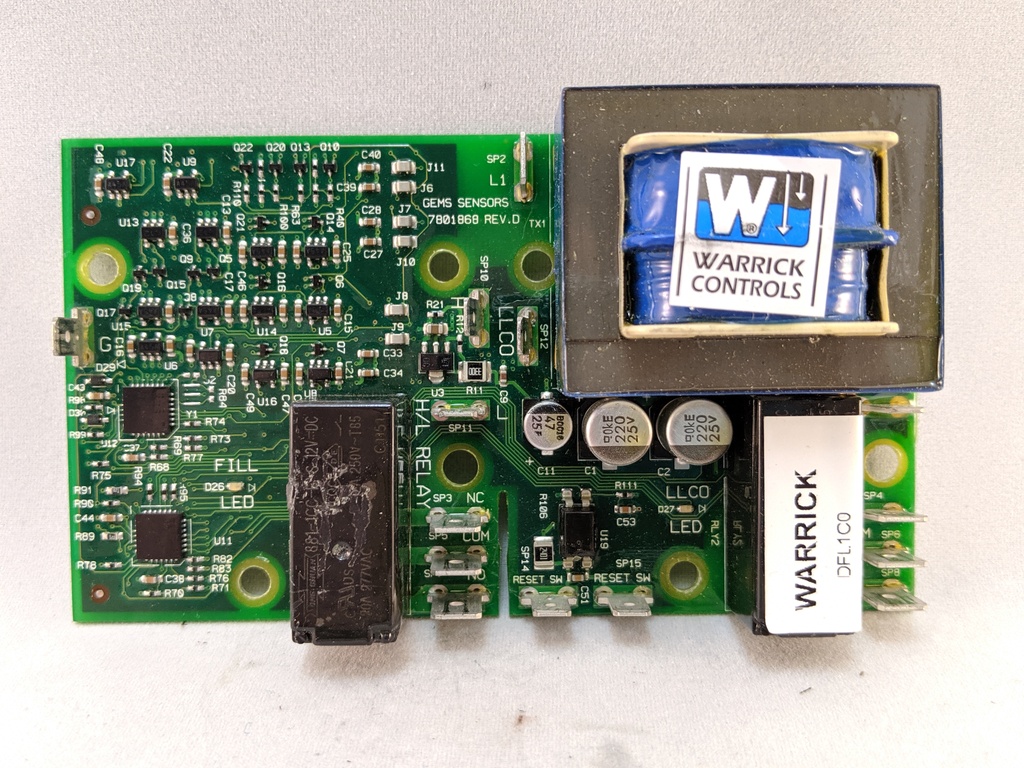

Representative photo. Please check item description for details.

DUAL FUNCTION LEVEL CONTROL 10K 120AC VOLTS SCREW MOUNT

https://www.branom.com/web/image/product.template/162304/image_1920?unique=c26756c
(0 review)

Dual function Series DF models are designed to control two independent level functions: one single-level control operation and one differential-level operation. Optional Power Outage feature resets after nuisance outages. Optional Reset Button is used

when the device has been deactivated due to low-water condition. Reset is activated only after water has returned to normal level. This control is ideal in applications on boilers, food service equipment, and chemical delivery systems.

  • Sku: DFL1C0
  • Model: DF
  • Sensor Type: Dual Funtion Controls
  • Mode Of Operation: Inverse
  • Sensitivity: 10 K ohms
  • Control Style: Open Board
  • Socket Style: N/A
  • Standoff Style: Screw Mount
  • Enclosure: N/A
  • Contact Design: 1 Normally Open & 1 Normally Closed (non-powered)
  • Contact Rating: 10 Amp Resistive 1/3 horse power
  • Supply Voltage: 120 VAC
  • Secondary Voltage: 12 VAC
  • Terminal Style: Spade Connection
  • Minimum Temperature: -40°F
  • Maximum Temperature: 150°F
  • Protection: Non-Intrinsically Safe
  • Approvals: UL 508 General Pupose: UL 353 for use in Boilers
  • Weight: 0.7

    • $ 293.30 293.3 USD $ 293.30

    $ 293.30

    Not Available For Sale

    • Measurement Minimum

    This combination does not exist.

    Contact Us

    Share

    Dual function Series DF models are designed to control two independent level functions: one single-level control operation and one differential-level operation. Optional Power Outage feature resets after nuisance outages. Optional Reset Button is used

    when the device has been deactivated due to low-water condition. Reset is activated only after water has returned to normal level. This control is ideal in applications on boilers, food service equipment, and chemical delivery systems.

  • Sku: DFL1C0
  • Model: DF
  • Sensor Type: Dual Funtion Controls
  • Mode Of Operation: Inverse
  • Sensitivity: 10 K ohms
  • Control Style: Open Board
  • Socket Style: N/A
  • Standoff Style: Screw Mount
  • Enclosure: N/A
  • Contact Design: 1 Normally Open & 1 Normally Closed (non-powered)
  • Contact Rating: 10 Amp Resistive 1/3 horse power
  • Supply Voltage: 120 VAC
  • Secondary Voltage: 12 VAC
  • Terminal Style: Spade Connection
  • Minimum Temperature: -40°F
  • Maximum Temperature: 150°F
  • Protection: Non-Intrinsically Safe
  • Approvals: UL 508 General Pupose: UL 353 for use in Boilers
  • Weight: 0.7

    • Specifications

    Measurement Minimum 0
