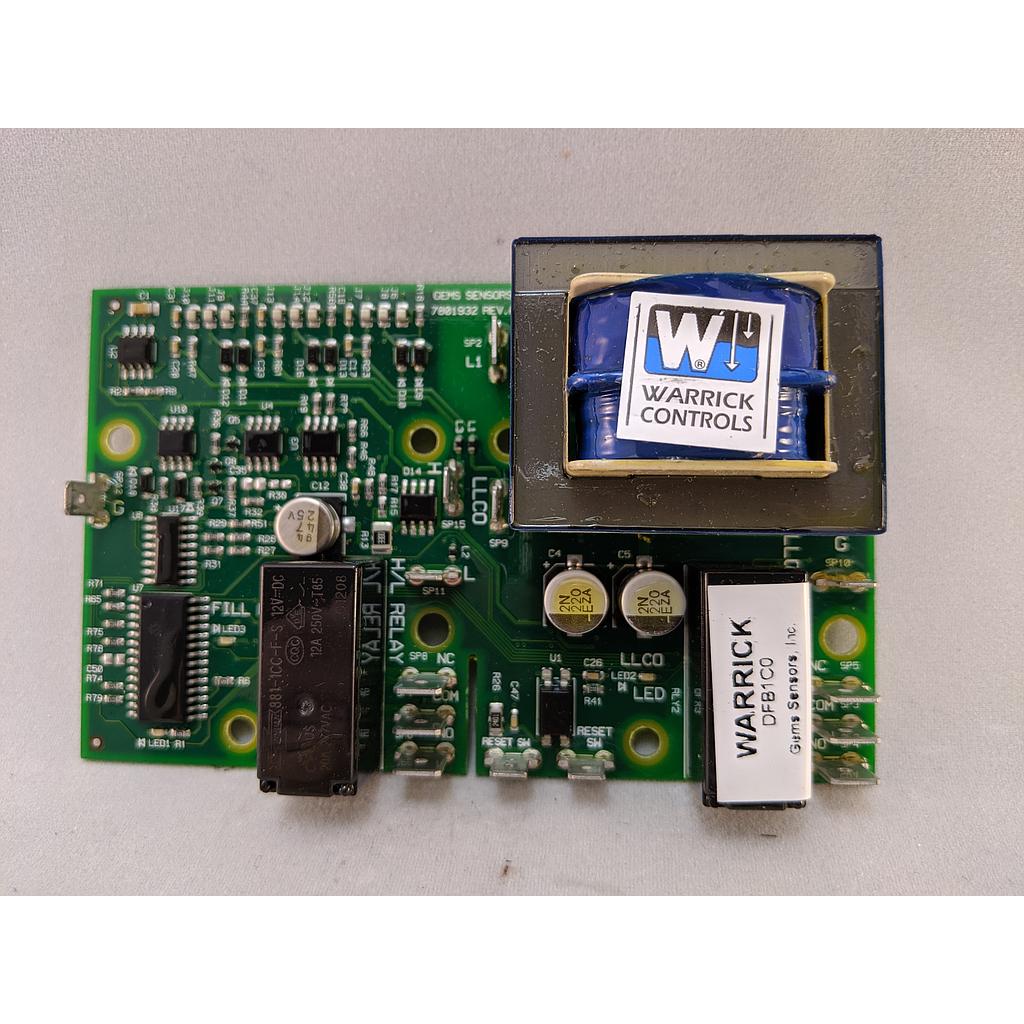

DF Dual Function Level Control, 10K Sensitivity, 1/16" Panel Standoff, 12VAC
Dual function Series DF models are designed to control two independent level functions: one single-level control operation and one differential-level operation. Optional Power Outage feature resets after nuisance outages. Optional Reset Button is used
when the device has been deactivated due to low-water condition. Reset is activated only after water has returned to normal level. This control is ideal in applications on boilers, food service equipment, and chemical delivery systems.
Sku: DFB1A0
Model: DF
Sensor Type: Dual Funtion Controls
Mode Of Operation: Direct
Sensitivity: 10 K ohms
Control Style: Open Board
Socket Style: N/A
Standoff Style: 1/16" Panel
Enclosure: N/A
Contact Design: 1 Normally Open & 1 Normally Closed (non-powered)
Contact Rating: 10 Amp Resistive 1/3 horse power
Supply Voltage: 120 VAC
Secondary Voltage: 12 VAC
Terminal Style: Spade Connection
Minimum Temperature: -40°F
Maximum Temperature: 150°F
Protection: Non-Intrinsically Safe
Approvals: UL 508 General Pupose: UL 353 for use in Boilers
Weight: 0.7
