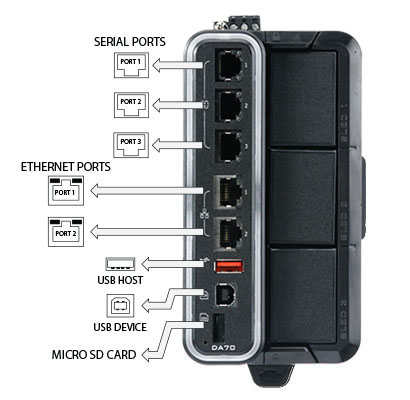

Representative photo. Please check item description for details.
DA70A FlexEdge Series, 3-Sled 1-RS232 2-RS485 Serial 1x USB No Sled No Sled Protocol Gateway
The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need.
IIoT & Protocol Conversion Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Crimson Protocol Conversion with 300 Driver Support
- IIoT Cloud Connectors
- Sled 1: 1x RS-232, 2x RS-485
- Sled 2: 1 USB Host port
- Sled 3: None
- 3 Serial Ports
- 10 I/O Modules
- 2 Ethernet Ports
- USB Device: Yes
- USB Host: Yes
The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need.
IIoT & Protocol Conversion Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Crimson Protocol Conversion with 300 Driver Support
- IIoT Cloud Connectors
- Sled 1: 1x RS-232, 2x RS-485
- Sled 2: 1 USB Host port
- Sled 3: None
- 3 Serial Ports
- 10 I/O Modules
- 2 Ethernet Ports
- USB Device: Yes
- USB Host: Yes
Specifications
| Data & Control: Brand | HMS / Red Lion |
| Data & Control: Serial Ports | 3 |
| Data & Control: Ethernet Ports | 2 |
| Data & Control: Router Type | IIoT & Protocol Conversion |
| Data & Control: Comm Sleds | 3 |
| Data & Control: I/O Modules | 10 |
| Data & Control: USB Device | Yes |
| Data & Control: USB Host | Yes |
| Data & Control: Sled 1 | 1 USB Host port |
| Data & Control: Sled 2 | None |
| Data & Control: Sled 3 | None |
