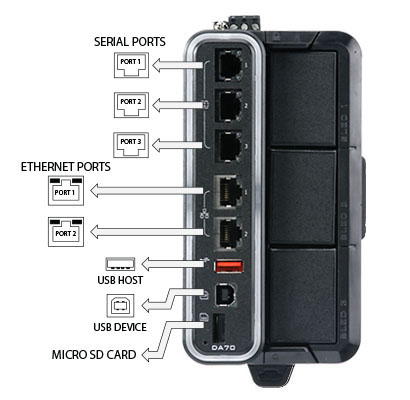

DA70A FlexEdge Series, 3-Sled 1-RS232 2-RS485 Serial 4G VZ Cell Wi-Fi J1939 Adv Automation Controller
The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need.
FlexEdge 3-Sled 1-RS232 2-RS485 Serial 4G VZ Cell Wi-Fi J1939 Adv Automation Controller��Crimson Control w/Automation Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Crimson Protocol Conversion with 300 Driver Support
- IIoT Cloud Connectors
- Data Logging, Virtual HMI, and Advanced Web Server
- Crimson Control IEC61131 programming including Ladder Logic, Function Block, Structured Text and Instruction List
- Sled 1: 1x RS-232, 2x RS-485
- Sled 2: 4G Cellular for North America - Verizon
- Sled 3: Wi-Fi
- 3 Serial Ports
- 10 I/O Modules
- 2 Ethernet Ports
- USB Device: Yes
- USB Host: Yes
The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need.
FlexEdge 3-Sled 1-RS232 2-RS485 Serial 4G VZ Cell Wi-Fi J1939 Adv Automation Controller��Crimson Control w/Automation Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Crimson Protocol Conversion with 300 Driver Support
- IIoT Cloud Connectors
- Data Logging, Virtual HMI, and Advanced Web Server
- Crimson Control IEC61131 programming including Ladder Logic, Function Block, Structured Text and Instruction List
- Sled 1: 1x RS-232, 2x RS-485
- Sled 2: 4G Cellular for North America - Verizon
- Sled 3: Wi-Fi
- 3 Serial Ports
- 10 I/O Modules
- 2 Ethernet Ports
- USB Device: Yes
- USB Host: Yes
Specifications
| Data & Control: Brand | HMS / Red Lion |
| Data & Control: Serial Ports | 3 |
| Data & Control: Ethernet Ports | 2 |
| Data & Control: Router Type | Crimson Control w/Automation |
| Data & Control: Comm Sleds | 3 |
| Data & Control: I/O Modules | 10 |
| Data & Control: USB Device | Yes |
| Data & Control: USB Host | Yes |
| Data & Control: Sled 1 | 4G Cellular for North America - Verizon |
| Data & Control: Sled 2 | Wi-Fi |
| Data & Control: Sled 3 | J1939 protocol port |
