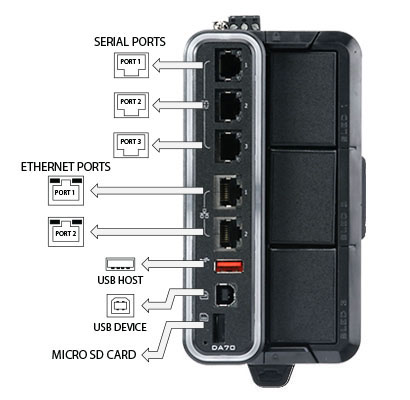

DA70A FlexEdge Series, 3-Sled 1-RS232 2-RS485 Serial 4G VZ Cell 4G EU Cell 1x USB Networking Gateway
The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need.
Advanced Networking Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Sled 1: 1x RS-232, 2x RS-485
- Sled 2: 4G Cellular for North America - Verizon
- Sled 3: 4G Cellular for EMEA
- 3 Serial Ports
- 10 I/O Modules
- 2 Ethernet Ports
- USB Device: Yes
- USB Host: Yes
The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need.
Advanced Networking Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Sled 1: 1x RS-232, 2x RS-485
- Sled 2: 4G Cellular for North America - Verizon
- Sled 3: 4G Cellular for EMEA
- 3 Serial Ports
- 10 I/O Modules
- 2 Ethernet Ports
- USB Device: Yes
- USB Host: Yes
Specifications
| Data & Control: Brand | HMS / Red Lion |
| Data & Control: Serial Ports | 3 |
| Data & Control: Ethernet Ports | 2 |
| Data & Control: Router Type | Advanced Networking |
| Data & Control: Comm Sleds | 3 |
| Data & Control: I/O Modules | 10 |
| Data & Control: USB Device | Yes |
| Data & Control: USB Host | Yes |
| Data & Control: Sled 1 | 4G Cellular for North America - Verizon |
| Data & Control: Sled 2 | 4G Cellular for EMEA |
| Data & Control: Sled 3 | 1 USB Host port |
