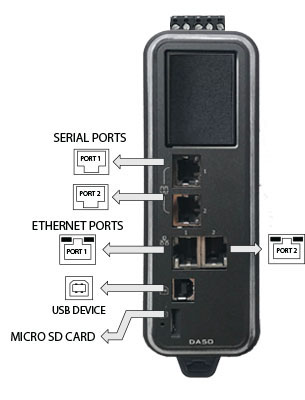

DA50A FlexEdge Series, 1-Sled Advanced Automation Controller
The DA50A features one communication sled, and on-board I/O. A variety of serial and Ethernet ports enable easy integration to any application.
Overview The DA50A’s modular design makes designing for compatibility with rapidly evolving communications standards as easy as replacing a field-installable sled. With advanced networking capabilities, IEC 61131 Crimson Control, support for 300+ industrial drivers, and IIoT Cloud connectors, communicate with most any brand of PLC or other equipment, and securely transmit data to wherever it is required. Enhanced automation capabilities include built-in data logging, virtual HMI and an advanced web server. Powered by Crimson® 3.2, it is easy to configure secure communications or robust automation capabilities in minutes. With the on-board I/O, you can enable local monitoring and control capabilities, and be notified if the status changes.
Specifications Two 10/100Base-T(X) Ethernet ports One (1) isolated RS-232 serial port One (1) isolated RS-485 serial port One (1) AI/DI, One (1) DO Onboard memory: 1 GB flash Expansion memory: Up to 256 GB, micro SD 12-24 VDC +/- 15% -40 to 75 C Operating Temperature UL Class 1, Div 2 Certification ATEX / IECEx Certification
Additional Features IP Fallback, IP Transparency, NAT, and routing capabilities VPN Client/Server capabilities with certificate generation 300+ industrial drivers to communicate with anything Point and click connectivity to IIoT cloud platforms Embedded OPC UA server and client enables seamless communication with upstream system Advanced Web Server with Javascript, Bootstrap, CSS and HMTL5 support delivers operations visibility anywhere Three widescreen virtual HMI options for remote monitoring and control Real-time data, event and security logging with cryptographic signature support Use industry-standard IEC 61131 programming languages such as ladder logic, function block, structured text and instruction list Intuitive diagnostic light ring for at-a-glance system status indication Future-proof modular design accommodates field-installable sleds 802.11 b/g/n Wi-Fi Client or Access Point (with Wi-Fi Communications Sled ) Dual SIM 4G LTE Router with Active GPS (with Cellular Communications Sled ) Dual RS-232 Serial Ports (with RS-232 Communication Sled) Dual RS-485 Serial Ports (with RS-485 Communication Sled) Mixed RS-232/RS-485 Serial Ports (with Mixed Serial Communication Sled)
Crimson Control w/Automation Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Crimson Protocol Conversion with 300 Driver Support
- IIoT Cloud Connectors
- Data Logging, Virtual HMI, and Advanced Web Server
- Crimson Control IEC61131 programming including Ladder Logic, Function Block, Structured Text and Instruction List
- Sled 1: 1x RS-232, 1x RS-485
- Sled 2: None
- 2 Serial Ports
- 0 I/O Modules
- 2 Ethernet Ports
- USB Device: No
- USB Host: Yes
The DA50A features one communication sled, and on-board I/O. A variety of serial and Ethernet ports enable easy integration to any application.
Overview The DA50A’s modular design makes designing for compatibility with rapidly evolving communications standards as easy as replacing a field-installable sled. With advanced networking capabilities, IEC 61131 Crimson Control, support for 300+ industrial drivers, and IIoT Cloud connectors, communicate with most any brand of PLC or other equipment, and securely transmit data to wherever it is required. Enhanced automation capabilities include built-in data logging, virtual HMI and an advanced web server. Powered by Crimson® 3.2, it is easy to configure secure communications or robust automation capabilities in minutes. With the on-board I/O, you can enable local monitoring and control capabilities, and be notified if the status changes.
Specifications Two 10/100Base-T(X) Ethernet ports One (1) isolated RS-232 serial port One (1) isolated RS-485 serial port One (1) AI/DI, One (1) DO Onboard memory: 1 GB flash Expansion memory: Up to 256 GB, micro SD 12-24 VDC +/- 15% -40 to 75 C Operating Temperature UL Class 1, Div 2 Certification ATEX / IECEx Certification
Additional Features IP Fallback, IP Transparency, NAT, and routing capabilities VPN Client/Server capabilities with certificate generation 300+ industrial drivers to communicate with anything Point and click connectivity to IIoT cloud platforms Embedded OPC UA server and client enables seamless communication with upstream system Advanced Web Server with Javascript, Bootstrap, CSS and HMTL5 support delivers operations visibility anywhere Three widescreen virtual HMI options for remote monitoring and control Real-time data, event and security logging with cryptographic signature support Use industry-standard IEC 61131 programming languages such as ladder logic, function block, structured text and instruction list Intuitive diagnostic light ring for at-a-glance system status indication Future-proof modular design accommodates field-installable sleds 802.11 b/g/n Wi-Fi Client or Access Point (with Wi-Fi Communications Sled ) Dual SIM 4G LTE Router with Active GPS (with Cellular Communications Sled ) Dual RS-232 Serial Ports (with RS-232 Communication Sled) Dual RS-485 Serial Ports (with RS-485 Communication Sled) Mixed RS-232/RS-485 Serial Ports (with Mixed Serial Communication Sled)
Crimson Control w/Automation Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Crimson Protocol Conversion with 300 Driver Support
- IIoT Cloud Connectors
- Data Logging, Virtual HMI, and Advanced Web Server
- Crimson Control IEC61131 programming including Ladder Logic, Function Block, Structured Text and Instruction List
- Sled 1: 1x RS-232, 1x RS-485
- Sled 2: None
- 2 Serial Ports
- 0 I/O Modules
- 2 Ethernet Ports
- USB Device: No
- USB Host: Yes
Specifications
| Data & Control: Brand | HMS / Red Lion |
| Data & Control: Serial Ports | 2 |
| Data & Control: Ethernet Ports | 2 |
| Data & Control: Router Type | Crimson Control w/Automation |
| Data & Control: Comm Sleds | 1 |
| Data & Control: I/O Modules | 0 |
| Data & Control: Sled 1 | None |
