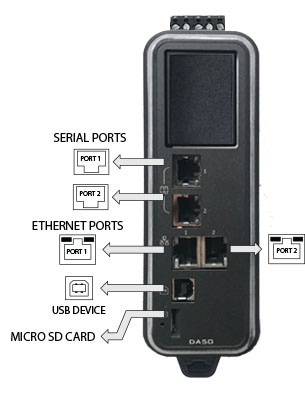

DA50A FlexEdge Series, 1-Sled Networking Gateway
The DA50A features one communication sled, and on-board I/O. A variety of serial and Ethernet ports enable easy integration to any application.
Overview The DA50A’s modular design makes designing for compatibility with rapidly evolving communications standards as easy as replacing a field-installable sled. With advanced networking capabilities including routing, a stateful firewall, IPSec, VRRP, and OpenVPN support, adding secure communications is easy. With the on-board I/O, you can enable local monitoring and control capabilities, and be notified if the status changes.
Specifications Two 10/100Base-T(X) Ethernet ports One (1) isolated RS-232 serial port One (1) isolated RS-485 serial port One (1) AI/DI, One (1) DO Onboard memory: 1 GB flash Expansion memory: Up to 256 GB, micro SD 12-24 VDC +/- 15% -40 to 75 C Operating Temperature UL Class 1, Div 2 Certification ATEX / IECEx Certification
Additional Features IP Fallback, IP Transparency, NAT, and routing capabilities VPN Client/Server capabilities with certificate generation Intuitive diagnostic light ring for at-a-glance system status indication Future-proof modular design accommodates field-installable sleds 802.11 b/g/n Wi-Fi Client or Access Point (with Wi-Fi Communications Sled ) Dual SIM 4G LTE Router with Active GPS (with Cellular Communications Sled )
Advanced Networking Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Sled 1: 1x RS-232, 1x RS-485
- Sled 2: None
- 2 Serial Ports
- 0 I/O Modules
- 2 Ethernet Ports
- USB Device: No
- USB Host: Yes
The DA50A features one communication sled, and on-board I/O. A variety of serial and Ethernet ports enable easy integration to any application.
Overview The DA50A’s modular design makes designing for compatibility with rapidly evolving communications standards as easy as replacing a field-installable sled. With advanced networking capabilities including routing, a stateful firewall, IPSec, VRRP, and OpenVPN support, adding secure communications is easy. With the on-board I/O, you can enable local monitoring and control capabilities, and be notified if the status changes.
Specifications Two 10/100Base-T(X) Ethernet ports One (1) isolated RS-232 serial port One (1) isolated RS-485 serial port One (1) AI/DI, One (1) DO Onboard memory: 1 GB flash Expansion memory: Up to 256 GB, micro SD 12-24 VDC +/- 15% -40 to 75 C Operating Temperature UL Class 1, Div 2 Certification ATEX / IECEx Certification
Additional Features IP Fallback, IP Transparency, NAT, and routing capabilities VPN Client/Server capabilities with certificate generation Intuitive diagnostic light ring for at-a-glance system status indication Future-proof modular design accommodates field-installable sleds 802.11 b/g/n Wi-Fi Client or Access Point (with Wi-Fi Communications Sled ) Dual SIM 4G LTE Router with Active GPS (with Cellular Communications Sled )
Advanced Networking Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Sled 1: 1x RS-232, 1x RS-485
- Sled 2: None
- 2 Serial Ports
- 0 I/O Modules
- 2 Ethernet Ports
- USB Device: No
- USB Host: Yes
Specifications
| Data & Control: Brand | HMS / Red Lion |
| Data & Control: Serial Ports | 2 |
| Data & Control: Ethernet Ports | 2 |
| Data & Control: Router Type | Advanced Networking |
| Data & Control: Comm Sleds | 1 |
| Data & Control: I/O Modules | 0 |
| Data & Control: Sled 1 | None |
