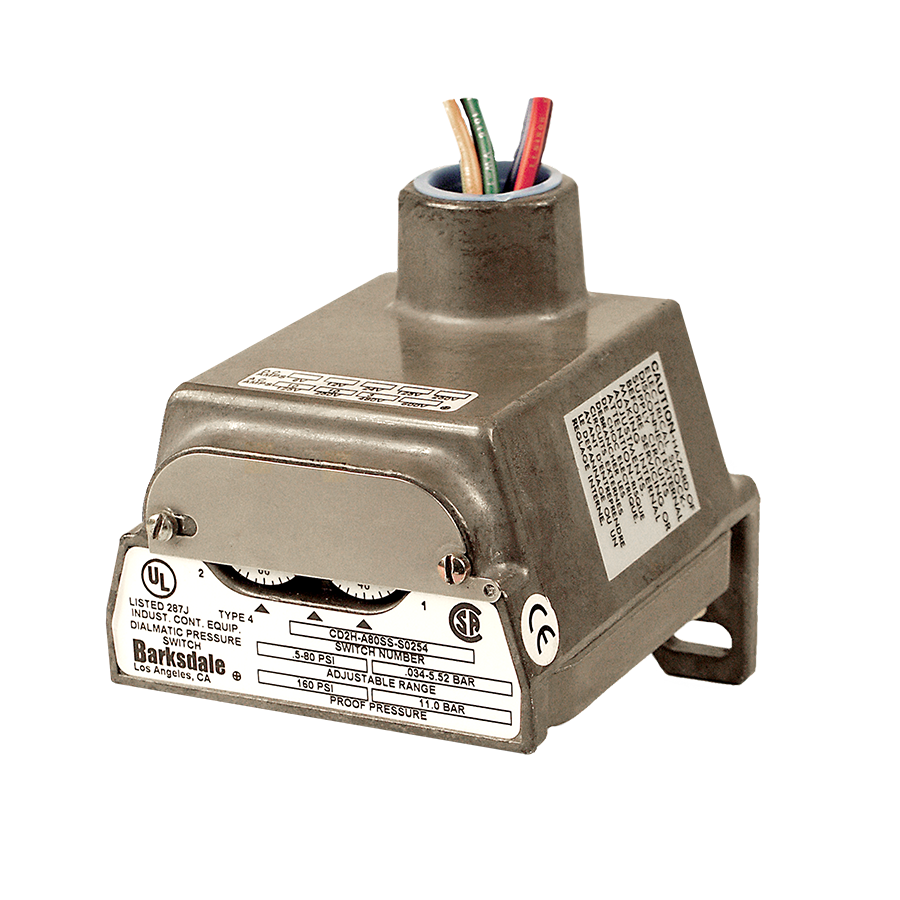

Representative photo. Please check item description for details.
Barksdale D2H Diaphragm Pressure Switch, Dual Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; .5 A @ 24 VDC, 0.5-80PSI, 1/4"NPTF, UL Approved
NEMA 4 housing, tamper-proof external adjustment dials, vacuum ranges from .06 - 30 inches Hg. Accuracy of +/-.5% of range. With tamper-proof external adjustment.
Description
| Type | : | Diaphragm Switch |
| Series | : | D2H |
| Measuring Range | : | .5 to 80 psi |
| Connection Size | : | 1/4 npt female |
| Switch Contact | : | SPDT dual setpoint housed |
| Electrical Rating | : | Nema 4 125-250, 480 VAC |
| Accuracy | : | +- .5% approximate deadband 1.6-3.4 psi |
| Temperature Rating | : | -40 to 165 deg F |
| Material | : | anodized aluminum |
| Finish | : | 304 SS wetted parts, 17-7 PH SS diaphragm |
NEMA 4 housing, tamper-proof external adjustment dials, vacuum ranges from .06 - 30 inches Hg. Accuracy of +/-.5% of range. With tamper-proof external adjustment.
Description
| Type | : | Diaphragm Switch |
| Series | : | D2H |
| Measuring Range | : | .5 to 80 psi |
| Connection Size | : | 1/4 npt female |
| Switch Contact | : | SPDT dual setpoint housed |
| Electrical Rating | : | Nema 4 125-250, 480 VAC |
| Accuracy | : | +- .5% approximate deadband 1.6-3.4 psi |
| Temperature Rating | : | -40 to 165 deg F |
| Material | : | anodized aluminum |
| Finish | : | 304 SS wetted parts, 17-7 PH SS diaphragm |
