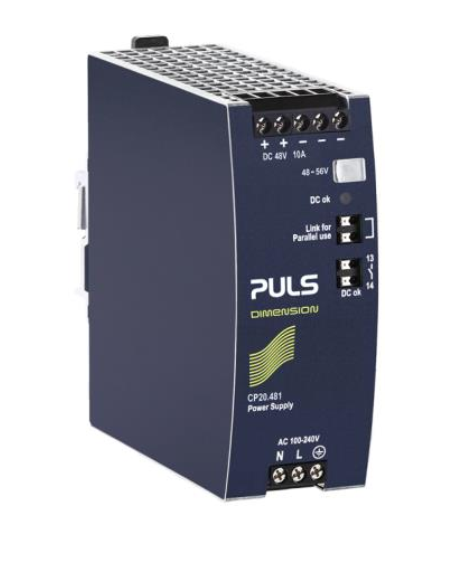

PULS Power Supply, 480W, 100-240VAC 1PH, 48-56VDC, 10-8.6A
The Puls CP20.481 is a compact DIN rail power supply that delivers 48V DC output at 10A. It's designed for industrial applications requiring a high-power 48V supply. This unit offers high efficiency and reliable performance in a space-saving design.
Features
- AC 100-240 V wide-range input
- Width only 48 mm
- Efficiency up to 96.3 %
- Excellent partial load efficiency
- 20 % Output power reserves
- Safe HiccupPLUS overload mode
- Easy fuse breaking – 3 times nominal current for 12 ms
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25 °C and +60 °C
- DC-OK relay contact
- Current sharing feature for parallel use
The Puls CP20.481 is a compact DIN rail power supply that delivers 48V DC output at 10A. It's designed for industrial applications requiring a high-power 48V supply. This unit offers high efficiency and reliable performance in a space-saving design.
Features
- AC 100-240 V wide-range input
- Width only 48 mm
- Efficiency up to 96.3 %
- Excellent partial load efficiency
- 20 % Output power reserves
- Safe HiccupPLUS overload mode
- Easy fuse breaking – 3 times nominal current for 12 ms
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25 °C and +60 °C
- DC-OK relay contact
- Current sharing feature for parallel use
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Input Voltage | 100-240 VAC |
