Watlow 6" 150Lb Flanged Circulation Heater, 240V/10Kw, 17.875" Element Insertion Length, 15 Elements
Circ Flange Voltage: 240
Circ Flange Wattage: 10,000
Watt Density: 16.4

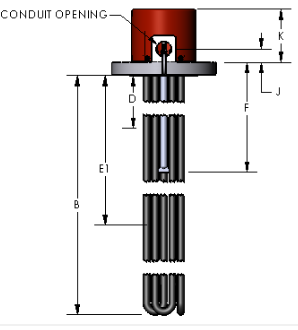

B Dimension (Immersed element length): 17.8750
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 1
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Sheath Passivation? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Use a Stainless Steel tank? No
Nameplate Part Number: CFPN717R12XS
Circ Flange Voltage: 240
Circ Flange Wattage: 10,000
Watt Density: 16.4
B Dimension (Immersed element length): 17.8750
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 1
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Sheath Passivation? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Use a Stainless Steel tank? No
Nameplate Part Number: CFPN717R12XS
Specifications
| Process Connection Type | ASME 150# |
| Measurement Minimum | 0 |
