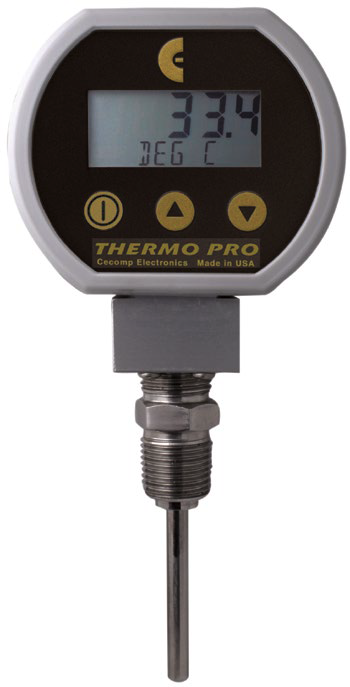

Cecomp T16B Series ThermoPro Battery Powered Temperature Indicator

Features

Specify RTD length
Specify fixed or spring-loaded RTD
Selectable °F, °C, or K temperature range
- –58.0°F to 392.0°F or
- –50.0°C to 200.0°C
Battery life to 1000 hrs
BL red LED display backlight battery life up to 750 hrs
Includes 2 AA batteries
Choose auto shutoff time
- -5 five minutes (default if not specified)
- -10 ten minutes
- -30 thirty minutes
- -ON on/off only
See data sheet for complete model numbers
Powered by two AA batteries (included)
Configurable auto shutoff time
Selectable °F, °C or K
Configurable min/max memory
Able to retain min/max if power is off
Pass code protected setup and calibration
0.1 degree display resolution
4 digit display
Precision 100 Ohm RTD element
NEMA 4X housing
316 stainless steel probe
1/2" NPT fitting for standard thermowells
Spring-loaded probe available for use with thermowells
1 year warranty

Display	Standard, [BL] Backlight
Probe Dimensions	[2] 2.5" L, 1/4" dia 1/2" NPT, [4] 4" L, 1/4" dia, 1/2" NPT, [6] 6" L, 1/4" dia, 1/2" NPT, [9] 9" L, 1/4" dia, 1/2" NPT, [12] 12" L, 1/4" dia, 1/2" NPT
Probe Type	Fixed RTD, [S] Spring-Loaded RTD for use in a Thermowell
Auto Shutoff Time	[5] 5 Minutes (Default), [10] 10 Minutes, [30] 30 Minutes, [ON] None - On/Off Button Only
Optional Circuit Board Coating	Without, [CC] Moisture Resistant
