Representative photo. Please check item description for details.

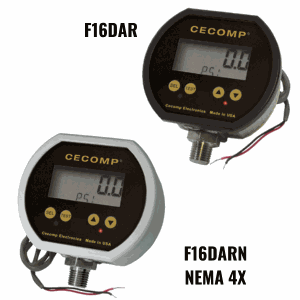

Cecomp F16DAR Series Pressure Gauge w/2 SPDT Alarm Relays and Analog Output
Features
- Vacuum to 5000 psi ranges
- Absolute reference available
- All common engineering units available: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2
- Choose analog output type
- -V for 0-2 volt
- -BV for ±2 volt option for bipolar or compound
- -I for 4-20 mA
- mA output powers current loop
- Two programmable SPDT alarm relays
- Programmable alarm types: 1% deadband or adjustable hysteresis
- LED alarm indicators
- Front buttons for setpoints and calibration
- Programmable analog output range
- Output test function for analog output and relays
- Powered by 8-24 VAC or 9-32 VDC
- ±0.25% test gauge accuracy
- Optional ±0.1% accuracy
- 4 digit display
- 316 stainless steel sensor
- Optional display backlighting
- 1 year warranty
Features
- Vacuum to 5000 psi ranges
- Absolute reference available
- All common engineering units available: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2
- Choose analog output type
- -V for 0-2 volt
- -BV for ±2 volt option for bipolar or compound
- -I for 4-20 mA
- mA output powers current loop
- Two programmable SPDT alarm relays
- Programmable alarm types: 1% deadband or adjustable hysteresis
- LED alarm indicators
- Front buttons for setpoints and calibration
- Programmable analog output range
- Output test function for analog output and relays
- Powered by 8-24 VAC or 9-32 VDC
- ±0.25% test gauge accuracy
- Optional ±0.1% accuracy
- 4 digit display
- 316 stainless steel sensor
- Optional display backlighting
- 1 year warranty
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Cecomp F16DAR Series | |
|---|---|
| Housing | Standard, [N] NEMA 4X |
| Display | Standard, [BL] Backlight |
| Unit of Measure | psig, psia, psi vac, atma, atmg, atm vac, bara, barg, bar vac, cmH₂Oa, cmH₂Og, cmH₂O vac, ftH₂O, g/cm²a, g/cm²g, g/cm² vac, inH₂Oa, inH₂Og, inH₂O vac, inHga, inHgg, inHg vac, inHg/psi, kg/cm²a, kg/cm²g, kg/cm² vac, kPaa, kPag, kPa vac, mbara, mbarg, mbar vac, mmH₂Og, mmHga, mmHgg, mmHg vac, MPag, oz/in²a, oz/in²g, oz/in² vac, torra, torr vac |
| Range | 3 psig, 5 psig, 15 psia, 15 psi vac, ±15 psig, 15 psig, 30 psia, 30 psig, 60 psig, 100 psia, -15V100 psig, 100 psig, -15V200 psig, 200 psig, 300 psig, 500 psig, 1000 psig, 2000 psig, 3000 psig, 5000 psig, -30V15 psig, -30V100 psig, -30V200 psig, 6 inHgg, 10 inHgg, 30 inHga, 30 in Hgvac, ±30 inHgg, 30 inHgg, 60 inHga, 60 inHgg, 120 inHgg, 200 inHga, -30V200 inHgg, 200 inHgg, -30V400 inHgg, 400 inHgg, 600 inHgg, 1000 inHgg, 2000 inHgg, 4000 inHgg, 6100 inHgg, 30 inHg vac, 760 torra, 760 torr vac, 1600 torra, 50 oz/in²g, 80 oz/in²g, 240 oz/in²a, 235 oz/in² vac, ±240 oz/in²g, 240 oz/in²g, 480 oz/in²a, 480 oz/in²g, 960 oz/in²g, -235V1600 oz/in²g, 1600 oz/in²a, 1600 oz/in²g, -235V3200 oz/in²g, 3200 oz/in²g, 4800 oz/in²g, 150 mmHgg, 260 mmHgg, 760 mmHga, 760 mmHg vac, ±760 mmHgg, 760 mmHgg, 1600 mmHga, 1600 mmHgg, 3100 mmHgg, 5200 mmHga, -760V5200 mmHgg, 5200 mmHgg, 85 inH₂Og, 140 inH₂Og, 400 inH₂Oa, 400 inH₂O vac, ±400 inH₂Og, 400 inH₂Og, 850 inH₂Oa, 850 inH₂Og, 1700 inH₂Og, 2800 inH₂Oa, -400V2800 inH₂Og, 2800 inH₂Og, -400V5500 inH₂Og, 5500 inH₂Og, 7 ftH₂O, 12 ftH₂O, 35 ftH₂O, 70 ftH₂O, 140 ftH₂O, 230 ftH₂O, 480 ftH₂O, 700 ftH₂O, 1150 ftH₂O, 2300 ftH₂O, 4600 ftH₂O, 6900 ftH₂O, 2100 mmH₂Og, 3500 mmH₂Og, 20 kPag, 35 kPag, 100 kPaa, 100 kPa vac, ±100 kPag, 100 kPag, 200 kPaa, 200 kPag, 400 kPag, 700 kPaa, 700 kPag, -100V700 kPag, 1400 kPag, -100V1400 kPag, 2000 kPag, 3500 kPag, 7000 kPag, -0.1V0.7 MPag, 0.7 MPag, -0.1V1.4 MPag, 1.4 MPag, 2 MPag, 3.5 MPag, 7 MPag, 14 MPag, 20 MPag, 35 MPag, 210 cmH₂Og, 350 cmH₂Og, 1000 cmH₂Oa, 1000 cmH₂O vac, ±1000 cmH₂Og, 1000 cmH₂Og, 2100 cmH₂Oa, 2100 cmH₂Og, 4200 cmH₂Og, 7000 cmH₂Oa, 7000 cmH₂Og, 1 atma, 1 atm vac, ±1 atmg, 1 atmg, 2 atma, 2 atmg, 4 atmg, 7 atma, 7 atmg, -1V7 atmg, 14 atmg, -1V14 atmg, 20 atmg, 34 atmg, 70 atmg, 135 atmg, 200 atmg, 340 atmg, 200 mbarg, 350 mbarg, 1000 mbara, 1000 mbar vac, ±1000 mbarg, 1000 mbarg, 2000 mbara, 2000 mbarg, 4100 mbarg, 7000 mbara, 7000 mbarg, 1 bara, 1 bar vac, ±1 barg, 1 barg, 2 bara, 2 barg, 4 barg, 7 bara, 7 barg, -1V7 barg, 14 barg, -1V14 barg, 20 barg, 35 barg, 70 barg, 140 barg, 200 barg, 350 barg, 200 g/cm²g, 350 g/cm²g, 1000 g/cm²a, 1000 g/cm² vac, ±1000 g/cm²g, 1000 g/cm²g, 2100 g/cm²a, 2100 g/cm²g, 4200 g/cm²g, 7000 g/cm²a, 7000 g/cm²g, 1 kg/cm²a, 1 kg/cm² vac, ±1 kg/cm²g, 1 kg/cm²g, 2 kg/cm²a, 2 kg/cm²g, 4 kg/cm²g, 7 kg/cm²a, 7 kg/cm²g, -1V7 kg/cm²g, 14 kg/cm²g, -1V14 kg/cm²g, 20 kg/cm²g, 35 kg/cm²g, 70 kg/cm²g, 140 kg/cm²g, 200 kg/cm²g, 350 kg/cm²g |
| Output Characteristics | [I] Current output, 4-20 mA DC, Output drive [compliance] determined by power source, 6,553 counts over sensor range, [V] Voltage output, 0-2 VDC into 5k ohm or greater, 6,553 counts over sensor range, [BV] Bipolar voltage output [–2 - 0 - 2 V] for ±15 psig sensor only, ±2 VDC into 5k ohm or greater, 13,107 counts over sensor range |
| Optional High Accuracy | Without, [HA] High Accuracy, ±0.1% |
| Optional Front Cover | Without, [MC] Metal Front Cover |
| Optional Circuit Board Coating | Without, [CC] Moisture Resistant |
| Optional Panel Mount | Without, [PM] Panel Mount, 4.1" x 4.1" |
| Optional Top Gauge Port | Without, [TP] Top Gauge Port |
| Optional Certification | Without, [NC] NIST Traceability Certificate, 5 Test Points, Test Date |
| Gauge Features | |
|---|---|
| Gauge: Brand | Cecomp |
| Gauge: Type | Digital Gauge |
