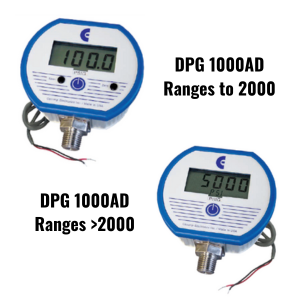

Cecomp DPG1000AD Series Low Voltage Powered Digital Pressure Gauge | Branom Instrument Company

Features

Powered by 8-24 VAC or 9-32 VDC
±0.25% test gauge accuracy
Optional ±0.1% accuracy
316 stainless steel sensor
Optional display backlighting
Vacuum to 5000 psi ranges
Absolute reference available
All common engineering units available: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2
Ideal for permanent installations where gauge is on at all times
Front pots for zero and span calibration
1 year warranty

Alternative Products

Specifications

Cecomp DPG1000AD / F4AD Series
Display	Standard, [BL] Backlight
Unit of Measure	psig, psia, psi vac, atma, atmg, atm vac, bara, barg, bar vac, cmH₂Oa, cmH₂Og, cmH₂O vac, ftH₂O, g/cm²a, g/cm²g, g/cm² vac, inH₂Oa, inH₂Og, inH₂O vac, inHg/psig, inHga, inHgg, inHg vac, kg/cm²a, kg/cm²g, kg/cm² vac, kPaa, kPag, kPa vac, mbara, mbarg, mbar vac, mmH₂Og, mmHga, mmHgg, mmHg vac, MPag, oz/in²a, oz/in²g, oz/in² vac, torra, torrg, torr vac
Range	3 psig, 5 psig, 15 psia, 15 psi vac, ±15 psig, 15 psig, 30 psia, 30 psig, 60 psig, 100 psia, -15V100 psig, 100 psig, -15V200 psig, 200 psig, 300 psig, 500 psig, 1000 psig, 2000 psig, 3000 psig, 5000 psig, -30V15 psig, -30V100 psig, -30V200 psig, 6 inHgg, 10 inHgg, 30 inHga, 30 inHg vac, ±30 inHgg, 30 inHgg, 60 inHga, 60 inHgg, 120 inHgg, 200 inHga, -30V200 inHgg, 200 inHgg, -30V400 inHgg, 400 inHgg, 600 inHgg, 1000 inHgg, 2000 inHgg, 50 oz/in²g, 80 oz/in²g, 240 oz/in²a, 240 oz/in² vac, ±240 oz/in²g, 240 oz/in²g, 480 oz/in²a, 480 oz/in²g, 960 oz/in²g, 1600 oz/in²g, 85 inH₂Og, 140 inH₂Og, 400 inH₂Oa, 400 inH₂O vac, ±400 inH₂Og, 400 inH₂Og, 850 inH₂Oa, 850 inH₂Og, 1660 inH₂Og, 7 ftH₂O, 12 ftH₂O, 35 ftH₂O, 70 ftH₂O, 140 ftH₂O, 200 ftH₂O, 480 ftH₂O, 700 ftH₂O, 1150 ftH₂O, 760 torra, ±760 torrg, 760 torr vac, 1600 torra, 150 mmHgg, 260 mmHgg, 760 mmHga, 760 mmHg vac, ±760 mmHgg, 760 mmHgg, 1600 mmHga, 1600 mmHgg, 200 mbarg, 350 mbarg, 1000 mbara, 1000 mbar vac, ±1000 mbarg, 1000 mbarg, 2000 mbara, 2000 mbarg, 1 bara, 1 bar vac, ±1 barg, 1 barg, 2 bara, 2 barg, 4 barg, 7 bara, 7 barg, -1V7 barg, 14 barg, -1V14 barg, 20 barg, 35 barg, 70 barg, 140 barg, 200 barg, 350 barg, 2000 mmH₂Og, 200 cmH₂Og, 350 cmH₂Og, 1000 cmH₂Oa, 1000 cmH₂O vac, ±1000 cmH₂Og, 1000 cmH₂Og, 2000 cmH₂Oa, 2000 cmH₂Og, 1 atma, 1 atm vac, ±1 atmg, 1 atmg, 2 atma, 2 atmg, 4 atmg, 7 atma, 7 atmg, 14 atmg, 20 atmg, 34 atmg, 70 atmg, 135 atmg, 200 atmg, 340 atmg, 20 kPag, 35 kPag, 100 kPaa, 100 kPa vac, ±100 kPag, 100 kPag, 200 kPaa, 200 kPag, 400 kPag, 700 kPaa, 700 kPag, -100V700 kPag, 1400 kPag, -100V1400 kPag, 2000 kPag, 1.4 MPag, -0.1V1.4 MPag, 2 MPag, 3.5 MPag, 7 MPag, 14 MPag, 20 MPag, 35 MPag, 200 g/cm²g, 350 g/cm²g, 1000 g/cm²a, 1000 g/cm² vac, ±1000 g/cm²g, 1000 g/cm²g, 2000 g/cm²a, 2000 g/cm²g, 1 kg/cm²a, 1 kg/cm² vac, ±1 kg/cm²g, 1 kg/cm²g, 2 kg/cm²a, 2 kg/cm²g, 4 kg/cm²g, 7 kg/cm²a, 7 kg/cm²g, -1V7 kg/cm²g, 14 kg/cm²g, -1V14 kg/cm²g, 20 kg/cm²g, 35 kg/cm²g, 70 kg/cm²g, 140 kg/cm²g, 200 kg/cm²g, 350 kg/cm²g
Optional Front Cover	Without, [MC] Metal Front Cover
Optional Circuit Board Coating	Without, [CC] Moisture Resistant
Optional Case Stiffener	Without, [CS] Case Stiffener
Optional Top Gauge Port	Without, [TP] Top Gauge Port
Optional Panel Mount	Without, [PM] Panel Mount, 4.1" x 4.x"
Optional Certification	Without, [NC] NIST Traceability Certificate, 5 Test Points, Test Date

Gauge Features
Gauge: Brand	Cecomp
Gauge: Type	Digital Gauge
