  3. Barksdale CD1H Diapgragm Pressure Switch, Single Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; .5 A @ 24 VDC, 0.3 to 3 psi (0.06 to 6 inHg), 1/4" NPTF
Public Pricelist (v2)

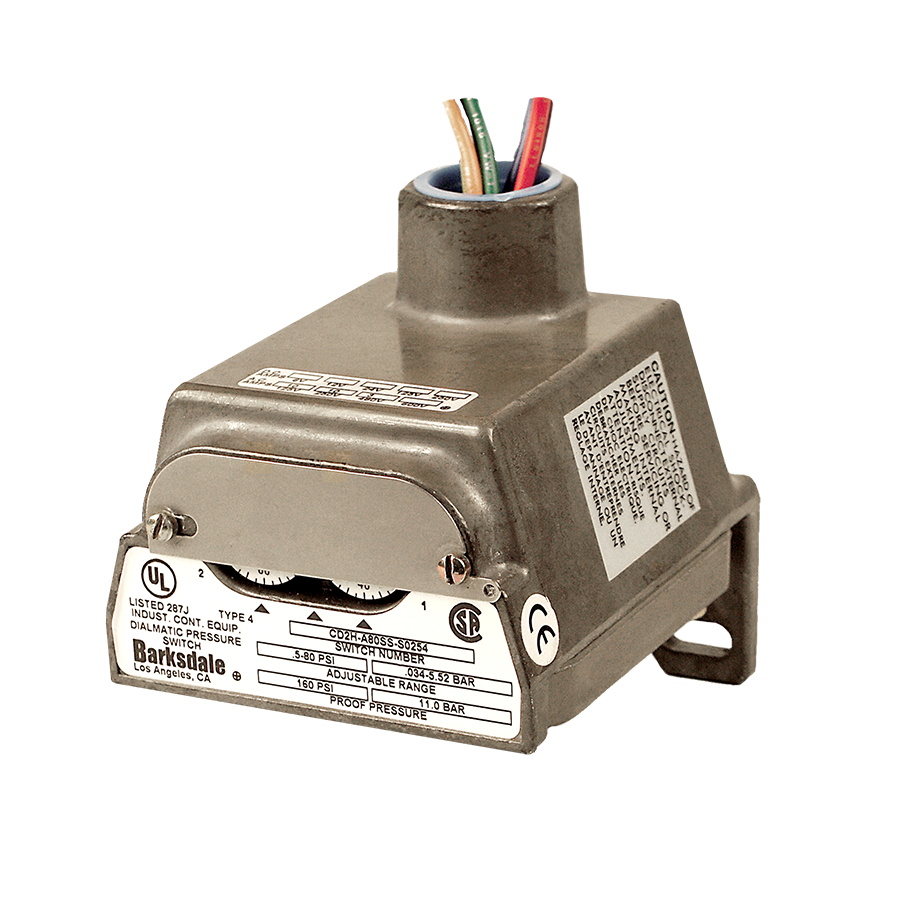

Representative photo. Please check item description for details.

Barksdale CD1H Diapgragm Pressure Switch, Single Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; .5 A @ 24 VDC, 0.3 to 3 psi (0.06 to 6 inHg), 1/4" NPTF

https://www.branom.com/web/image/product.template/543439/image_1920?unique=c26756c
(0 review)

NEMA 4 housing, tamper-proof external adjustment dials, vacuum ranges from .06 - 30 inches Hg. Accuracy of +/-.5% of range. With tamper-proof external adjustment.

Description

Barksdale's CD1H and CD2H Housed Diaphragm Pressure Switches provide an ideal solution for pressure control applications requiring tamper proof external adjustment and environments , which require watertight NEMA 4 housings. These pressure switches are available in single or dual control settings for both positive pressure and vacuum models, to 150 psi. These snap-action switches may be wired normally open or normally closed through a 3/4"-14 NPT conduit connector to free leads to 18". All models feature self-locking set screw adjustment and dials, which are calibrated for increasing setting. For applications requiring a highly accurate switch in a durable package, Barksdale's CD1H and CD2H Housed Diaphragm Pressure Switches are the ideal choice. Stripped models are also available.

Features
  • Hermetically sealed
  • Explosion proof housing for hazardous location
  • Tamper proof set point adjustment
  • Ideal for pressure or vacuum
  • UL, CSA, ATEX approved
  • NEMA 4, 7,9 & IP66
Applications
  • Medical
  • Water equipment
  • Food & beverage
  • Air proving in HVAC systems
  • Engine monitoring
  • Factory automation

$ 538.89 538.89 USD $ 538.89

$ 538.89

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
