Kobold - BGF Horizontal All-Metal Armored Variable Area Flow Meter
Representative photo. Please check item description for details.

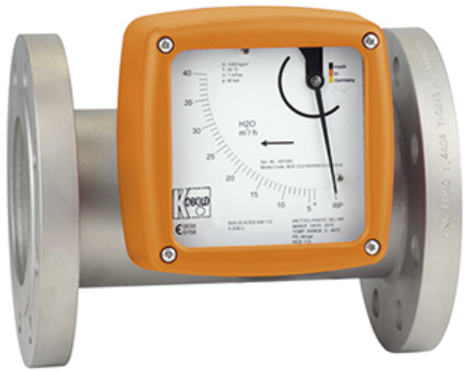

Kobold - BGF Horizontal All-Metal Armored Variable Area Flow Meter

https://www.branom.com/web/image/product.template/544044/image_1920?unique=c26756c
(0 review)

Measuring Range: 0.264...2.64 GPM
Wetted Materials: SS 316-L/316-TI; with PTFE Lining
Process Connection: 3/4" Class 150 RF ASME Flange
Magnet Bearer: PTFE
Flow Direction: L - Left to Right
Heating/Cooling: None
Certificates: None
Display: Stainless Steel Housing
Scale: Measuring Range, Water
Transmitter: ES with HART, EEx ia, 4-20mA, SIL-1
Accessories: None
Temp Range: -40...392 F
Max Pressure: 230 PSIG
Protection: IP 65
Accuracy: +/- 1.6% Full Scale
Repeatability: +/- 0.5% Full Scale


$ 7,537.00 7537.0 USD $ 7,537.00

$ 7,537.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Measuring Range: 0.264...2.64 GPM
    Wetted Materials: SS 316-L/316-TI; with PTFE Lining
    Process Connection: 3/4" Class 150 RF ASME Flange
    Magnet Bearer: PTFE
    Flow Direction: L - Left to Right
    Heating/Cooling: None
    Certificates: None
    Display: Stainless Steel Housing
    Scale: Measuring Range, Water
    Transmitter: ES with HART, EEx ia, 4-20mA, SIL-1
    Accessories: None
    Temp Range: -40...392 F
    Max Pressure: 230 PSIG
    Protection: IP 65
    Accuracy: +/- 1.6% Full Scale
    Repeatability: +/- 0.5% Full Scale
