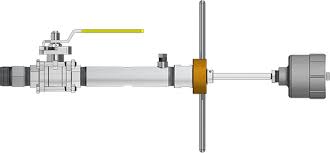

Barben 546 Performance Series pH/ORP Sensor, PVDF Kynar Body, Viton Extreme O-Ring, 3/4 NTP Threaded Inline, 0.5 in Insertion, 15 ft Cable
The Model 547 is a replaceable, cartridge style sensor. It is designed to fit into a variety of sensor holders for direct insertion into the process. When used with a metallic sheath the 547 sensor can provide variable insertion depth for hot tap ball valve installations as well as the ability to withstand pressures up to 2500 PSIG with Barben’s high pressure housing assembly.
Features
- Body: PVDF Kynar
- O-Ring Seal: Viton Extreme
- Body Style: 3/4" MNPT Thread Inline/Submerged, Kynar/PEEK High Pressure for valve insertion available to 300 psig
- Measuring Electrode: Ruggedized, Hemispherical Glass (0 - 14 pH) 15 to 130°C (59 to 266°F)
- Tip Configuration: Flush, No Tip Protection
- Temp Compensation: None
- Body Options: Standard 546
- Insertion Depth: 0.5"
- Cabe Configuration: 15 ft Hi-temp, Lo-Loss TPE Cable
- Reference Wire: On coax shield
- Lead Terminations: Wire Ferrules Coax, NO TC
