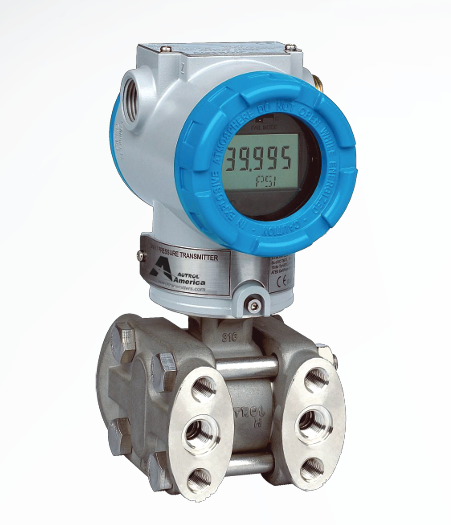

APT 3100 Smart Differential Pressure Transmitter
More Options Available on Request! See Datasheet for More Details.
The APT 3100 Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable configuration of multiple parameters, communication with HART protocol. The application is very various, as measuring liquid, gas or steam flow as well as pressure and liquid level by application method. All sensor data is input, modified and stored in EEPROM.
Features
- Flexible Sensor Input: DP, GP, AP, HP
- Various Output: 4-20mA, Digital Signals
- Setting Various Parameters: Zero/Span, Trim, Unit, Fail-mode, etc.
- Self Diagnostic Function: Sensor, Memory A/D Converter, Power, etc.
- Digital Communication with HART protocol
- Explosion-proof Approval & Intrinsic Safety Approval : ATEX, FM, FMCanada, GOST, KOSHA, KTL, etc.
- Marine Certificate: ABS, LR, BR, DNV
More Options Available on Request! See Datasheet for More Details.
The APT 3100 Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable configuration of multiple parameters, communication with HART protocol. The application is very various, as measuring liquid, gas or steam flow as well as pressure and liquid level by application method. All sensor data is input, modified and stored in EEPROM.
Features
- Flexible Sensor Input: DP, GP, AP, HP
- Various Output: 4-20mA, Digital Signals
- Setting Various Parameters: Zero/Span, Trim, Unit, Fail-mode, etc.
- Self Diagnostic Function: Sensor, Memory A/D Converter, Power, etc.
- Digital Communication with HART protocol
- Explosion-proof Approval & Intrinsic Safety Approval : ATEX, FM, FMCanada, GOST, KOSHA, KTL, etc.
- Marine Certificate: ABS, LR, BR, DNV
Specifications
| Pressure Range / Min Span / Max Span | [D2] -6 to 6 inH2O / .3 inH2O / 6 inH2O, [D3] -30 to 30 in H20 / .6 inH20 / .30 inH20, [D4] -149 to 150 inH20 / 1.5 inH20 / 150 inH20, [D5] -749 to 750 inH20 / 7.5 inH20 / 750 inH20, [D6] -100 to 100 psi / 1 psi / 100 psi, [D7] -300 to 300 psi / 3 psi / 300 psi, [D8] -1000 to 1000 psi / 10 psi / 1000 psi |
| Optional Configuration / Calibration | Standard, [FC] Factory Configured to Customer Specified Measurement Range (No Cert), [CC] Custom Calibration with Certificate |
| Optional Manifold | Without, [3WF] 3 Way, T Type Flange, [5WF] 5 Way, T Type Flange |
| Optional Mounting Bracket | Without, [BA] Universal Angle Bracket Kit, 316 SS, [BF] Universal Flat Bracket Kit, 316 SS |
| Description | 4-20 mA Output / HART Loop Powered, 2000 PSI Max Working Pressure, IP66/67, NEMA 4X, ± 0.075% Accuracy, Programmable, -104 to 248°F Process Temp Limit |
| Flange/Drain/Diaphragm Material | [M11] 316 SST |
| Hazardous Area Approval | [F1] FM/FMC Explosion proof (for USA & Canada) Class I/II/III, Division 1 & 2 |
| Fill Fluid | [1] DC Silicone 200, -40 to 400 F |
| Process Connection | [S] 1/4" - 14 NPT-Female |
| Electrical Connection/Housing | [1] 1/2" - 14 NPT-Female, Epoxy Coated Aluminum |
| Indication | [M1] LCD Display |
| Lightening Protector | [LP] Internal Type |
