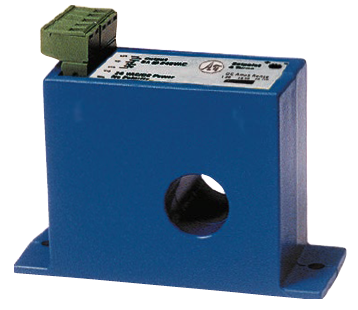

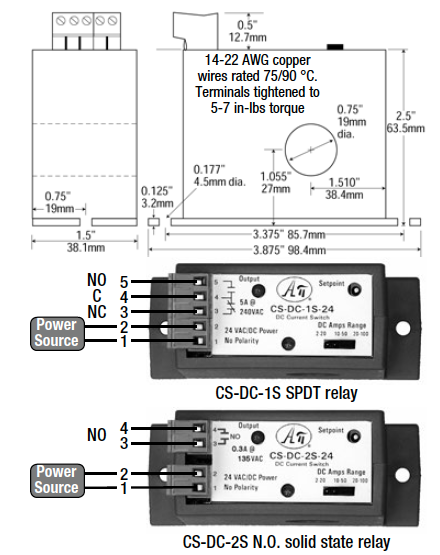

API CS-DC Series AC/DC Current Switch, Solid Core
The CS-DC-1S has a SPDT relay, and the CS-DC-2S has a normally open (NO) solid state relay (AC or DC). They have a hall effect sensor, signal conditioner, and limit alarm in one compact package.
The user can set the desired current range by changing a jumper. The trip point potentiometer can be set to any value between 2 Amps and 100 Amps, and when exceeded, will activate either a relay output or solid state output, depending on the model.
They can be mounted in virtually any position and either panel mounted using the built-in mounting bracket or hung directly on the wire to be measured and secured with a wire tie.
A green LED indicates “power on” and a red LED will activate when the alarm setpoint has been exceeded. 5% setpoint hysteresis is used to prevent false trips or “chattering” of the output.
Features
Low Voltage AC/DC Powered
0.15 A Solid State Switch or 5 A Relay
Adjustable 2 to 100 Amp Setpoint
LED Power and Status Indicators
The CS-DC-1S has a SPDT relay, and the CS-DC-2S has a normally open (NO) solid state relay (AC or DC). They have a hall effect sensor, signal conditioner, and limit alarm in one compact package.
The user can set the desired current range by changing a jumper. The trip point potentiometer can be set to any value between 2 Amps and 100 Amps, and when exceeded, will activate either a relay output or solid state output, depending on the model.
They can be mounted in virtually any position and either panel mounted using the built-in mounting bracket or hung directly on the wire to be measured and secured with a wire tie.
A green LED indicates “power on” and a red LED will activate when the alarm setpoint has been exceeded. 5% setpoint hysteresis is used to prevent false trips or “chattering” of the output.
Features
Low Voltage AC/DC Powered
0.15 A Solid State Switch or 5 A Relay
Adjustable 2 to 100 Amp Setpoint
LED Power and Status Indicators
Specifications
| Relay | [1S] SPDT Mechanical Relay, [2S] Normally Open Isolated Solid State Switch |
| Power | [12] 12 VAC/VDC, [24] 24 VAC/VDC |
