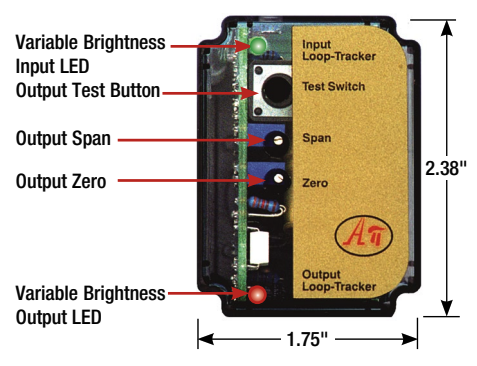

API 4003GI Series Potentiometer Input to DC Transmitter, Fully Isolated

https://www.branom.com/web/image/product.template/533909/image_1920?unique=c26756c
(0 review)

Features

  • 6 Year Warranty on API Modules
  • LoopTracker® I/O LEDs
  • Hot-Swappable Plug-In Design
  • Zero and Span Output Calibration
  • Push to Test Output
  • Full I/O/Power Isolation

$ 345.94 345.942 USD $ 384.38

$ 384.38

Not Available For Sale

  • Power
  • Input
  • DC Output Range
  • Optional Moisture Resistance

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Features

  • 6 Year Warranty on API Modules
  • LoopTracker® I/O LEDs
  • Hot-Swappable Plug-In Design
  • Zero and Span Output Calibration
  • Push to Test Output
  • Full I/O/Power Isolation

Specifications

Power 115 VAC ±10%, 50/60 Hz, 2.5 W max., [A230] 230 VAC ±10%, 50/60 Hz, 2.5 W max., [D] 9-30 VDC, 2.5 W typical, [P] 85-265 VAC 50/60 Hz, 60-300 VDC 2.5 W typ.
DC Output Range 0-1 V to ±10 VDC, 0-1 mA to 0-20 mADC, 4-20 mA
Optional Moisture Resistance Without, [U] Conformal Coating
Input Any Full-Range Potentiometer up to 1 MegaOhm
